CAT. No. AA0472

Low Cost Mains Powered Stereo Amplifier
product image thumb
product image thumb

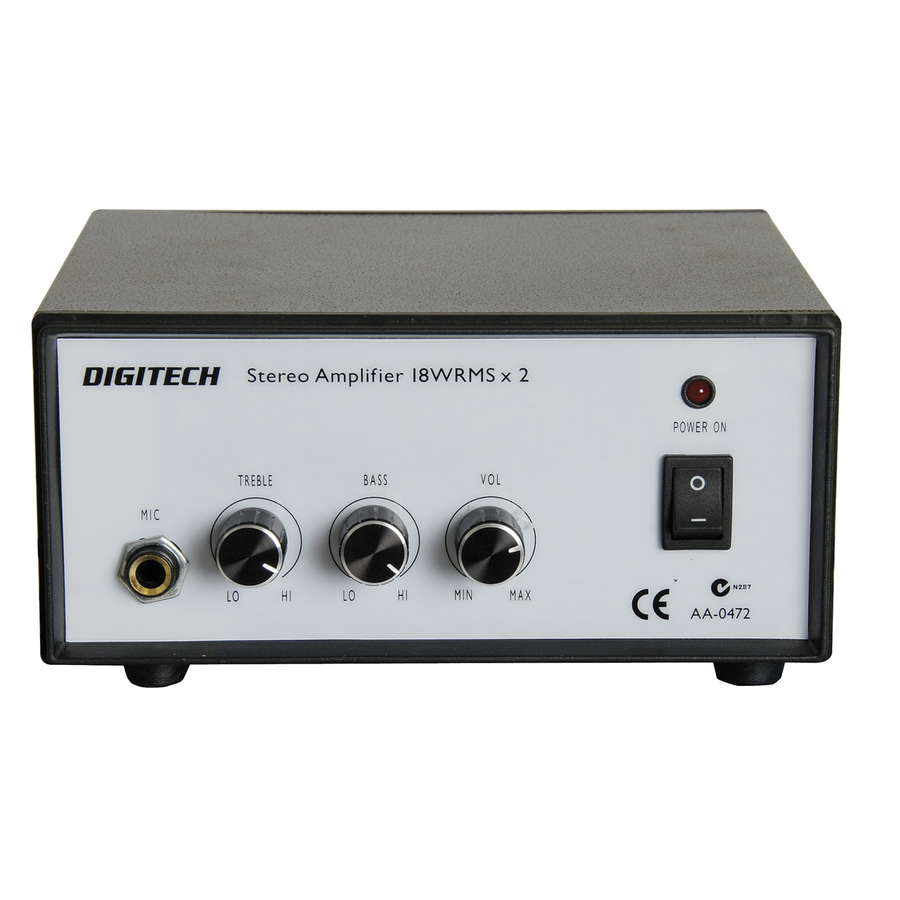

Low Cost Mains Powered Stereo Amplifier

$79.95
This is a simple and sturdy 18W per channel 240V transistor amplifier ideal for public announcements, music plus more, and it's surprisingly loud!
Available

Description

1 Year Warranty
240V Mains Power

This is a simple, fairly bullet-proof 18W/channel transistor amp and its surprisingly loud! It is ideal as a small office or workshop PA amp in churches, community halls etc. It is protected from accidental speaker wiring shorts and if abused will simply shut down and reset after it has cooled off. It has a front panel microphone input, bass & treble controls as well as a master volume control.

It is housed in a sturdy metal cabinet designed to take modest knocks and scratches. On the rear panel are left & right push down wire entry speaker terminals and a single right/left set of line level RCA sockets (if you want extra line level inputs we suggest you use the PA-3560 or PA-3570 double adaptors).

Specifications:
* S/N: 106dB @ 15W
94dB @ 1W
* Operating Temperature: 0-50 degrees C
Suitable microphones are: AM-4088, AM-4090, AM-4098

    Specifications

    Audio Amplifier


    Distortion (THD) <
    0.08%
    Number of Channels
    2ch
    Volume Control
    Signal to Noise Ratio
    60dB
    Power Per Channel (WRMS)
    18W
    Tone Control
    UHF Frequency Range
    50Hz-18Hz
    Amplifier Type
    Stereo
    Nominal Impedance at Rated Power
    4?

    Power from Plugpack


    AC Plugpack Voltage
    240V

    Operating Temperature


    Operating Temperature
    50°C

    Product Dimensions


    Length
    170mm
    Height
    157mm
    Width
    77mm

    Packaged Dimensions


    Packaged Length
    18cm
    Packaged Width
    10cm
    Packaged Weight
    1.766kg
    Packaged Volume
    3.816l
    Packaged Height
    21.2cm

    Product Availability


    Availability
    Stocked item
    Warranty: 12 Months
