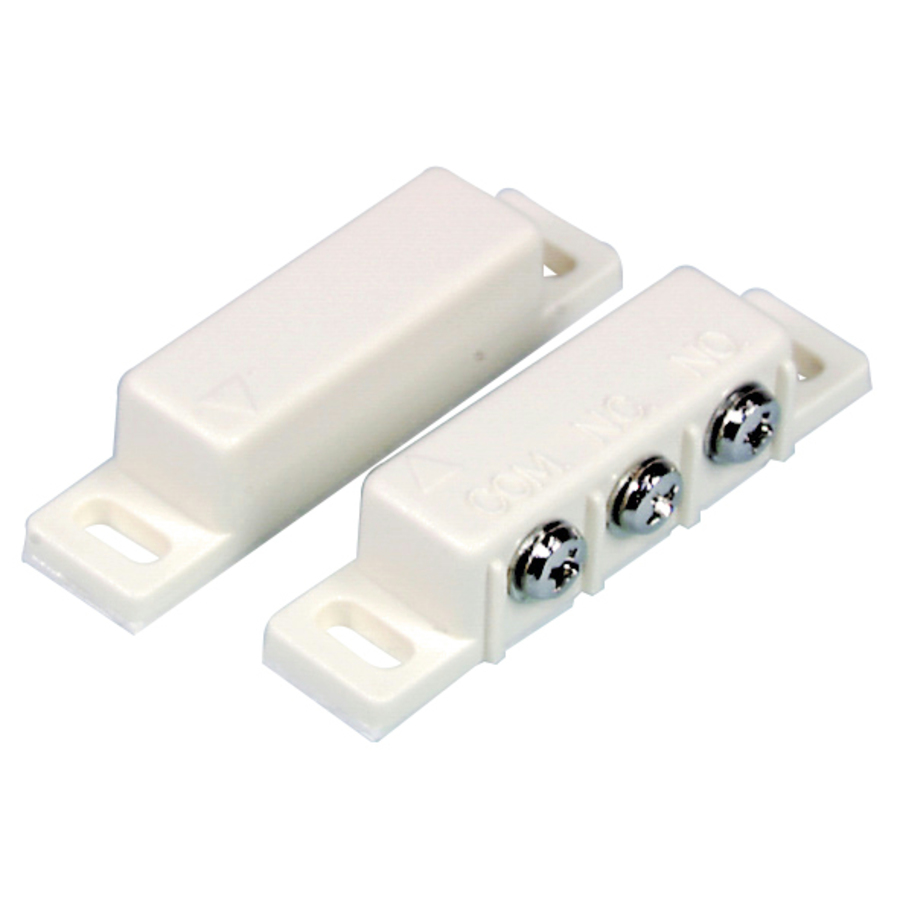

Security Alarm Reed Switch - Double Throw
Security Alarm Reed Switch - Double Throw

CAT. No. LA5070

Security Alarm Reed Switch - Double Throw
product image thumb

Security Alarm Reed Switch - Double Throw

$9.25
You have both types of contacts on the one unit, so you will always have the correct one!
Available

Description

You have both types of contacts on the one unit, so you will always have the correct one!
Normally Open (N.O.) and Normally Closed (N.C.) per pair.

Contact operation:

Contacts are closed cicuit when the magnet is alongside the switch. For alarm installation this is denoted as the "normal" state as the door/window is secure and the alarm is armed.


Handy Tip Normally Open & Closed Circuits

This is when the switch contacts are touching in the presence of a switching magnet. The contacts OPEN when the magnet is removed. This is the most common system in alarm circuits.

    Specifications

    Product Dimensions

    Height
    		 12.5mm
    Width
    		 55mm
    Dimension details
    		 Dimensions identical on switch and magnet
    Depth
    		 13mm

    Packaged Dimensions

    Packaged Length
    		 7.4cm
    Packaged Width
    		 3cm
    Packaged Weight
    		 0.02kg
    Packaged Volume
    		 0.03774l
    Packaged Height
    		 1.7cm

    Operating Temperature

    Operating Temperature
    		 -40°C

    Product Mounting

    Attachment / Securing Method
    		 Screw Down, Self Adhesive Tape/Pad
    Overall Screw Spacing (H)
    		 44.5mm
    Mounting Method
    		 Surface

    Product Availability

    Availability
    		 Stocked item
