CAT. No. MI5734

500W 12VDC to 240VAC Pure Sine Wave Inverter - Electrically Isolated
product image thumb
product image thumb
product image thumb
product image thumb

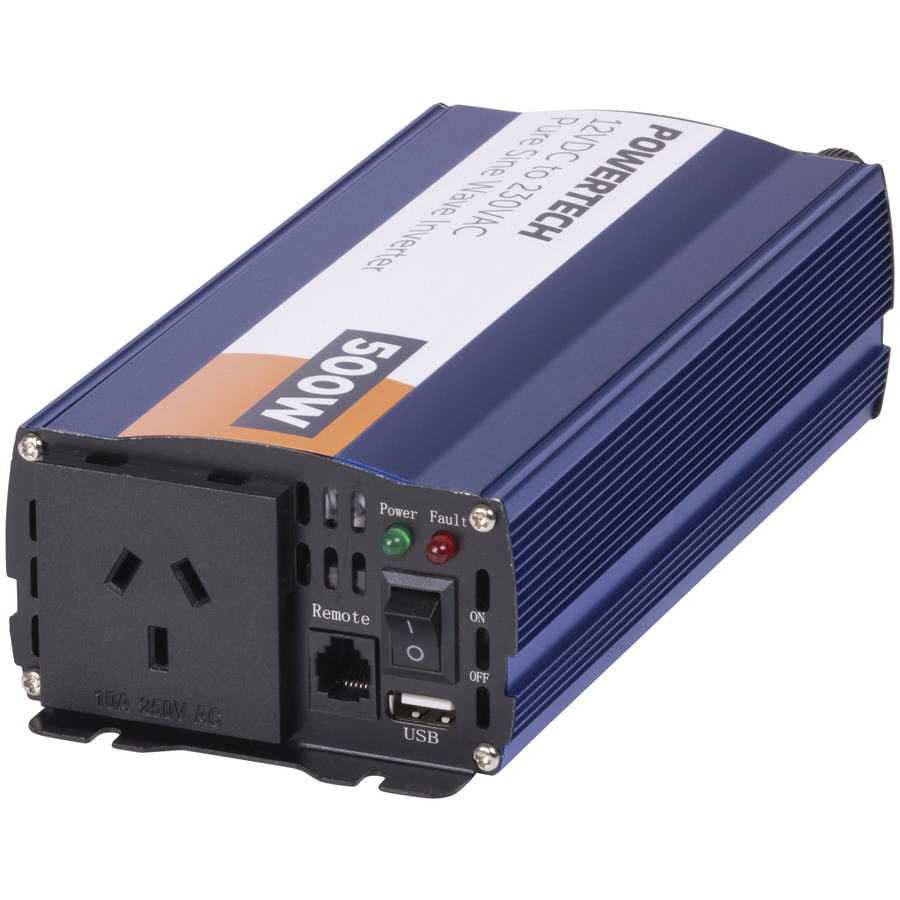

500W 12VDC to 240VAC Pure Sine Wave Inverter - Electrically Isolated

$249.00
A quality 12V pure sine wave inverter suitable for mobile or permanent power installations.
Available

Description

This convenient mains pure sine wave inverter is perfect when you’re looking at powering your sensitive appliances, and where a standard mains socket isn’t available. It provides you with a mains outlet for small appliances such as laptops, stereos, some computers, phone chargers, and other low-power mains applications. It boasts all the safety features you need like overload and input reverse polarity protection, and connects directly to a  battery with the supplied aligator clip cable. 500W is plenty of power for many small-medium devices while 1,000W surge power provides support for essential startup loads.

Features:

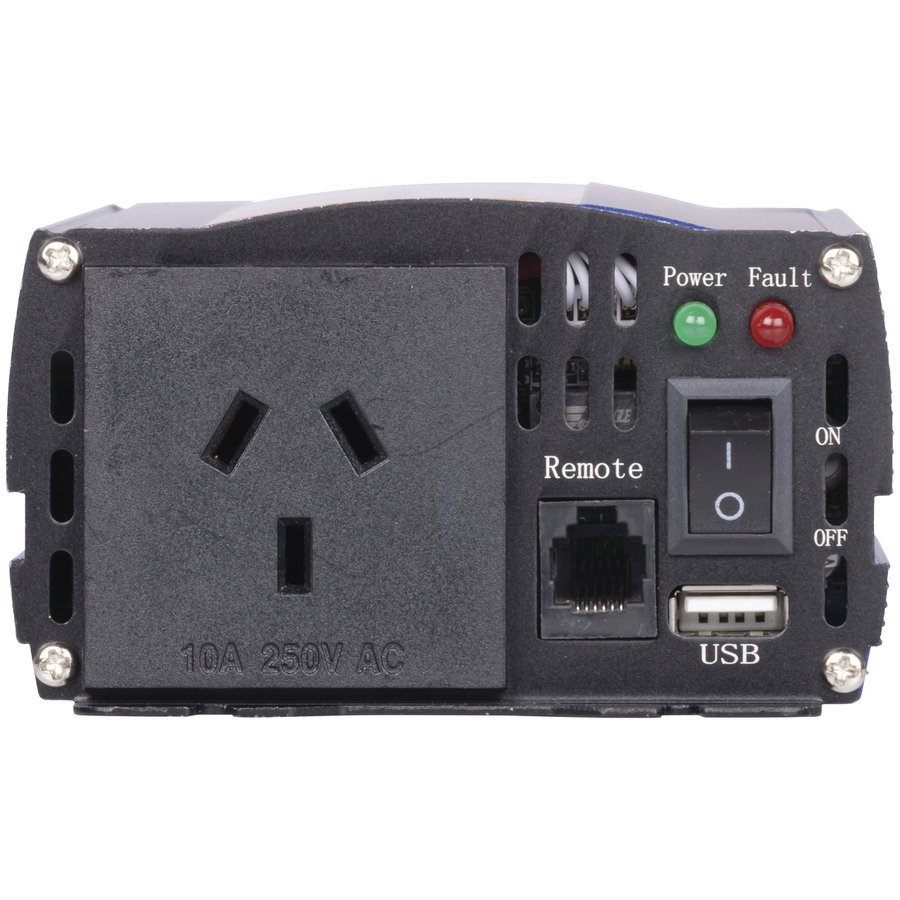

• Quick Charge USB Port
• Includes Battery Lead with Alligator Clips
• Modern Design, Portable and Easy Operation
• Surge Power: 1,000W Surge
• Low Battery Alarm: 10.5±0.5V
• Low Battery Shutdown: 10.0±0.5V
• High Battery Shutdown: 15.5±1.0V


Handy Tip Application Suitability - Inverters

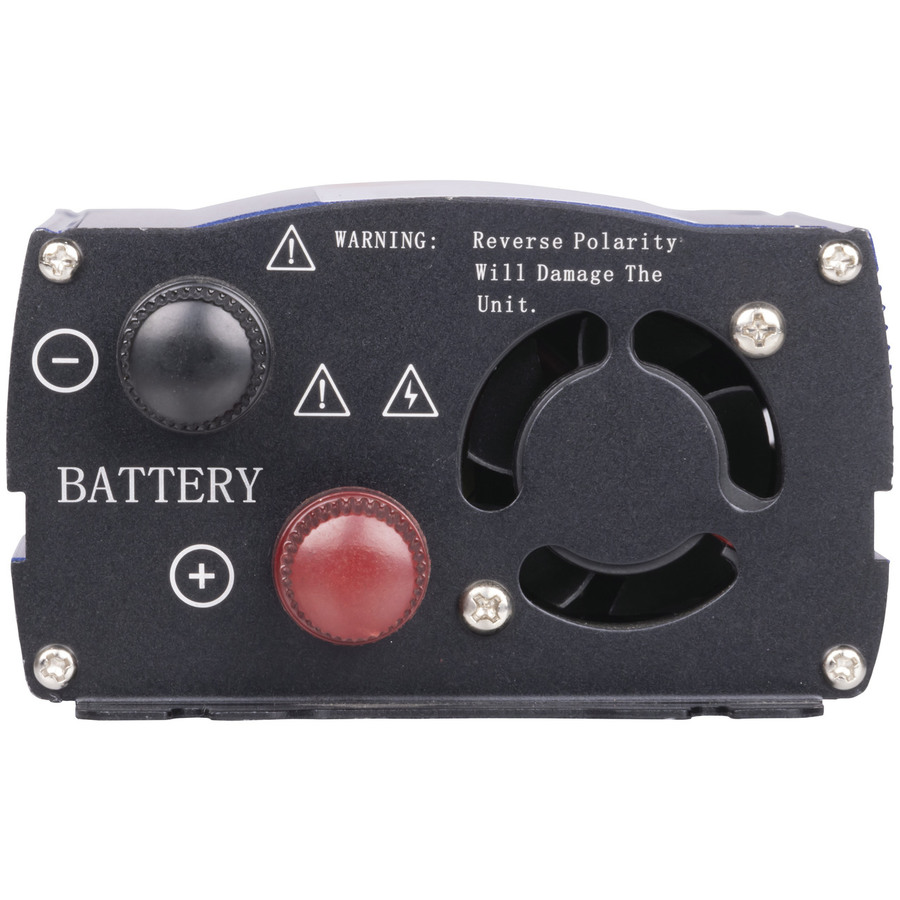

We DO NOT recommend that you use these products to operate the following: FRIDGES, AIR COMPRESSORS, AIR CONDITIONERS An inverter is a device which converts 12 or 24VDC into 240VAC. The240VAC generated is as lethal as the power in homes, and should be treated with the same respect. Inverters can be easily damaged, and connecting the input voltage terminals the wrong way around on the battery can damage the unit - be careful!!
• Appliances most suitable for connection include: Most power tools, lights, most TVs, video recorders / players, most computers, fax machines and most audio equipment.
• Fluorescent lights can give a highly inductive load on start up which can damage inverters. Appliances NOT suitable include:
Electric blankets, toasters, hair dryers, irons, radiators and heavy power tools (large angle grinders, circular saws etc.)Inverters will generally drive inductive loads such as electric motors, but only if the startup current is not high. Generally high startup current situations are when the motor is permanently coupled to a load such as a refrigeration or airconditioner compressor (Imagine the compressor at rest just before top dead centre you can easily realise the start up load on the motor!). Many other motors such asin drills, small angle grinders, buffers etc. start up under virtually no load and this is usually OK for the inverter provided the tool is within the inverter rating.

It needs to be pointed out that one of the major differences between a domestic power point and inverter is that the source impedance of a power point is very low compared to the inverter. This is why inverters have trouble with appliances with high start up currents and a domestic power point does not. Another thing that must be remembered is the special case of fluorescent lights with ballast chokes in them (by far the most common type).

Manufacturers of fluoro lights assume that they are just going to be installed to a normal 240V 50Hz sine wave supply. They are required to supply a product that does not overly distort the mains waveform. They generally comply with this by installing a, say,3.3F non polarised capacitor ac cross the mains/neutral supply inside the housing of the lamp fitting. This is called a power factor correction capacitor. This seems to work OK for a sine wave supply from a low source impedance.

When you drive such a device with modified sine wave 240Vpower, different things start to happen. The power factor correction capacitor presents a much greater load to a modified sine wave signal (which is a complex collection of high and low frequencies)than it would if it was a sine wave.

The bottom line is to reduce this capacitor to about 0.47?F or take it out completely. Inverters are generally OK then. It is also possible for an inverter to be damaged by the surges in current generated when using standard flourescent starters. This can be prevented by replacing the starter with an electronic starter.

    Specifications

    Inverters


    High Battery Shutdown
    15V
    Output Wave
    Pure sinewave
    External Casing
    bolt down
    Includes USB Charge Port
    Low Battery Shutdown
    10V
    Output Frequency
    50Hz

    Power Conversion and Transformation


    Type of converter or transformer
    inverter

    AC Voltage Rating


    AC Frequency
    50Hz
    AC Voltage rating
    230V

    Power Rating


    Continuous Power
    500W
    Maximum Power
    1000W

    Vehicle or Vessel Powered


    Vehicle Connection
    Alligator Clips
    Required Voltage
    11V-15V
    Lead Included

    AC Current Rating


    AC current rating
    2.2A

    Product Dimensions


    Height
    60mm
    Width
    240mm
    Depth
    100mm
    Weight
    960g

    Product Availability


    Availability
    Stocked item

    Packaged Dimensions


    Packaged Length
    25.3cm
    Packaged Width
    14.6cm
    Packaged Weight
    1.168kg
    Packaged Volume
    2.511784l
    Packaged Height
    6.8cm
