CAT. No. MP5205

650VA390W Line InterActive UPS with LCD and USB
product image thumb
product image thumb
product image thumb

650VA390W Line InterActive UPS with LCD and USB

$199.00
Keep your devices running when the grid goes down or give yourself enough time to power down safely.
Available

Description

1 Year Warranty
240V Mains Power
USB 2.0

Critical systems should ideally be connected to some form of backup power in the event of a blackout, power surge or brownout. A fault at the grid may drop the voltage at the mains, which could cause some systems to shutdown, reset, lose data or worse, resulting in thousands of dollars of damage (both material and immaterial).


These line interActive units give you a good balance between real time system protection and power redundancy when mains electricity is down or experiencing reliability issues. During mains voltage sags both units will deliver a steady voltage, keeping critical systems running properly. For a total power blackout the units can keep your systems running long enough to save important data or cleanly shutdown connected devices. Other important features include an auto shutdown when no load is detected, audible alarms for low battery, self diagnosis on boot, and intelligent battery management.

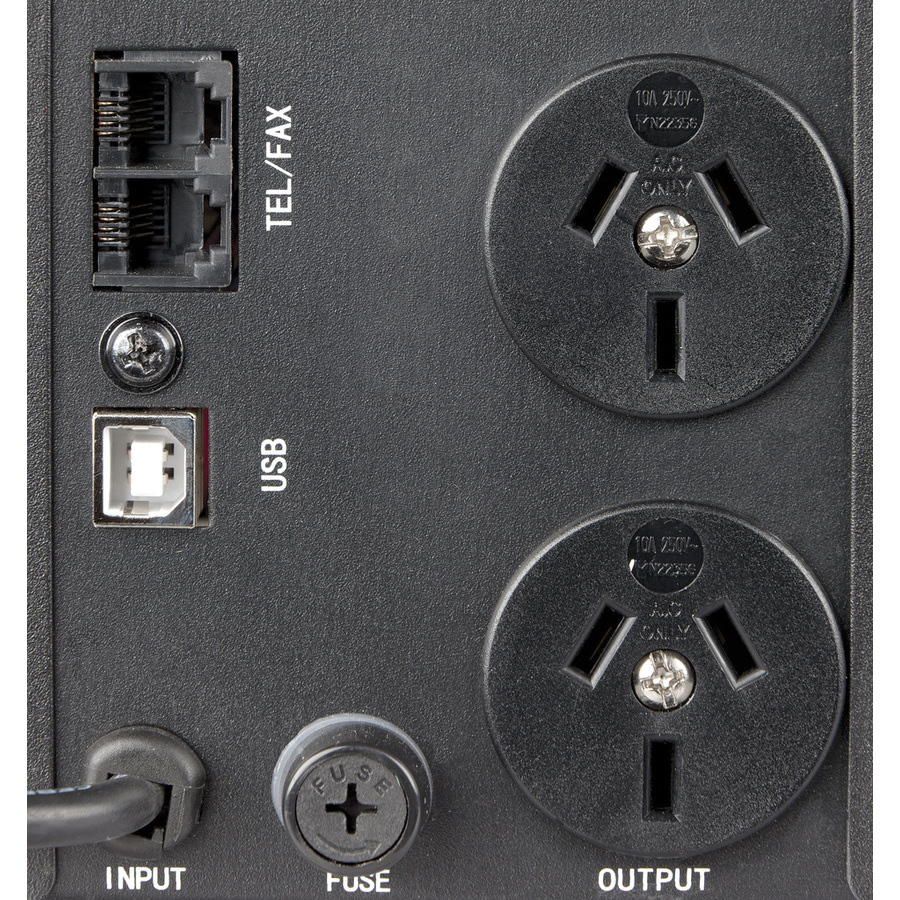

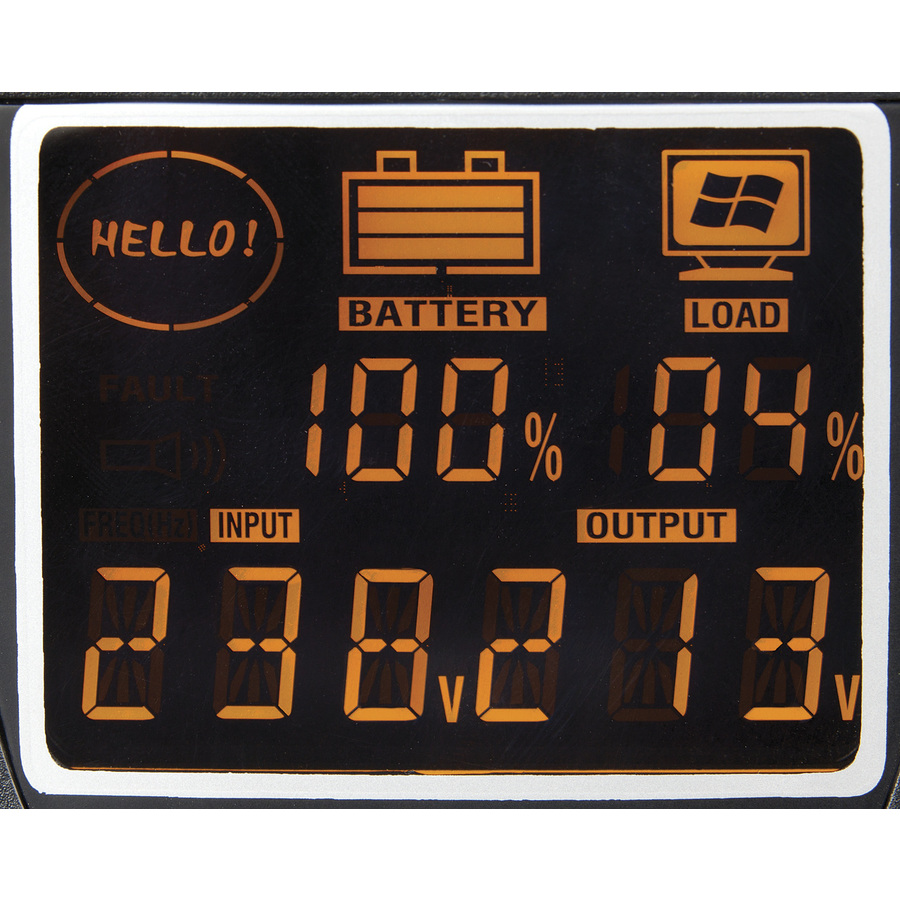

Both models feature an easy to read LCD which displays battery and load values as a percentage and input/output voltages. At the rear of the unit are 2 x RJ11 sockets for Telephone/Fax protection and a USB socket for connection to your PC for use with the power management software.

Features:

• Short circuit protection: Yes
• Mains connections: 2 (input and output)


For all software compatibility check the installation disk.


    Specifications

    UPS


    Backup Time - Standard Load (~200W)
    5min
    Backup Time - Moderate Load (~140W)
    9min
    Data/Phone Connection
    RJ11
    Nominal Backup Time
    25min
    Recharge Time
    8hr
    Number of Batteries
    1pc
    Switch Over Time
    10ms
    Line Type
    interActive
    Recommended use
    Home PC, Small Office Home Office
    Volt Amps
    650VA
    Computer Interface
    USB 2.0
    Watts
    390W
    Backup Time - Light Load (~70W)
    25min
    Output Waveform
    modified sine wave
    Output Frequency
    50Hz
    Display
    Basic LCD
    Phone/Data Filter

    Mains powered


    Mains lead included
    Mains Voltage Range
    180V-230V
    Rated for US Mains
    Rated for AU Mains

    Product Dimensions


    Length
    340mm
    Height
    165mm
    Width
    95mm
    Weight
    5.5kg

    Packaged Dimensions


    Packaged Length
    38.1cm
    Packaged Width
    23.7cm
    Packaged Weight
    5.454kg
    Packaged Volume
    13.273659l
    Packaged Height
    14.7cm

    Battery Packs and Batteries


    Battery Chemical Composition
    Sealed Lead Acid (SLA)
    Battery usage
    Rechargeable
    Amp Hour Rating
    7Ah

    Product Availability


    Availability
    Stocked item
    Warranty: 12 Months
