CAT. No. QC1938

100MHz Digital Oscilloscope with 8M Memory Depth
product image thumb
product image thumb
product image thumb

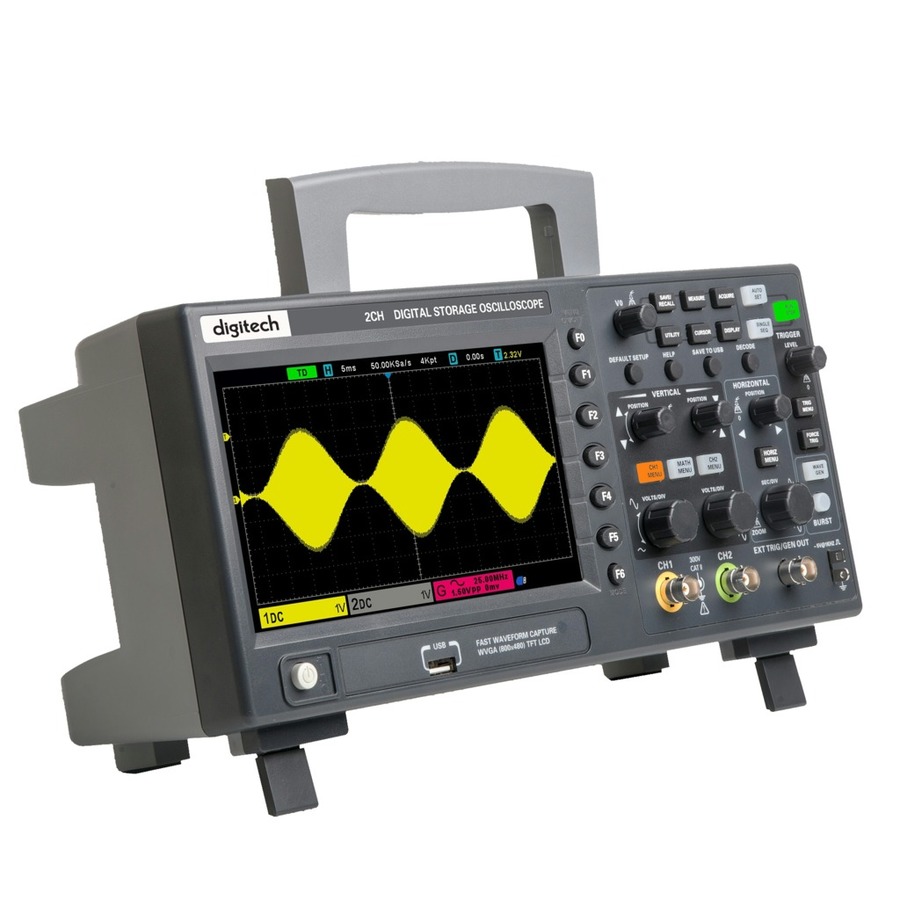

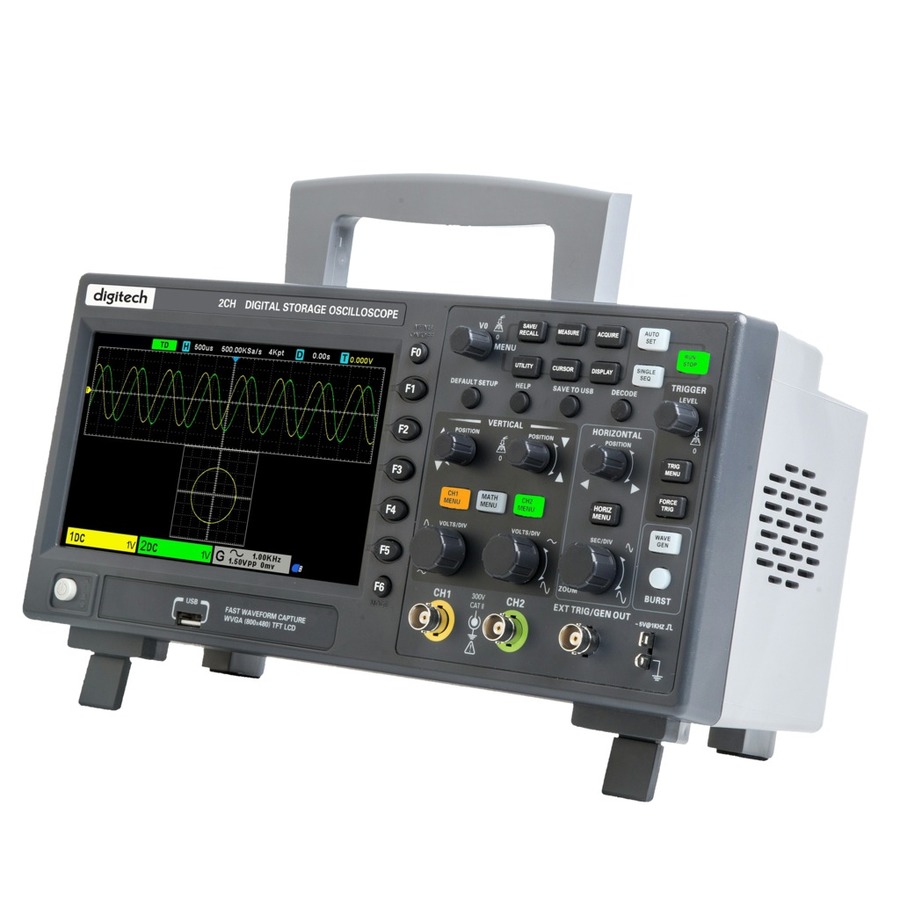

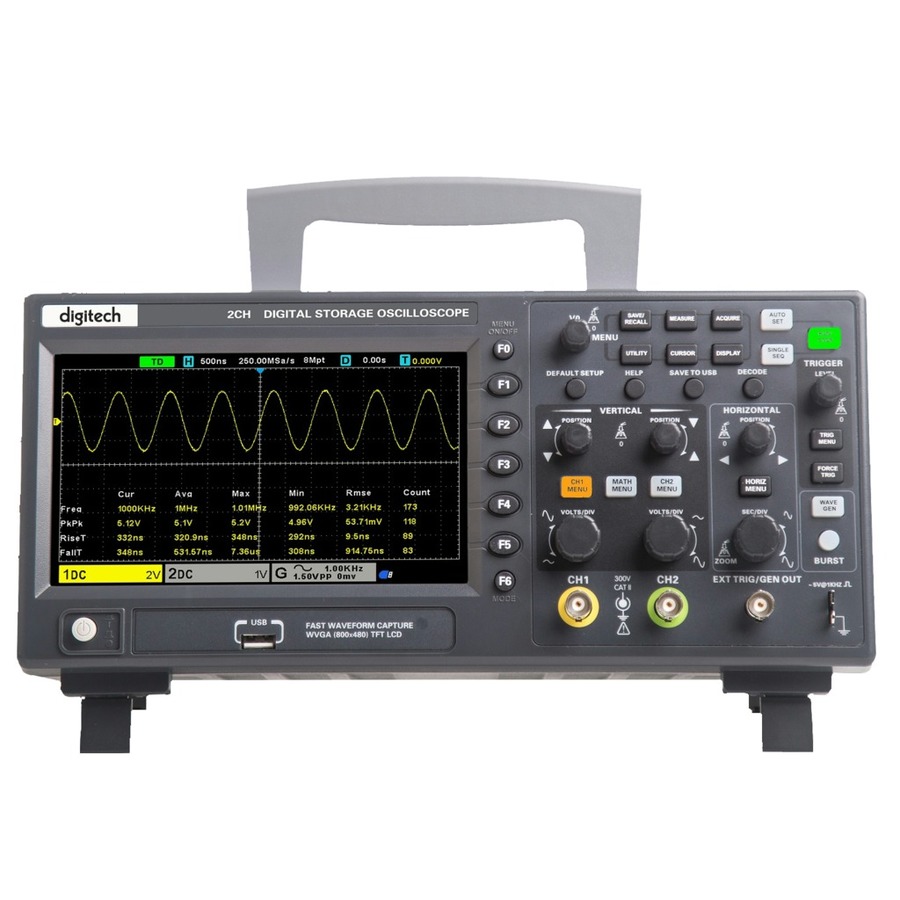

100MHz Digital Oscilloscope with 8M Memory Depth

$569.00
Make designing or repairing electronics easier with this affordable Digitech 100HMz dual channel Digital Storage Oscilloscope (DSO) ideal for technicians, educators, or hobbyists.

Out of Stock

Description

Make designing or repairing electronics easier with this affordable dual channel digital oscilloscope. Features include 7” colour LCD screen with easy to use interface. two independent channels and controls, 100Mhz bandwidth & 25MHz waveform generator, and an auto scale function that detects sine and square waves automatically. 14 trigger modes include Edge, Pulse, Video, Slope, Overtime, Window, Pattern, Interval, Under Amp, UART, LIN, CAN, SPI, and IIC, and 5 serial protocol triggers and decodes include RS232/UART, I2C, SPI, CAN, and LIN. Other features include two 3-digit digital voltmeters, and 6-digit hardware frequency indicator. It also boasts 32 kinds of auto measurements with statistics, real-time statistics of maximum, minimum, standard deviation, etc. Connect and control directly from a computer, or plug in a USB thumb drive to save oscilloscope setups, waveforms, reference waveforms, CSV files and images. Mains powered. Supplied with 10:1 passive probe with 1.5m lead, 2 x BNC to clip test leads, USB cable, and power lead.

Features:

- 8M memory depth (single channel)
- Waveform generator
- Abundant SCPI remote command control
- USB Host/Device
- Dual window mode
- 32 auto measurements
- 5 serial protocol triggers and decodes
- Two Digital voltmeters

SPECIFICATIONS
- Display: 7” TFT
- Resolution: 800 x 480px
- Display type: Point, vector
- Interface: USB Host, USB device
- Sampling rates: Up to 1GSa/s
- Vertical range: 2mV/div ~ 10V/div
- Vertical resolution: 8bit
- Waveform generator: Sine, square, ramp, exponential, noise, DC
- Weight: 1.9kg
- Dimensions: 318(L) x 150(H) x 110(W)mm


    Specifications

    Oscilloscope


    Accessories
    Wave Generator: Sine, Square, Ramp, Exponential, Noise and DC
    Display Resolution
    800 x 480px
    Display Type
    7 inch TFT
    Display Modes
    Point, Vector
    Bandwidth
    100MHz
    Sampling Rate
    1GSa/s
    Vertical Resolution
    8 Bit
    Channels
    2pc

    Product Availability


    Availability
    Stocked item

    Product Dimensions


    Length
    318mm
    Height
    150mm
    Width
    110mm
    Weight
    1.9kg

    Packaged Dimensions


    Packaged Length
    36.3cm
    Packaged Width
    19.8cm
    Packaged Weight
    2.69kg
    Packaged Volume
    15.88415l
    Packaged Height
    22.1cm
