CAT. No. XC0432

Digital Weather Station with Monochrome Display
product image thumb
product image thumb
product image thumb
product image thumb
product image thumb

Digital Weather Station with Monochrome Display

$249.00

Weather station with clear LCD screen and 5-in-1 weather sensor/transmitter - Works on the 917MHz Band - Up to 150m Range

Available

Description

Wireless

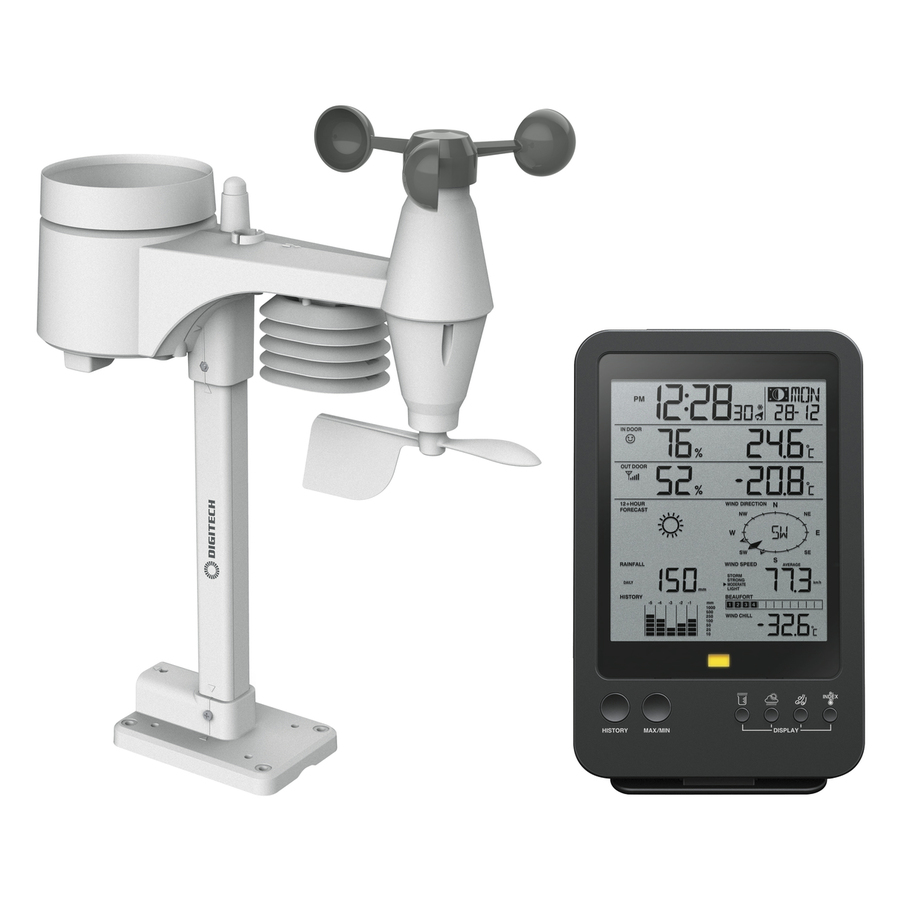

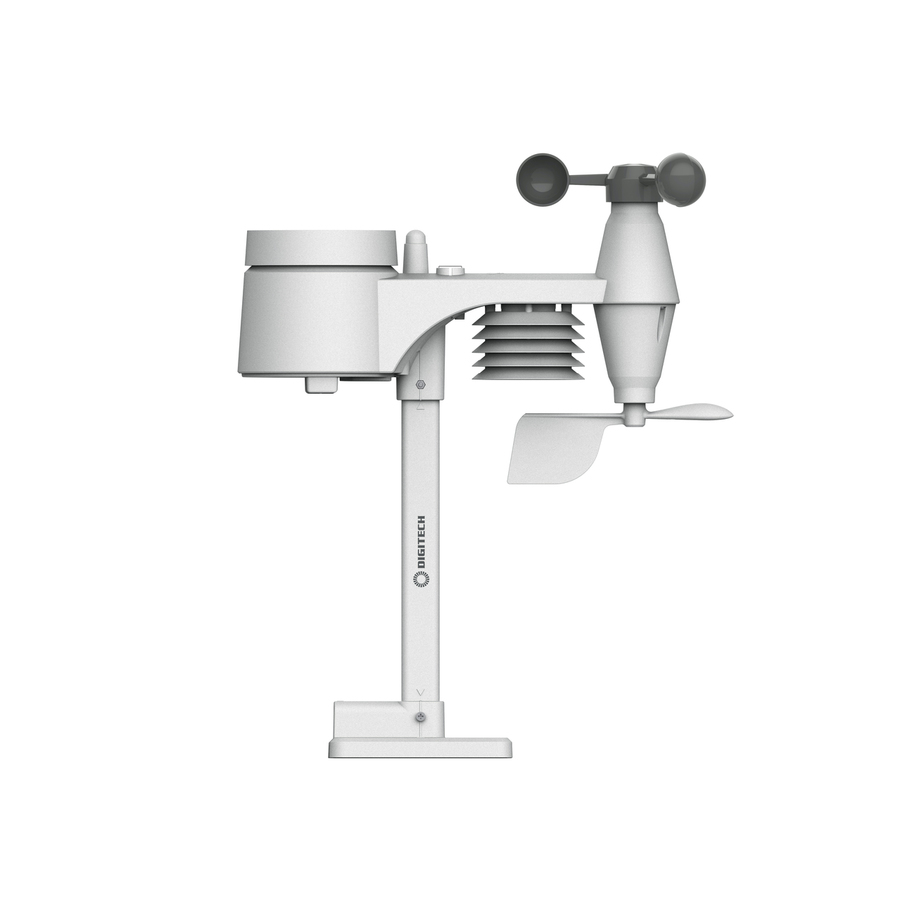

The wireless 5-in-1 sensor contains a self-emptying rain collector for measuring rainfall, anemometer, wind vane, temperature and humidity sensors. It is fully assembled and calibrated for easy installation. It sends data by a low power radio frequency signal (917MHz band) to the main display unit up to 150m away (line of sight).

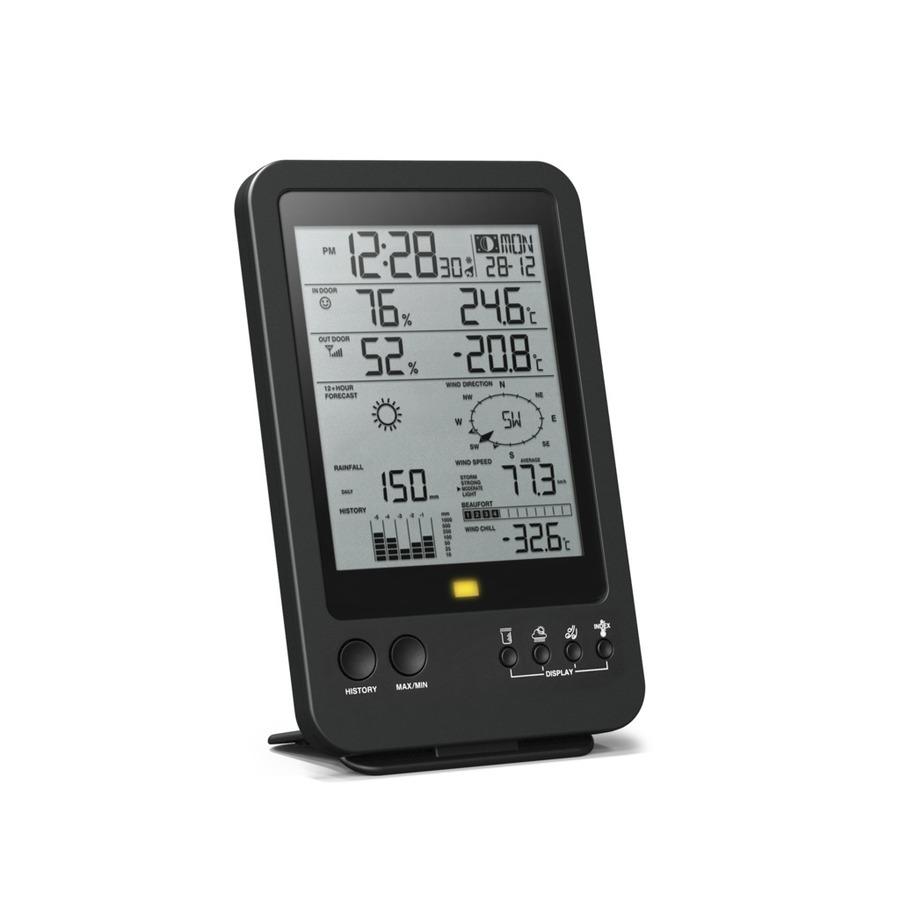

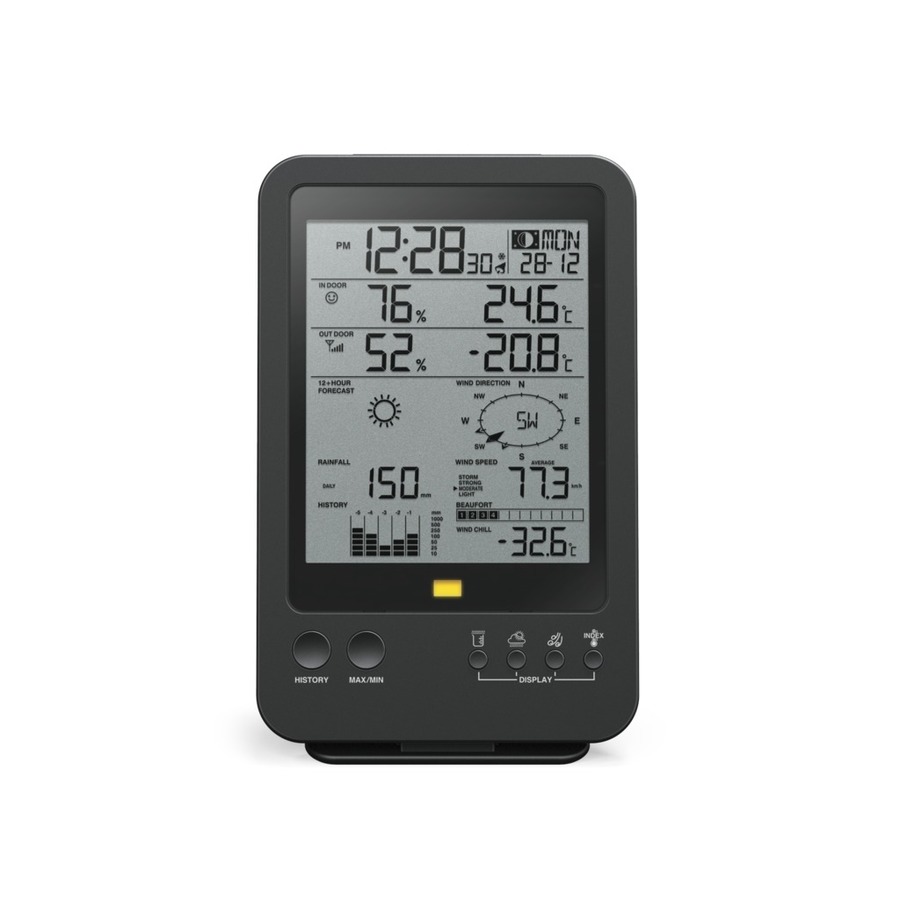

The main display shows all the weather data received from the 5-in-1 sensor outside. It remembers the data for a time range for you to monitor and analyse the weather status for the past 24 hours. It has advanced features such as the HI/LO Alert alarm which will alert the user when the set high or low weather criteria are met. The barometric pressure records are computed to give users forthcoming weather forecast and storm warning. Day and date stamps are also provided to the corresponding maximum and minimum records for each weather detail.

The system also analyses the rainfall rate, and shows daily, weekly and monthly records. Wind-speed is expressed in Beaufort Scale, and readings such as wind-chill, heat Index, dew point, and comfort level are also provided.

Features:
• Indoor & Outdoor Temperature (°C or °F)
• Min/Max Records
• Indoor & Outdoor Hygrometer
• Wind Speed  (m/s, km/h, mph, or knots)
• Wind Direction
• Wind Chill
• Dew Point
• Heat index
• Rain Gauge  (in or mm)
• Rain Rate
• Barometric Pressure (hPa, inHg, or mmHg)
• Moon Phase
• Time/Date Display
• High/Low Alarms
• 12 Hour Forecast
• Rainfall & Barometer Histogram



    Specifications

    Height 120mm, 393mm, 190mm
    Dimension details Active Display Area
    Width 90mm, 343mm, 120mm
    Height 120mm, 393mm, 190mm
    Dimensions details Remote Sensor
    Width 90mm, 343mm, 120mm
    Depth 136mm, 22mm
    Height 120mm, 393mm, 190mm
    Width 90mm, 343mm, 120mm
    Depth 136mm, 22mm
    Weight 370g
    Weather Station Style Weather Station
    Sensor Battery Type Alkaline
    Sensor Type Remote wireless sensor, Rocker Collector (Continuous Flow)
    Sensor Battery Quantity 3pc
    Sensor Battery Size AA
    Outdoor / Exterior Scale -40°C-65°C
    Relative humidity range 20%-90%
    RH Humidity measure accuracy +/- 5%
    Wind Speed Range 0km/h-180km/h
    Sensor Type Remote wireless sensor, Rocker Collector (Continuous Flow)
    Maximum Rainfall Reading 9mm
    Pressure Range 54kPa-110kPa
    Display Backlight LED Backlit
    Display Type LCD
    Display Width 90mm
    Display colour Monochrome
    Display Height 165mm
    Battery used for Transmitter
    Battery quantity 3pc
    Size / Shape AA
    Transmission range 150m
    Transmission frequency 917MHz
    Transmission power 917W
    Availability Stocked item
    Packaged Length 39.1cm
    Packaged Width 28.8cm
    Packaged Weight 1.602kg
    Packaged Volume 17.45424l
    Packaged Height 15.5cm
