Digital Weather Station with Colour Display

$379.00
Quick and accurate view of various weather parameters with an ultra modern colour display. - 5-in-1 Sensor - 150m Range - Weather Forecast and Storm Warning
Available

Description

Wireless

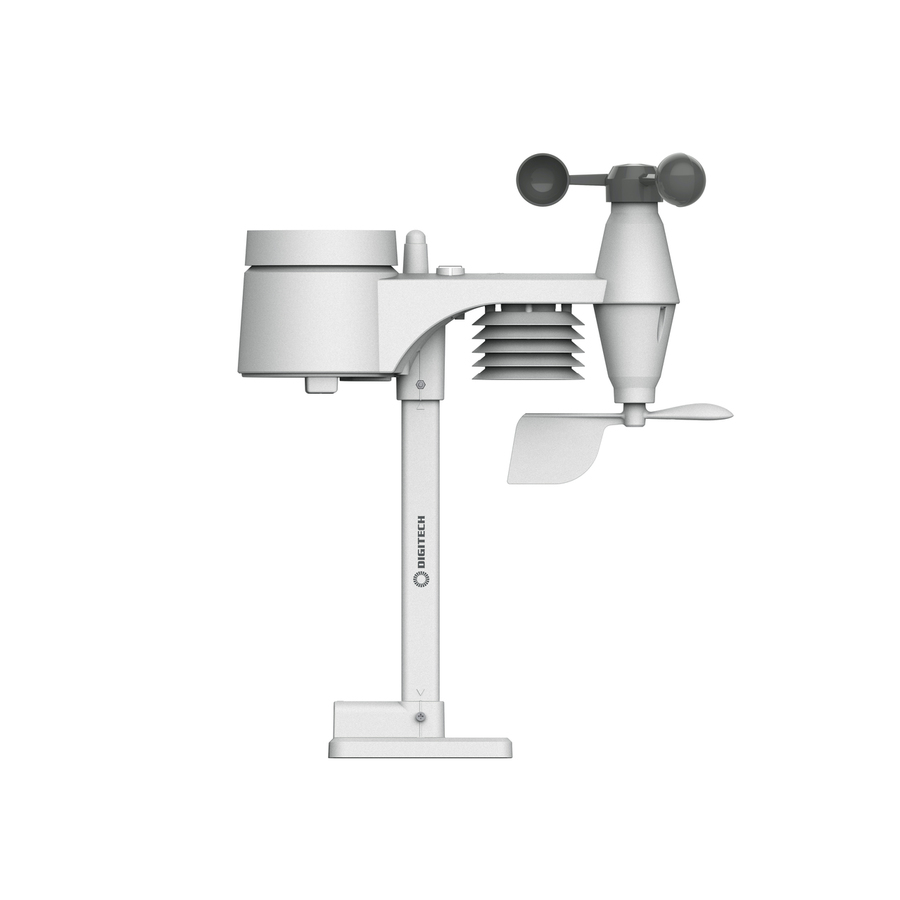

The wireless 5-in-1 sensor contains a self-emptying rain collector for measuring rainfall, anemometer, wind vane, temperature and humidity sensors. It is fully assembled and calibrated for easy installation. It sends data by a low power radio frequency 917MHz band to the main display unit up to 150m away (line of sight).

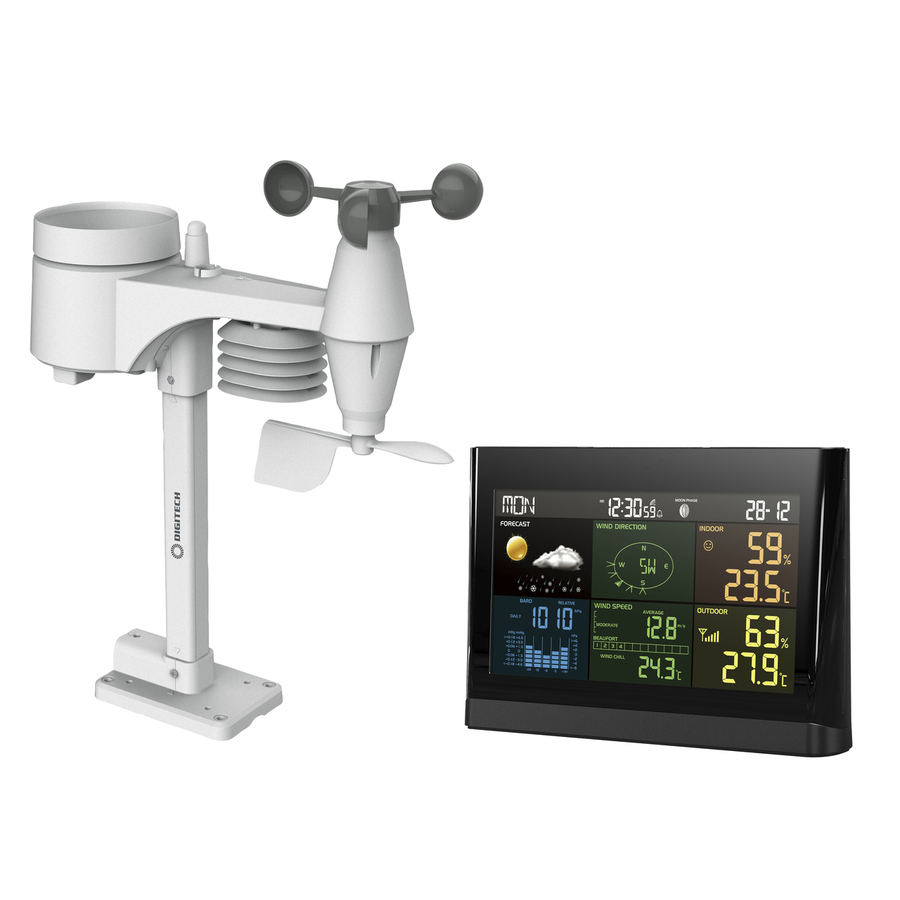

The attrActive multi-colour display shows all the weather data received from the 5-in-1 sensor outside. It remembers the data for a time range for you to monitor and analyse the weather status for the past 24 hours. It has advanced features such as the HI/LO Alert alarm which will alert the user when the set high or low weather criteria are met. The barometric pressure records are computed to give users forthcoming weather forecast and storm warning. Day and date stamps are also provided to the corresponding maximum and minimum records for each weather detail.

The display can be desk or wall mounted, and push buttons on top of the display makes it easy to toggle between the different display options, including a large snooze button if you like your sleep-ins.

The system also analyses the rainfall rate, and shows daily, weekly and monthly records. Wind-speed is expressed in Beaufort Scale, and readings such as wind-chill, heat Index, dew point, and comfort level are also provided.

A mains power supply is included for the main display.

FEATURES
• AttrActive Colour Display
• Up to 150m Range
• Indoor & Outdoor Temperature (°C or °F)
• Min/Max Records
• Indoor & Outdoor Hygrometer
• Wind Speed (m/s, km/h, mph, or knots)
• Wind Direction
• Feels Like
• Wind Chill
• Dew Point
• Heat Index
• Rainfall (in or mm)
• Rain Rate
• Barometric Pressure (hPa, inHg, or mmHg)
• Moon Phase
• Time/Date Display
• High/Low Alarms
• 12 Hour Forecast
• Rainfall & Barometer Histogram

    Specifications

    Internal or Sub-part Dimensions


    Height
    90mm, 393mm, 138mm
    Dimension details
    Display Area, Main Unit
    Width
    120mm, 343mm, 202mm

    Additional Dimensions


    Height
    90mm, 393mm, 138mm
    Dimensions details
    Remote Sensor
    Width
    120mm, 343mm, 202mm
    Depth
    136mm, 38mm

    Power from Plugpack


    DC Plugpack Voltage
    5V
    PSU Powers
    Receiver
    DC Current Draw
    300mA

    Product Dimensions


    Height
    90mm, 393mm, 138mm
    Width
    120mm, 343mm, 202mm
    Dimension details
    Display Area, Main Unit
    Depth
    136mm, 38mm
    Weight
    500g

    Weather Stations


    Weather Station Style
    Weather Station
    Sensor Type
    Remote wireless sensor, Rocker Collector (Continuous Flow)

    Measures Temperature


    Outdoor / Exterior Scale
    -40°C-65°C

    Measures Humidity and Moisture


    Relative humidity range
    1%-99%

    Measures Rainfall


    Sensor Type
    Remote wireless sensor, Rocker Collector (Continuous Flow)
    Maximum Rainfall Reading
    9mm

    Meter Display


    Display Type
    LCD

    Power from disposable battery


    Type
    Alkaline
    Battery used for
    Transmitter
    Battery quantity
    3pc
    Size / Shape
    AA

    Wireless Transmission


    Transmission range
    150m
    Transmission frequency
    917MHz

    Product Availability


    Availability
    Stocked item

    Packaged Dimensions


    Packaged Length
    39.1cm
    Packaged Width
    28.9cm
    Packaged Weight
    1.896kg
    Packaged Volume
    17.514845l
    Packaged Height
    15.5cm
