CAT. No. ZM9052

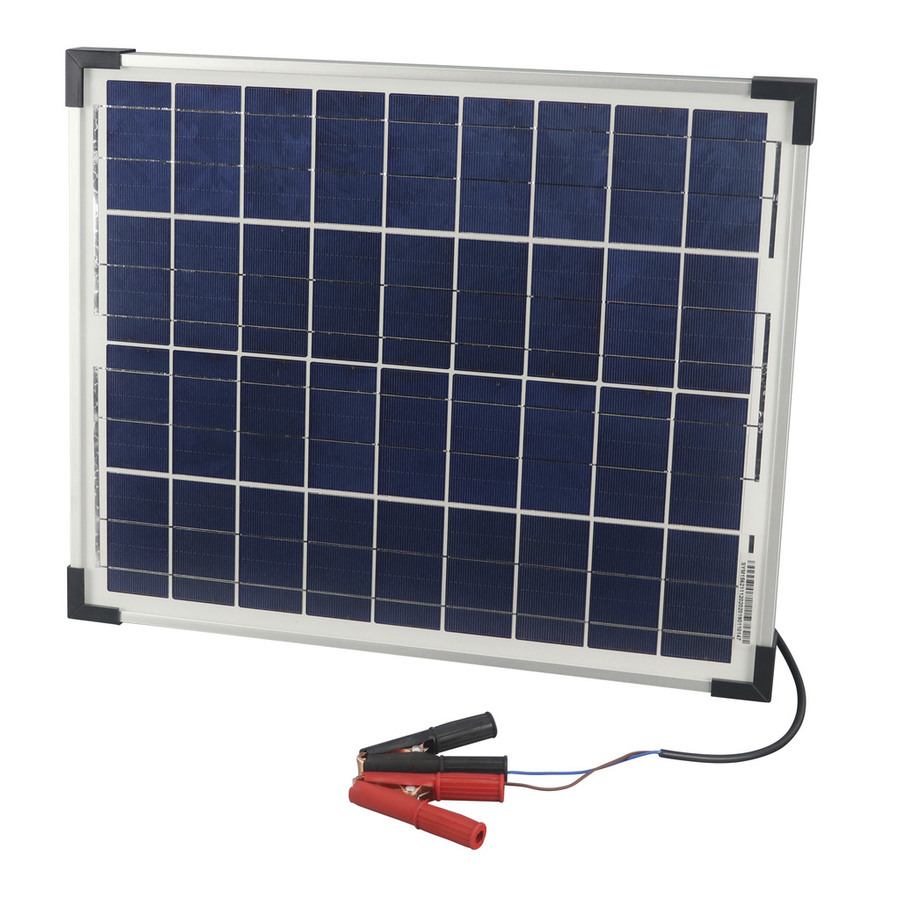

12V 20W Solar Panel with Clips
product image thumb

12V 20W Solar Panel with Clips

$79.95
This 20W solar panel perfect for electric fences, small projects or trickle charging to keep your keeping your boat, spare car or farm equipment batteries topped up!
Available

Description

20 Year Power Output Warranty
5 Year Construction Warranty

High quality solar panel with high efficiency and smaller footprint compared to our regular monocrystalline models. An easy way to keep your 12V batteries topped up and ready to go on your caravan, farm equipment, the spare car, or on the shed out the back. The dust and weather resistant panel features a robust frame, and is supplied with 3m long leads terminated with battery clips.

Fitted with a blocking diode making them suitable for direct connection to your battery as a trickle charger (take note of the minimum battery capacity), or as a low current charger to replace a load or current drain on the battery. A charge controller is recommended to prevent over-charging of the battery when the panel output exceeds the routine circuit load.

Min. battery capacity 200Ah






    Specifications

    Solar Panel


    Current at Power Max
    1.16A
    Solar panel type
    monocrystalline
    Voltage at Power Max
    17.4V
    Power Connector
    Alligator Clips
    Open Circuit Voltage
    22V
    Short Circuit Current
    1.21A

    DC Voltage Rating


    DC Voltage
    12V

    Power Rating


    Maximum Power
    20W

    Packaged Dimensions


    Packaged Length
    45.1cm
    Packaged Width
    36.6cm
    Packaged Weight
    2.122kg
    Packaged Volume
    8.418366l
    Packaged Height
    5.1cm

    Product Dimensions


    Height
    435mm
    Width
    356mm
    Depth
    25mm
    Weight
    1.8kg

    Product Availability


    Availability
    Stocked item
    Warranty: 60 Months
    Special terms or exclusions: 5 year warranty against materials and workmanship and 20 year warranty for power output no less than 80%
