CAT. No. ZM9124

12V 200W Blanket Solar Panel with Accessories
product image thumb
product image thumb
product image thumb

12V 200W Blanket Solar Panel with Accessories

$459.00

More compact and lighter than traditional fold-up solar panels, but still packing a huge punch in output!

Available

Description

1 Year Warranty

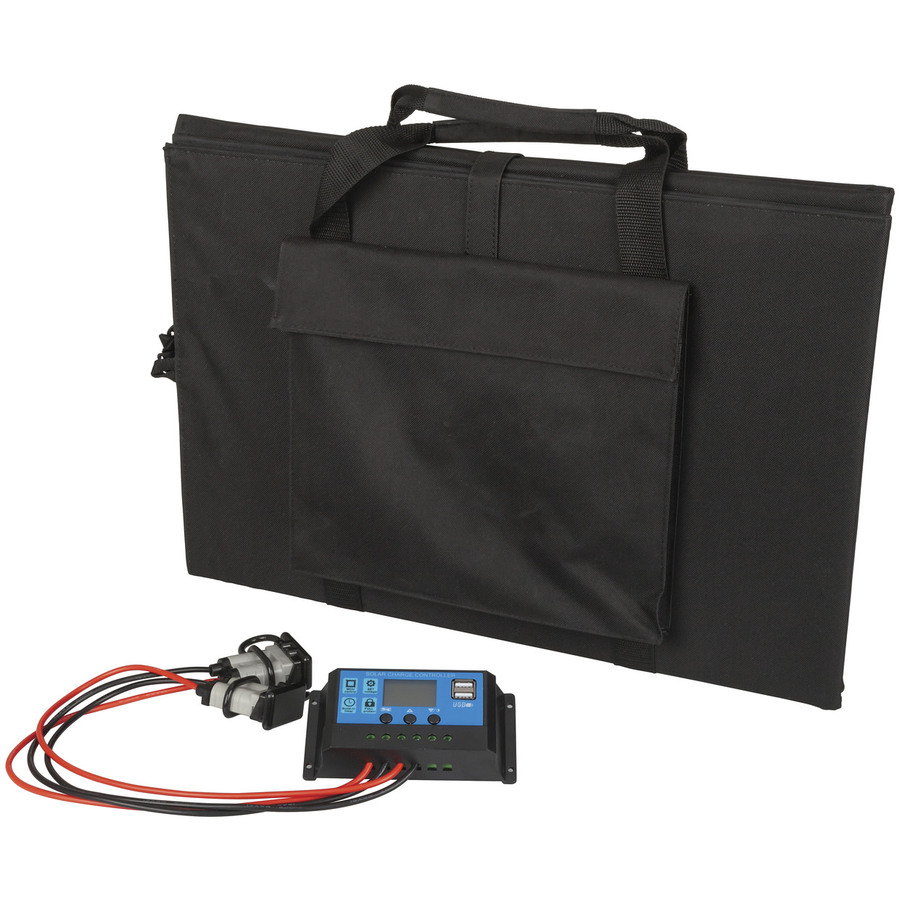

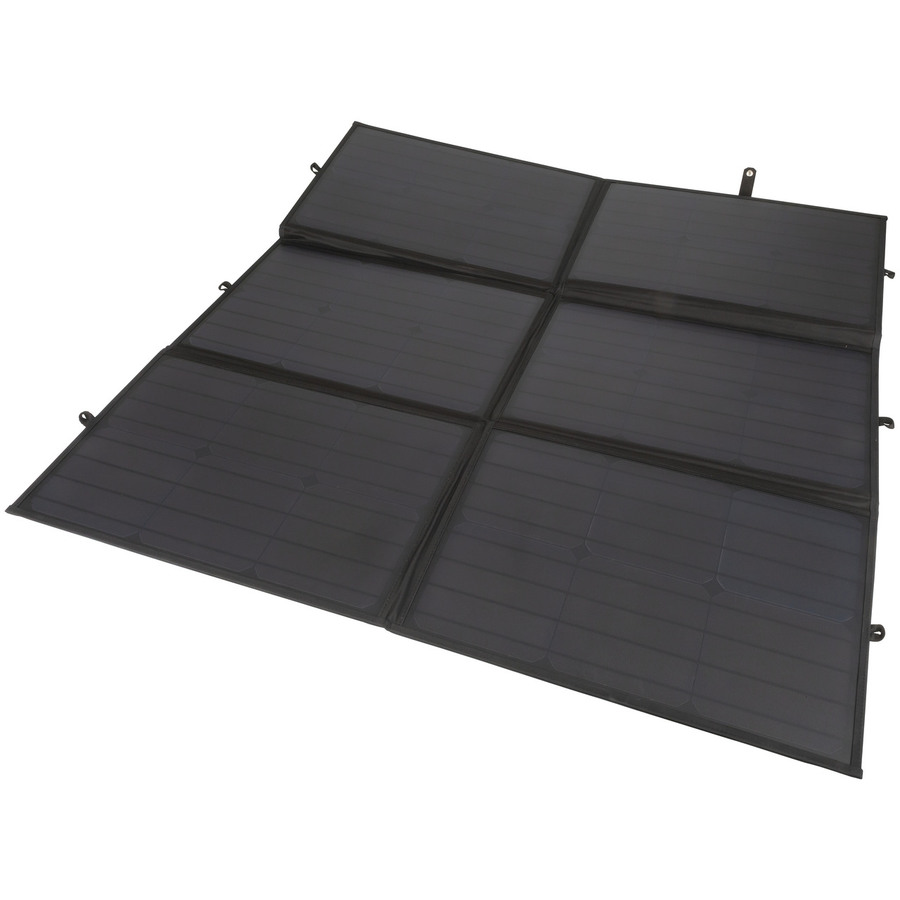

Blanket solar panels are much lighter and take up less space compared to traditional fold-up solar panels. This 12V 200W solar panel weighs just 6.8kg. When not in use, it folds down to just 512mm wide by 360mm high, small enough to easily stow away in a storage cupboard. When you want to use it, simply unfold and lay on the ground or across your car’s windscreen. A charge controller is included, so you can connect directly to a GEL, flooded or SLA battery without any additional hardware. The charge controller also includes a 2A USB charging outlet, perfect for charging mobile phones, tablets, and other devices in an emergency. Built with high grade monocrystalline solar panels, and safety features including short circuit, open circuit, reverse polarity, overload, and dual MOSFET reverse current protection. A carry bag is supplied with a built-in pouch for accessory storage.

Features:
• 3-stage PWM charge management
• USB 2A USB Port

Charger Specifications:
Solar Charge Controller
System Voltage: 12/24V Auto
Battery Equalisation:
Sealed: 14.4V
GEL: 14.2V
Flood: 14.6V
Float Charge: 13.7V (Default, Adjustable)
Discharge Stop: 10.7V (Default, Adjustable)
Discharge Reconnect: 12.6V (Default, Adjustable)
USB Output: 5V, 2A
Self-Consumption: <10mA
Operating Temperature: -35 ~ 60°C




    Specifications

    Current at Power Max 9.5A
    Solar panel type monocrystalline
    Voltage at Power Max 18V
    Mounting Method Folding Portable
    Open Circuit Voltage 23.7V
    Short Circuit Current 9.8A
    Continuous Power 200W
    Height 360mm, 34mm, 1032mm
    Dimension details Solar Panel Dimensions - Folded, Solar Panel Dimensions - Unfolded
    Width 512mm, 134mm, 1070mm
    Height 360mm, 34mm, 1032mm
    Dimensions details Charge Controller Dimensions
    Width 512mm, 134mm, 1070mm
    Depth 70mm
    Weight 154g, 6.2kg
    Max Load Current 20A
    Max Charging Current 20A
    Max PV Open Circuit Voltage 48V
    Charge Controller Technology Pulse Width Modulated (PWM)
    Height 360mm, 34mm, 1032mm
    Width 512mm, 134mm, 1070mm
    Dimension details Solar Panel Dimensions - Folded, Solar Panel Dimensions - Unfolded
    Weight 154g, 6.2kg
    Availability Stocked item
    Packaged Length 54.8cm
    Packaged Width 54.2cm
    Packaged Weight 7.4kg
    Packaged Volume 20.197088l
    Packaged Height 6.8cm
    Warranty: 12 Months
