CAT. No. AB3456

Dual Sound Piezo Buzzer 1-13V
product image thumb
product image thumb
product image thumb
product image thumb

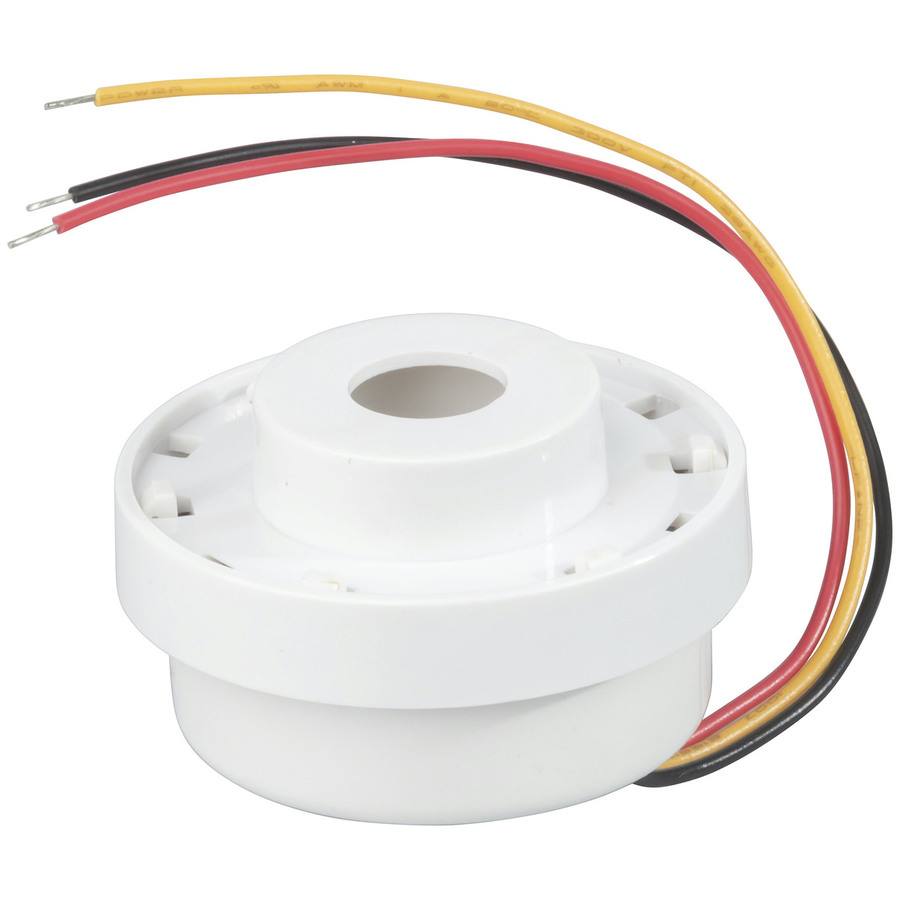

Dual Sound Piezo Buzzer 1-13V

$10.95
Similar to Sonalert, these continuous-tone and pulsed-tone piezo buzzers are used in control panels, alarms and other audile warning systems.
Available

Description

Similar to Sonalert earpiercing sound. Non inductive, operates from 1 - 13V DC. Now with both continuous tone and pulsed tone. Red & black for continuous, yellow and black for pulse tone. Ideal for almost all signalling applications.

Features:
- SPL: 105dB/30cm single 100dB/ 30cm pulse
- Pulse Rate: 2 - 7 pulse/sec
- Mounting: 1 x 3mm screw.

    Specifications

    Product Dimensions


    Height
    26mm
    Diameter
    45mm

    Packaged Dimensions


    Packaged Length
    4.5cm
    Packaged Width
    4.5cm
    Packaged Weight
    0.019kg
    Packaged Volume
    0.050625l
    Packaged Height
    2.5cm

    Electromechanical Buzzer


    Buzzer Type
    Piezo
    Pulsing Buzzer
    Buzzer Frequency
    2.9kHz
    Buzzer Current
    35mA
    Buzzer Operating Voltage
    1V-13V
    Rated Voltage
    12v

    Product Availability


    Availability
    Stocked item
