CAT. No. AC1649

Stereo Phono Pre-amp with RIAA Compensation
product image thumb
product image thumb
product image thumb
product image thumb
product image thumb

Stereo Phono Pre-amp with RIAA Compensation

$27.95
A simple 9V battery powered preamp to give audio sources a much needed boost before connecting them to speakers or an amplifier. It is useful for conn...

Out of Stock

Description

1 Year Warranty

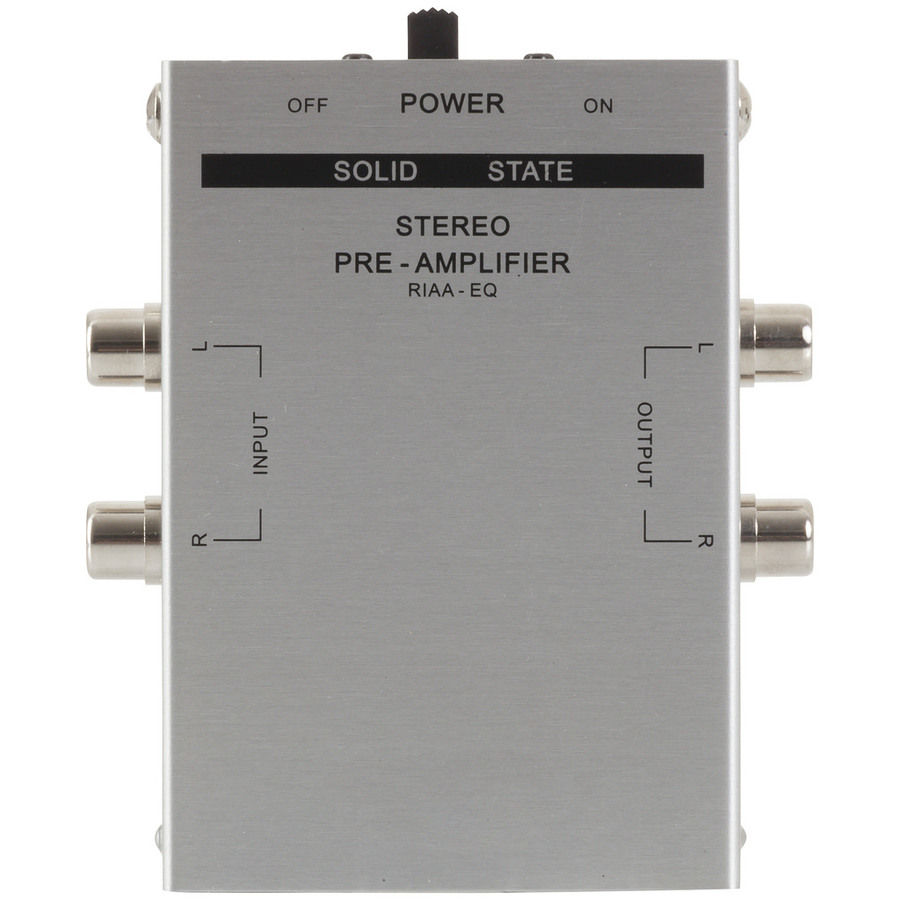

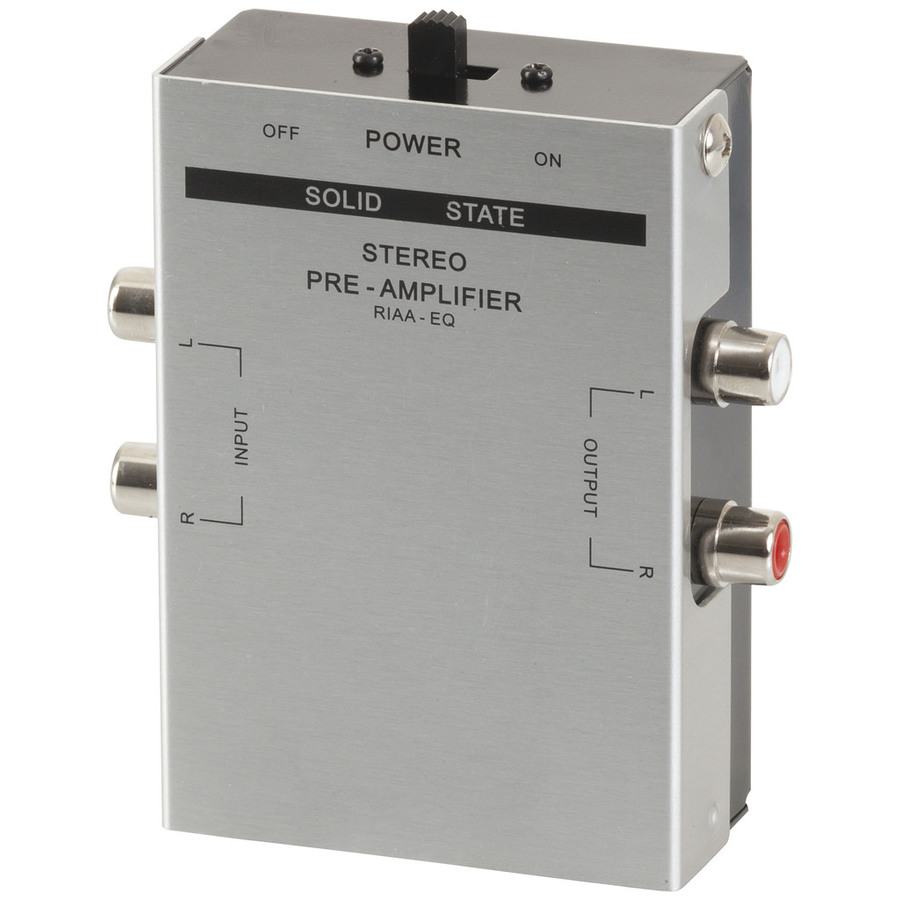

A simple 9V battery powered preamp to give audio sources a much needed boost before connecting them to speakers or an amplifier. It is useful for connecting products with magnetic pick-ups such as turntables to an amplifier. 2 RCA inputs and 2 RCA out. 1 x 9V battery required. Features RIAA equalisation circuit for accurate sound reproduction.


Specifications:
• Rated input level: 3mV
• Max input level: 38mV
• Input Impedance: 50K ohms at 1,000Hz
• Output Level: 1.8VRMS
• Output Impedance: 50K ohms
• S/N ratio: 50dB


    Specifications

    A/V Switcher or Converter

    Input type
    		 Audio
    Switcher/Converter Type
    		 Distribution Amplifier Splitter
    Input Connection
    		 RCA Stereo Pair
    Output Type
    		 Audio
    Output Connection
    		 RCA Stereo Pair
    Number of inputs
    		 1pc
    Number of Outputs
    		 1pc

    Product Dimensions

    Length
    		 91mm
    Width
    		 72mm
    Depth
    		 28mm

    Packaged Dimensions

    Packaged Length
    		 13.5cm
    Packaged Width
    		 9.5cm
    Packaged Weight
    		 0.168kg
    Packaged Volume
    		 0.64125l
    Packaged Height
    		 5cm

    Product Availability

    Availability
    		 Stocked item
    Warranty: 12 Months
