CAT. No. AM4051

UHF Headset Microphone Kit
product image thumb
product image thumb
product image thumb

UHF Headset Microphone Kit

$99.95
Using high quality UHF transmission between the headset and receiver, this kit provides you with great quality audio reproduction without any messy wiring due to a rechargable battery.

Out of Stock

Description

1 Year Warranty
Hazardous Materials
Wireless

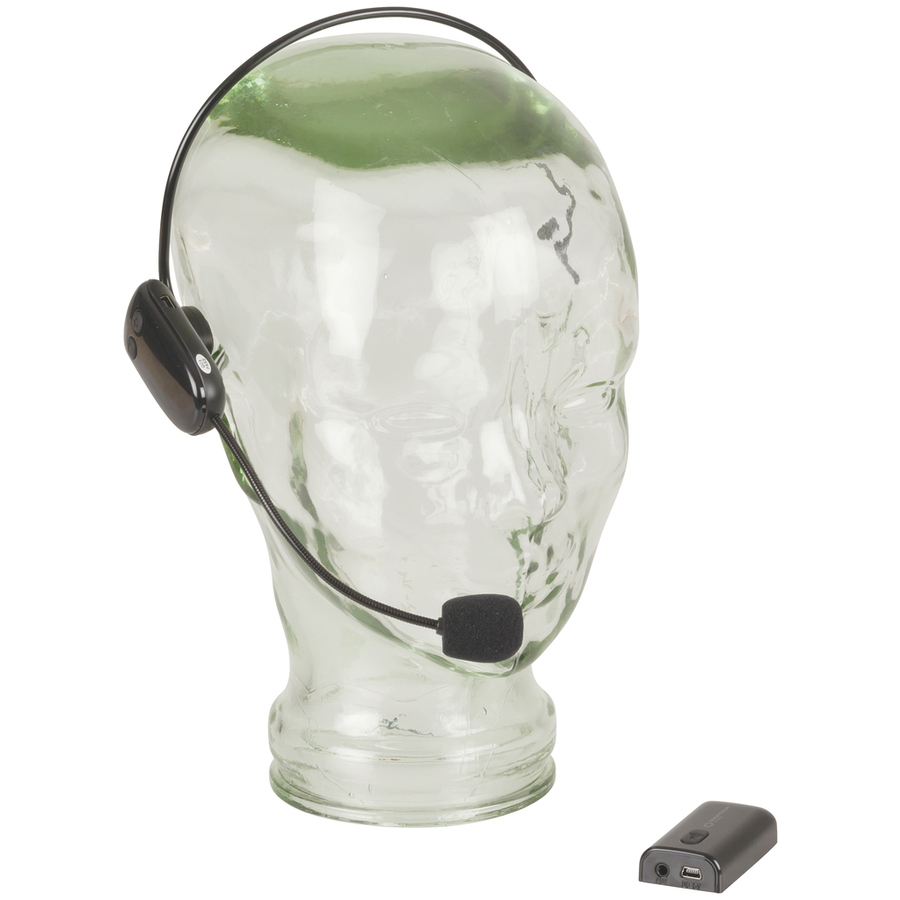

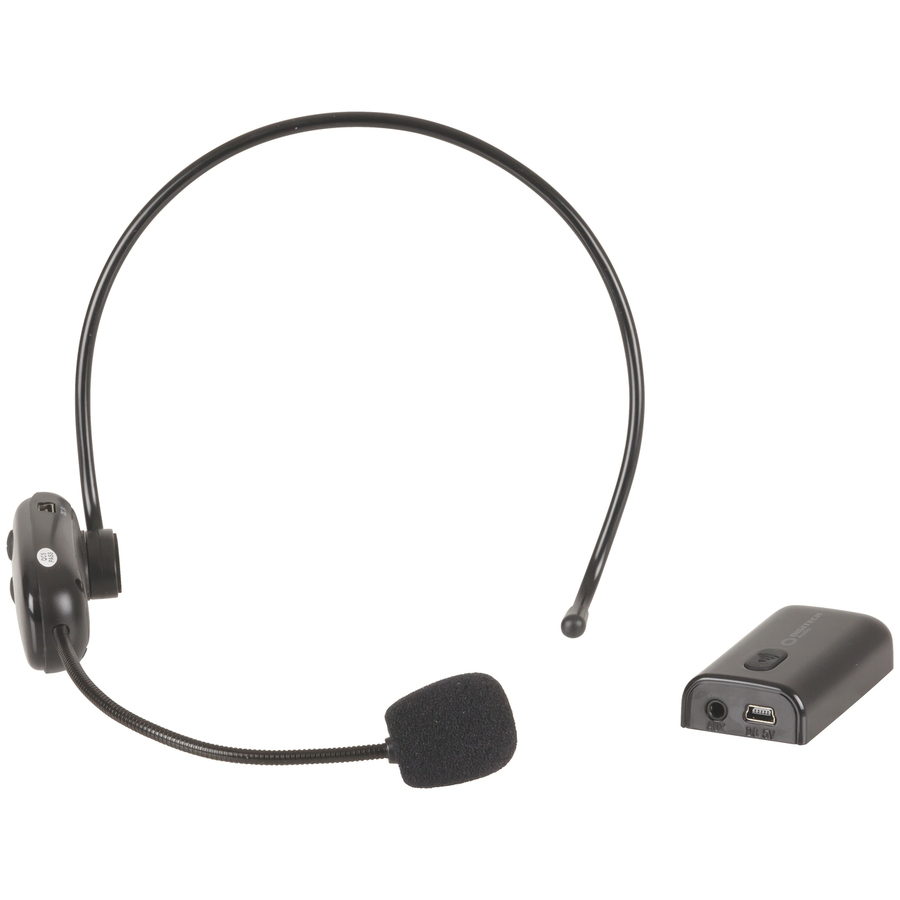

Using high quality UHF transmission between the headset and receiver, this kit provides you with great quality audio reproduction without any messy wiring. The receiver provides a simple 3.5mm AUX connection for a Hi-Fi or PA system, with multiple adaptors for maximum compatibility. The headset itself has no external pack - everything is contained right there within the headset itself. Fully rechargeable, you’ll get 4-8 hours of talk time from a 2-3 hour charge. If you prefer to hold the microphone, it’s easily detached from the head bracket for that purpose as well. Simple to setup and easy to use for a variety of applications. Includes 2-Way USB charging cable, 3.5mm plug to 3.5mm plug adaptor and 6.5mm plug to 3.5mm socket adaptor.


    Specifications

    Additional Dimensions


    Dimension for
    Receiver
    Height
    135mm, 15mm
    Width
    150mm, 33mm
    Depth
    130mm
    Weight
    44g, 25g

    Product Dimensions


    Length
    65mm
    Height
    135mm, 15mm
    Width
    150mm, 33mm
    Weight
    44g, 25g

    Wireless Microphone


    Microphone Channels
    1ch
    Receiver Type
    Compact
    Modulation Type
    FM
    Channel A Carrier Frequency
    520MHz-526MHz
    Output Connection
    3.5mm Mono

    Microphone


    Impedence
    2.2k?
    Sensitivity
    -61dB
    Polar Pattern
    Unidirectional
    Sensitivity Tolerance
    ±1.0units
    Frequency Response
    30Hz-23kHz

    Wireless Transmission


    Transmission range
    10m
    Transmission frequency
    520MHz
    Transmission Channels
    1ch

    Power from rechargeable battery


    USB recharge time
    2hr-3hr
    Type
    Lithium Ion
    Shape
    Lithium Rechargeable Battery Cell/Pack
    Run time
    4hr-8hr
    Capacity
    380mAh
    Voltage
    3.7V
    Battery quantity
    2pc
    Rechargeable battery required to power
    Transmitter, Receiver
    Batteries replaceable
    Batteries included
    USB rechargeable

    Classified as dangerous goods


    Dangerous in Road Freight
    DG Class
    9
    Dangerous in Air Freight
    DG UN Number
    3481
    DG Pack Group
    II - Medium Danger
    DG Ship Name
    3481 - Lithium Ion Batteries Packed In Equipment
    DG Hazardous Chemical Code
    4W
    Battery Watt Hour Rating (Required for Lithium Batteries)
    2.82Wh

    Product Availability


    Availability
    Stocked item

    Packaged Dimensions


    Packaged Length
    18cm
    Packaged Width
    14cm
    Packaged Weight
    0.169kg
    Packaged Volume
    1.638l
    Packaged Height
    6.5cm
    Warranty: 12 Months
