CAT. No. AM4134

UHF Wireless Microphone & Receiver
product image thumb
product image thumb
product image thumb
product image thumb

UHF Wireless Microphone & Receiver

$89.95
Add wireless functionality to your wired-setup with this plug-in receiver and wireless UHF microphone. It provides standard 6.5mm plug-in functionality to suit just about any PA system or amplifier.

Out of Stock

Description

Batteries Included
Hazardous Materials
Wireless

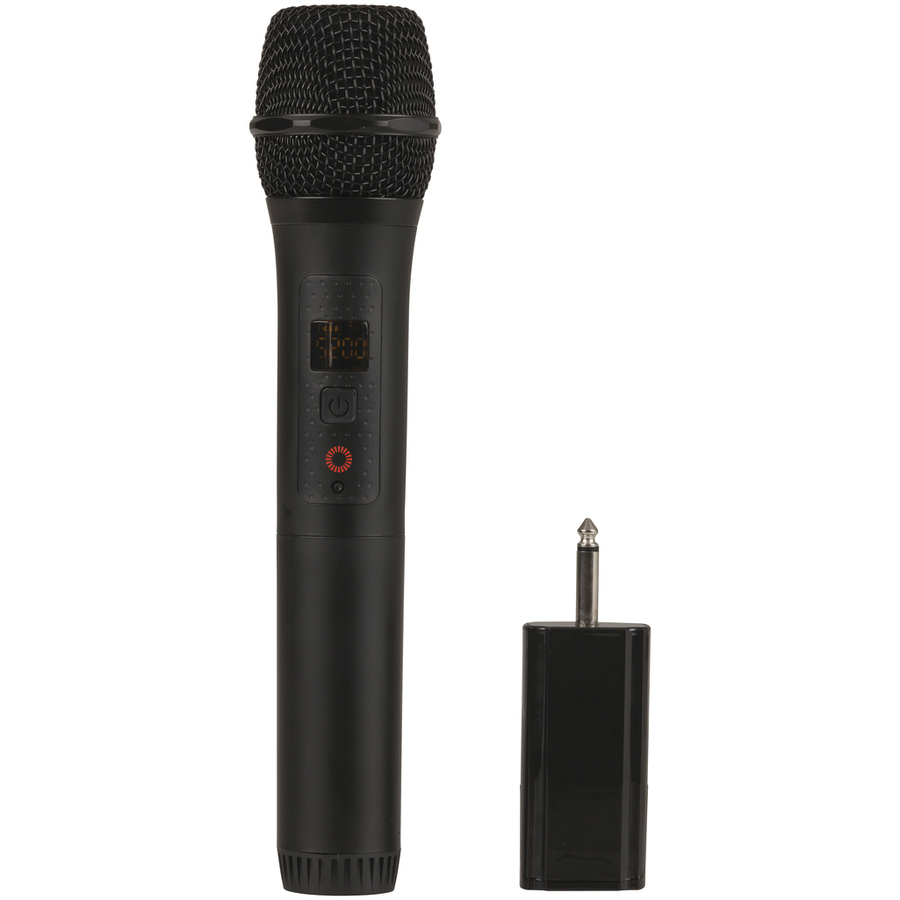

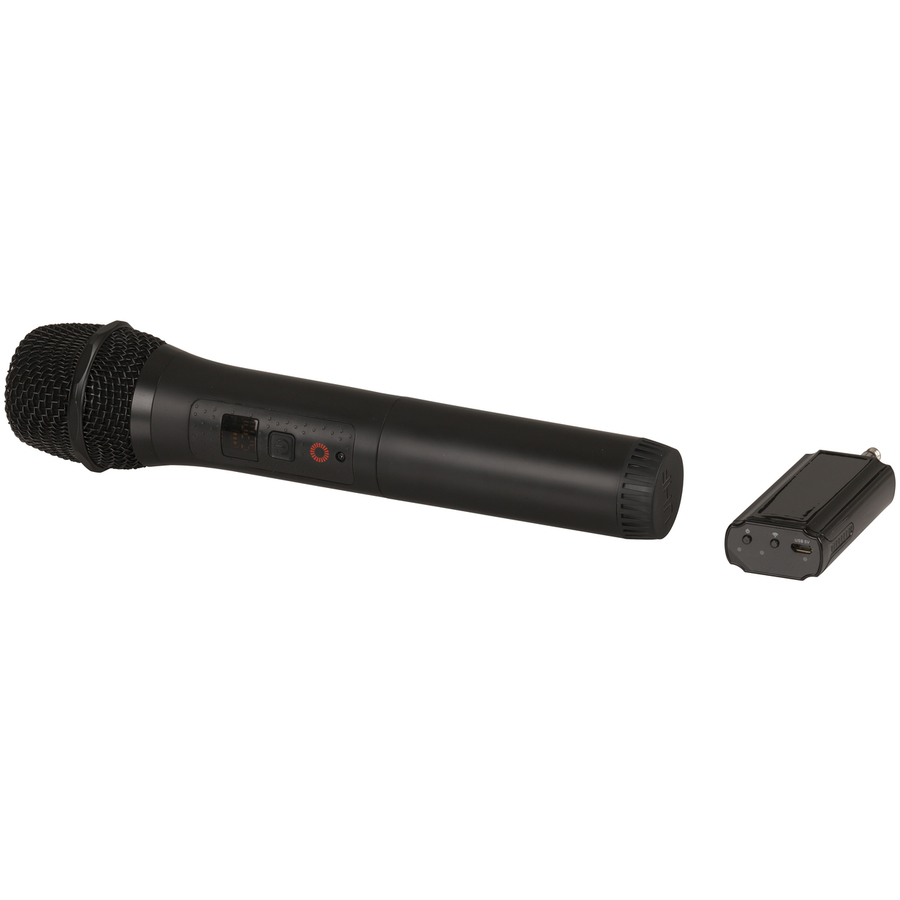

Add wireless functionality to your wired-setup with this plug-in receiver and wireless UHF microphone. It provides standard 6.5mm plug-in functionality to suit just about any PA system or amplifier.

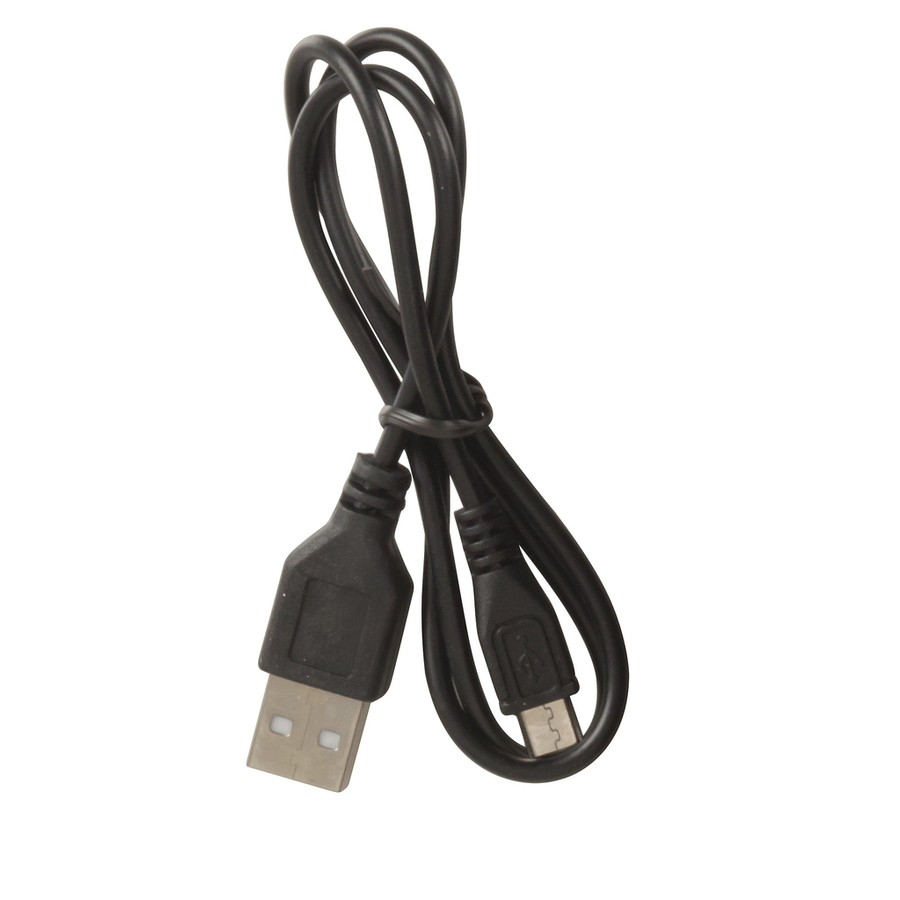

The microphone is powered by 2 x AA batteries (not included) and the receiver is USB rechargeable which is ideal for functions, weddings or street performers. Features up to 40m range and has 7 selectable UHF channels to reduce interference. Includes USB charging cable.

Specifications:
Microphone Type: Omni-Directional
UHF Frequency: 520-526MHz
Transmission Distance: Up to 40m
Receiver Output: 6.5mm
Frequency Response: 30Hz-20KHz
Sensitivity: ?54dB (+?3dB)
Working Time: Up to 9 Hours (Microphone)
                      Up to 5 Hours (Receiver)
Charging Time: 3-4 Hours
Batteries: 2 x AA (Microphone)
               Li-ion 3.7V, 550mAh (Receiver)
Power: 5VDC, 500mA (Micro B USB) (Receiver)
Dimensions: 250(L) x 54(Dia)mm (Microphone)
                   105(L) x 36(W) x 19(H) (Receiver)

    Specifications

    Wireless Microphone


    Microphone Channels
    7ch
    Modulation Type
    FM
    Channel A Carrier Frequency
    700MHz-730MHz

    Microphone


    Impedence
    600?
    Type
    Handheld
    Sensitivity
    -54dB
    Polar Pattern
    Omnidirectional

    Additional Dimensions


    Length
    255mm
    Dimension for
    Transmitter
    Dimensions details
    Microphone
    Diameter
    57mm
    Weight
    223g, 45gr

    Power from disposable battery - Additional


    Battery used for
    Transmitter
    Battery quantity
    2pc
    Size / Shape
    AA
    Batteries can be replaced

    Power from rechargeable battery


    Mains charging charge time
    4hr
    Shape
    Lithium Rechargeable Battery Cell/Pack
    Voltage
    3.7V
    Rechargeable battery required to power
    Main Product
    Batteries included

    Product Dimensions


    Height
    19mm
    Dimensions for
    Receiver
    Width
    36mm
    Depth
    105mm
    Weight
    223g, 45gr

    Classified as dangerous goods


    Dangerous in Road Freight
    DG Class
    9
    Dangerous in Air Freight
    DG UN Number
    3481
    DG Pack Group
    Not Required
    DG Ship Name
    3481 - Lithium Ion Batteries Packed In Equipment
    DG Hazardous Chemical Code
    4W
    Battery Watt Hour Rating (Required for Lithium Batteries)
    2.035Wh

    Product Availability


    Availability
    Stocked item

    Packaged Dimensions


    Packaged Length
    28.7cm
    Packaged Width
    6.4cm
    Packaged Weight
    0.378kg
    Packaged Volume
    1.873536l
    Packaged Height
    10.2cm
