Nextech 7dBi Magnetic Mount 4G5G Antenna
Nextech 7dBi Magnetic Mount 4G5G Antenna

CAT. No. AR3344

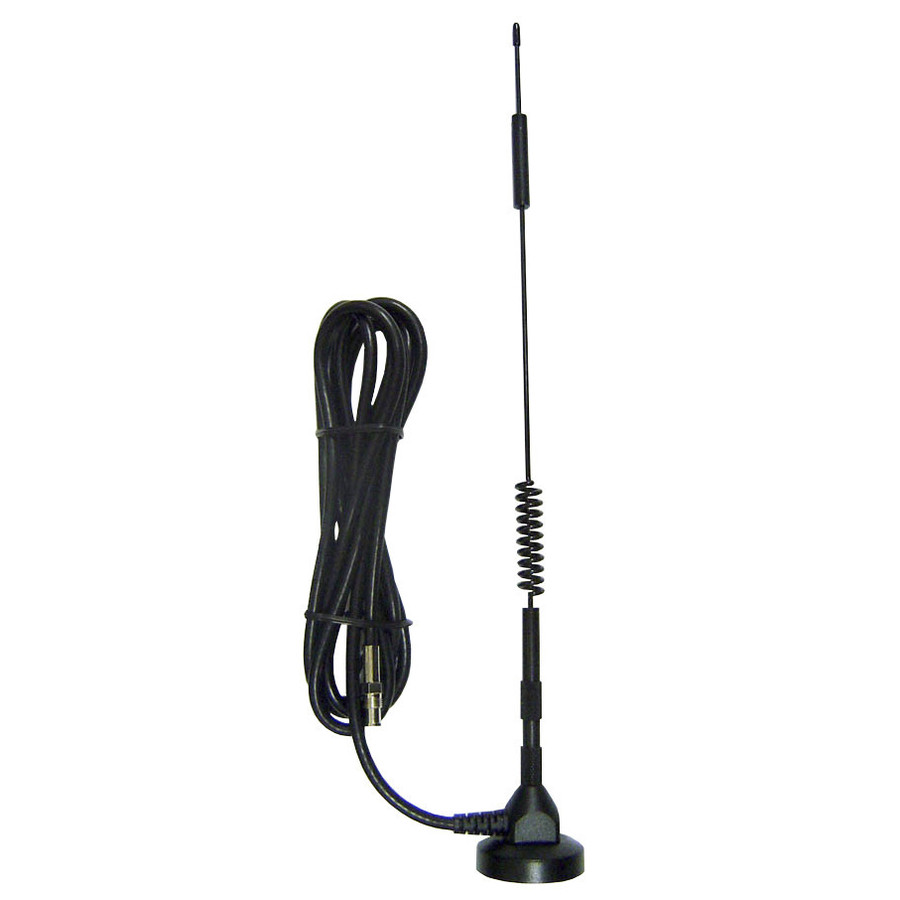

Nextech 7dBi Magnetic Mount 4G5G Antenna
product image thumb

Nextech 7dBi Magnetic Mount 4G5G Antenna

$92.95
Features a strong magnetic base so you can fix it to the roof of your vehicle or any other steel surface. It comes with a 3m cable terminated with an SMA male connector.
Available

Description

Designed to help boost 4G/5G data signals for a reliable flow of data so you can continue communicating even when in difficult reception areas. Supports 700~960, 1710~2170, 2500~2700MHz and 700 - 3800MHz frequency ranges.

Features:

  • Wide frequency range
  • VSWR is less then 2.0:1
  • 50 Ohm impedance
  • 3 metre lead with SMA plug termination
  • Magnetic base

    Specifications

    IT Communications Antenna

    Network Type
    		 4G, 5G
    Polarization
    		 Vertical
    Type
    		 Dipole
    Maximum Transmitter Power
    		 50W
    V.S.W.R
    		 ?2.0:1
    Radiation
    		 Omnidirectional
    Antenna Frequency
    		 700MHz-3800MHz
    Impedance
    		 50
    Device Connection
    		 SMA
    Antenna Gain
    		 7dBi

    Product Mounting

    Mounting Method
    		 Magnetic

    Operating Temperature

    Operating Temperature
    		 -30°C-70°C

    Storage Temp Details

    Storage Temperature
    		 -35°C-75°C

    Product Dimensions

    Length
    		 435mm
    Cable length
    		 3m
    Dimensions for
    		 Antenna
    Diameter
    		 40mm
    Weight
    		 300g

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 40.6cm
    Packaged Width
    		 12.6cm
    Packaged Weight
    		 0.326kg
    Packaged Volume
    		 2.455488l
    Packaged Height
    		 4.8cm
