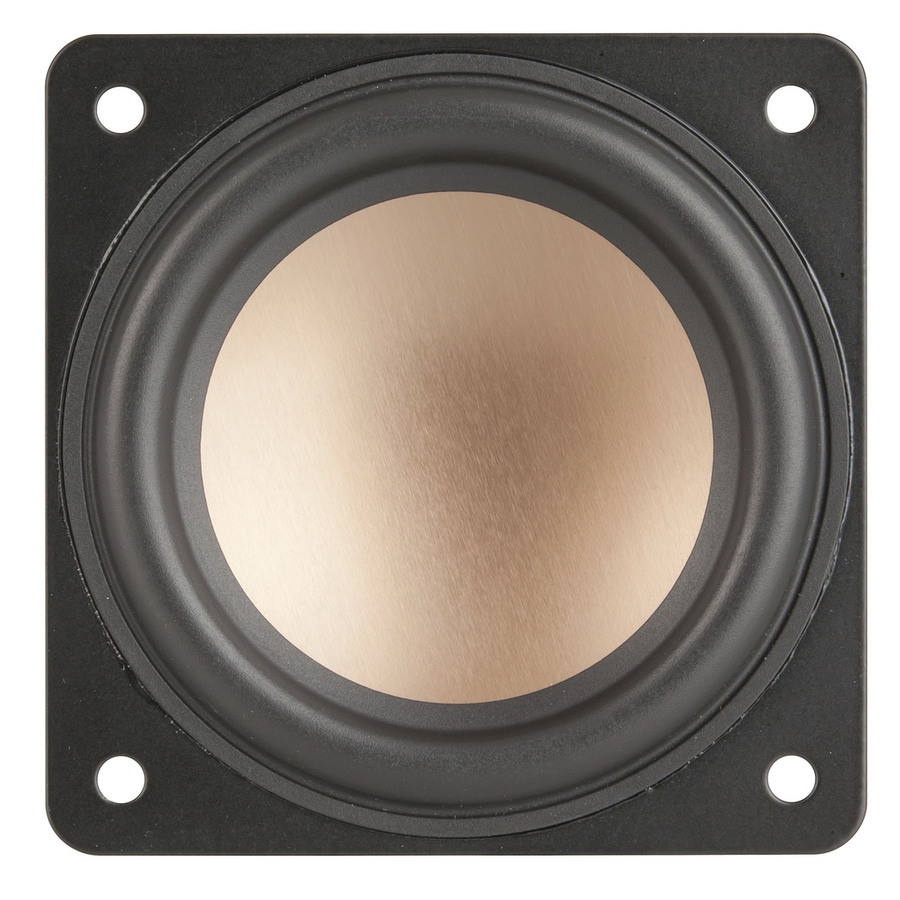

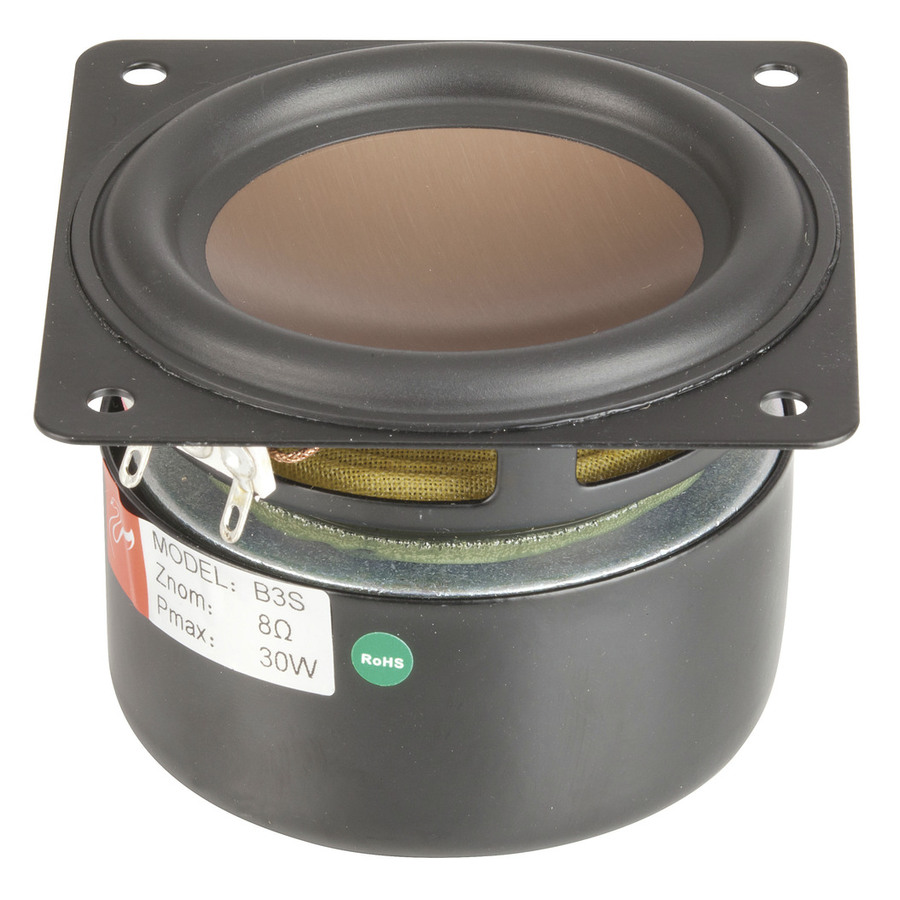

Full range speakers suitable for use in surround speakers in home theatre system, computer multimedia speakers and portable speaker designs. It has advanced alloy cone design coated with special damping material.

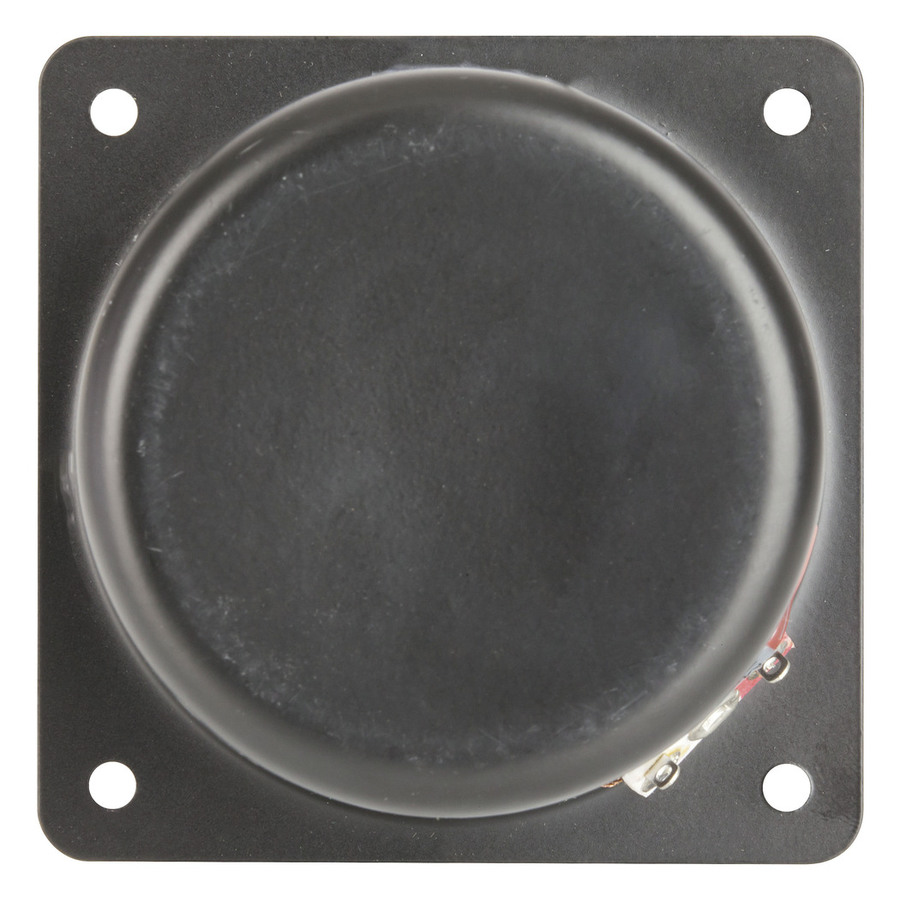

• 4 x screw mounting holes

General Data
• Max Power Handling (Pmax)(W): 30
• Weight (M)(Kg): 0.53

Electrical Data

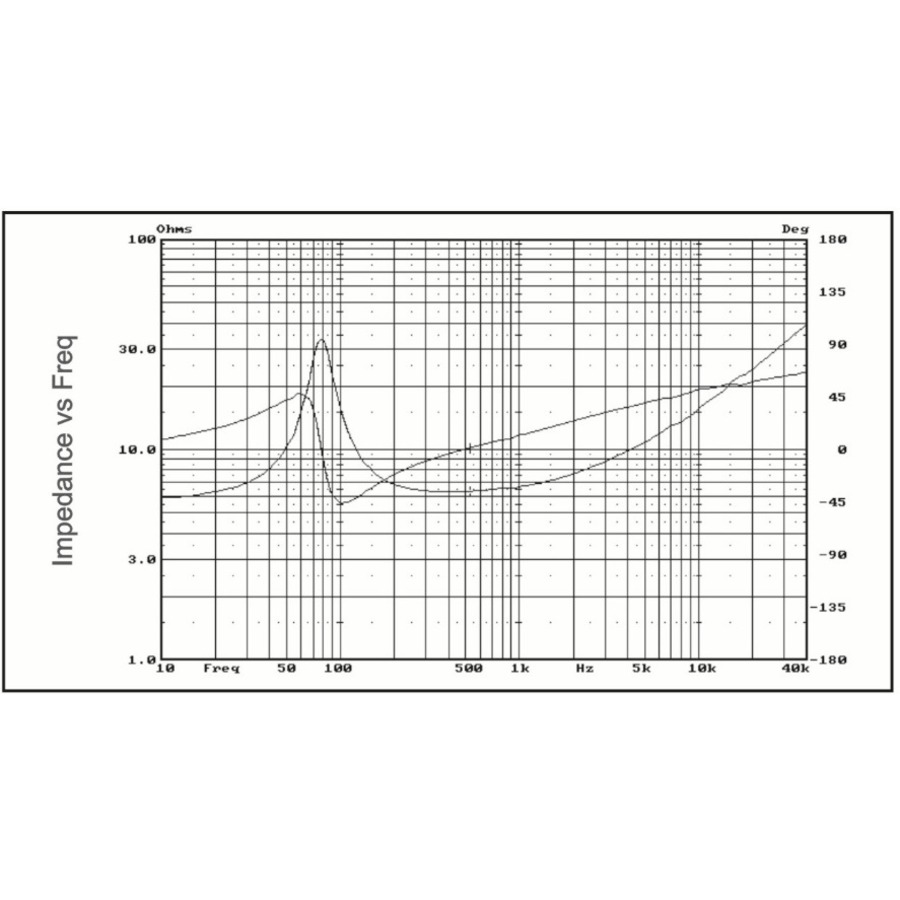

• Nominal Impedance (Z)(Ω)): 8
• DC (Re)(Ω): 6.5

Voice Coil and Magnet Parameters
• VC Diameter (mm): 20
• VC Length (H)(mm): 9
• VC Former: Kapton
• VC Frame: CCAW
• Magnet System: shielded
• Magnet Former: Ferrite
• Force Factor (BL)(N/A): 3.06
• Gap Height (He)(mm): 3
• Linear Excursion (Xmax)(mm): 3

T-S Parameters
• Suspension Compliance (Cms)(uM/N): 920
• Mechanical Q (Qms): 3.75
• Electrical Q (Qes): 1.15
• Total Q (Qts): 0.88
• Moving Mass (Mms)(g): 2.6
• Effective Piston Area (Sd)(m2): 0.003
• Equivalent Air Volume (Vas)(L): 1.19
• Resonance Frequency (Fs)(Hz): 100
