CAT. No. CW2196

Woofer Speaker Driver - 8 Inch
product image thumb
product image thumb
product image thumb

Woofer Speaker Driver - 8 Inch

$44.95
These Response woofers are excellent for replacement or for new speaker design constructions. Not only are they price competitive and perform very well, but they also look fantastic!

Out of Stock

Description

1 Year Warranty

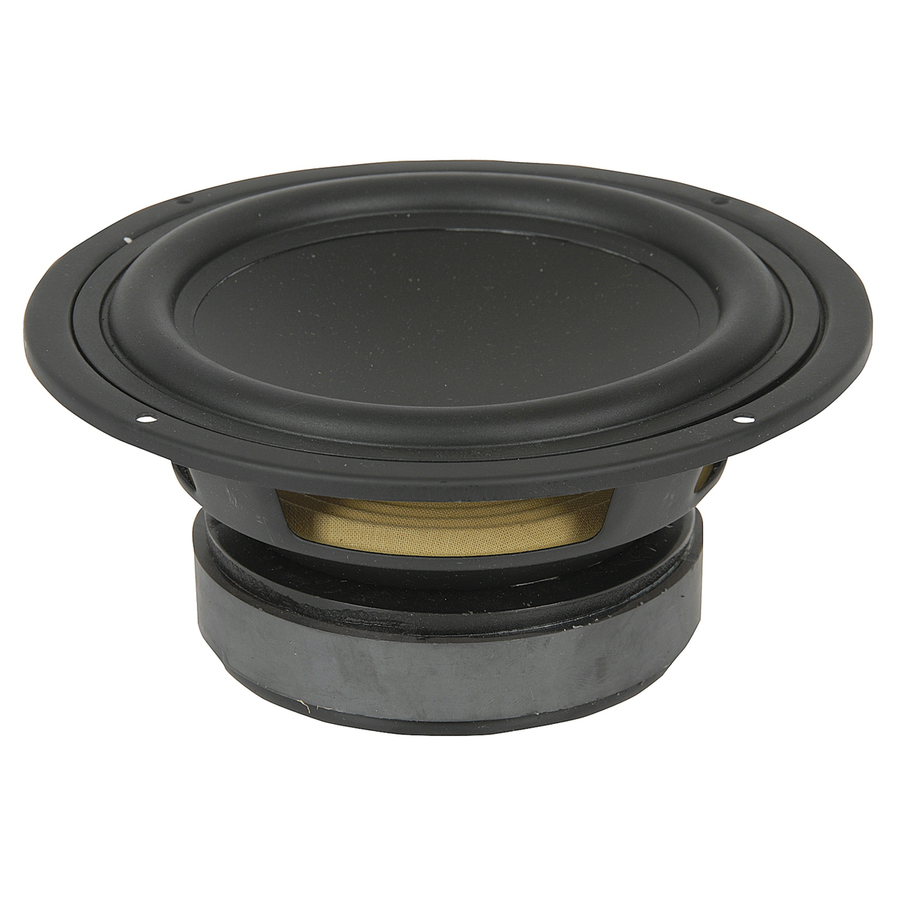

These Response woofers are excellent for replacement or for new speaker design constructions. Not only are they price competitive and perform very well, but they also look fantastic!

The concave treated paper cone matched with rubber surround provides smooth overall response. Equipped strong steel frame baskets, high power magnet and voice coils, these drivers will produce massive quantities of clean bass output for any musical application.

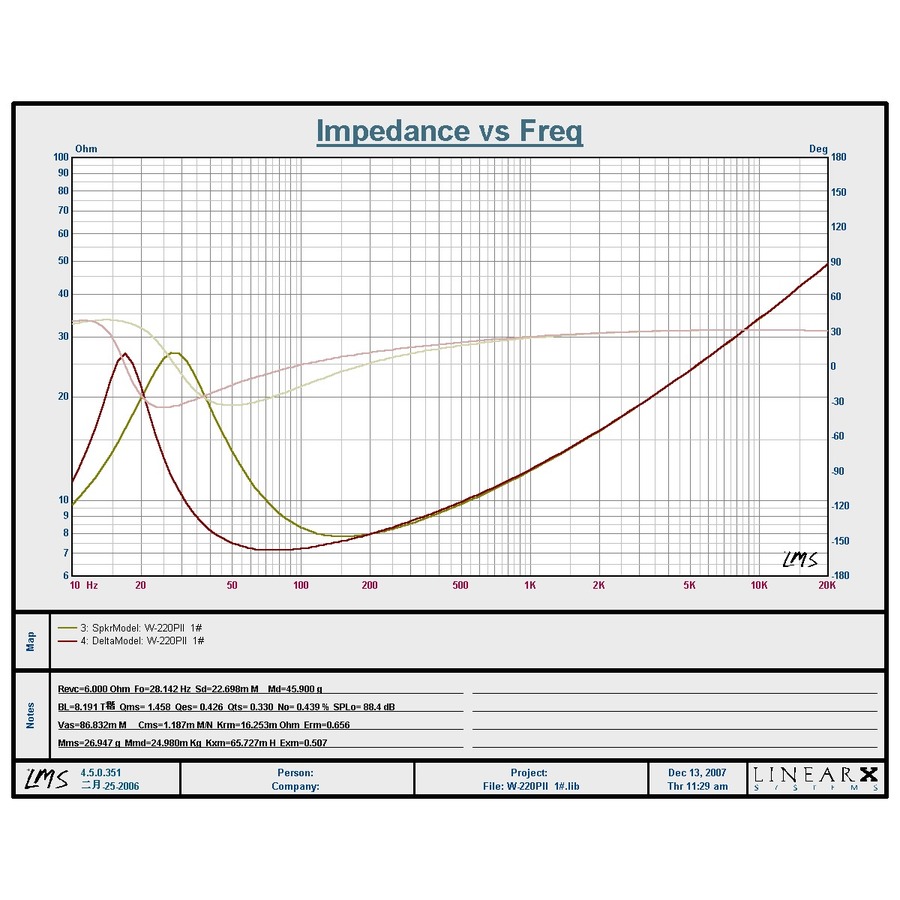

    Specifications

    Speaker Specifications

    Resonant Frequency
    		 28.1Hz
    Nominal Impedance
    		 8?
    Mounting Hole Diameter (B)
    		 212mm
    Recommended Speaker Box Volume
    		 42l
    Driver Material
    		 Coated Paper
    Mechanical Q (Q<sub>ms</sub>)
    		 1.46&nbsp;
    Speaker Type
    		 Woofer Driver
    Driver Channels
    		 Single Driver
    Total Q (Q<sub>ts</sub>)
    		 0.33&nbsp;
    Electrical Q Factor (Q<sub>es</sub>)
    		 0.43&nbsp;
    RMS Power Rating
    		 90W
    Equivalent Volume (V<sub>as</sub>)
    		 42l

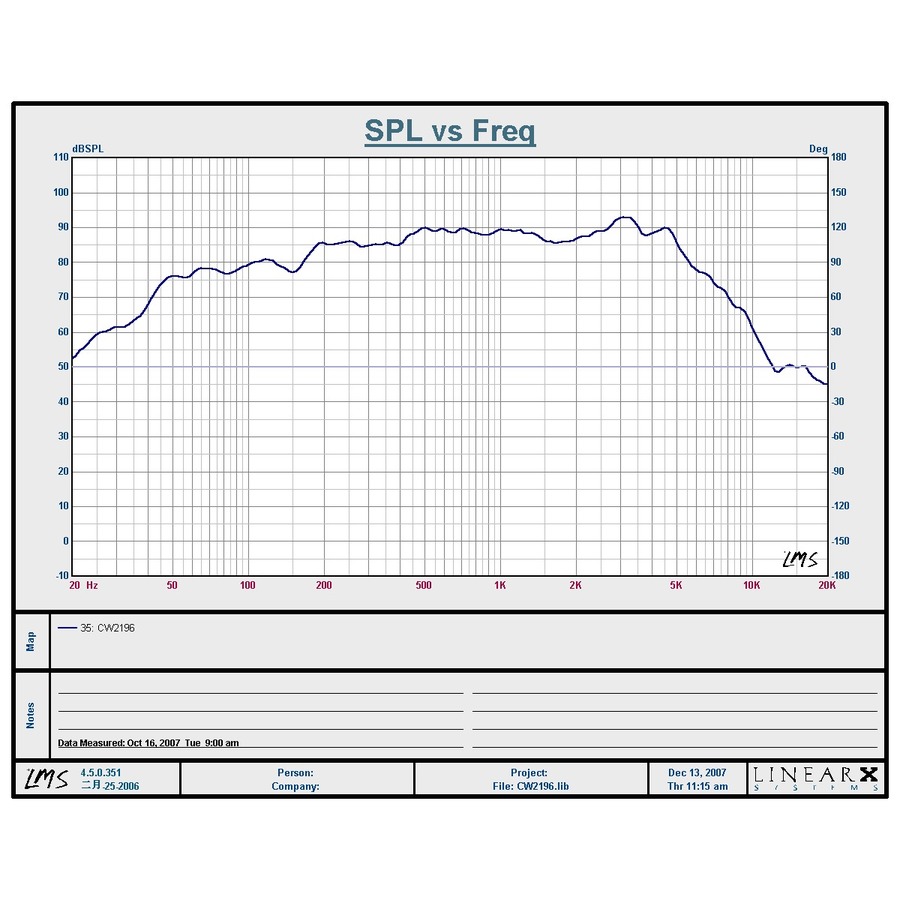

    Frequency Response
    		 38Hz-4.5kHz
    Side-to-Side Diameter (A)
    		 220mm
    DC Coil Resistance (R<sub>e</sub>)
    		 6?
    Sensitivity (SPL@1W
    1m)
    Cutout Diameter (C)
    		 182mm
    Insert Depth (D)
    		 92mm

    Cutout Required

    Cutout shape
    		 Round

    Product Mounting

    Attachment / Securing Method
    		 Screw Down
    Mounting Method
    		 Front of Panel

    Product Dimensions

    Diameter
    		 220mm

    Packaged Dimensions

    Packaged Length
    		 23cm
    Packaged Width
    		 23cm
    Packaged Weight
    		 2.75kg
    Packaged Volume
    		 5.819l
    Packaged Height
    		 11cm

    Product Availability

    Availability
    		 Stocked item
    Warranty: 12 Months
