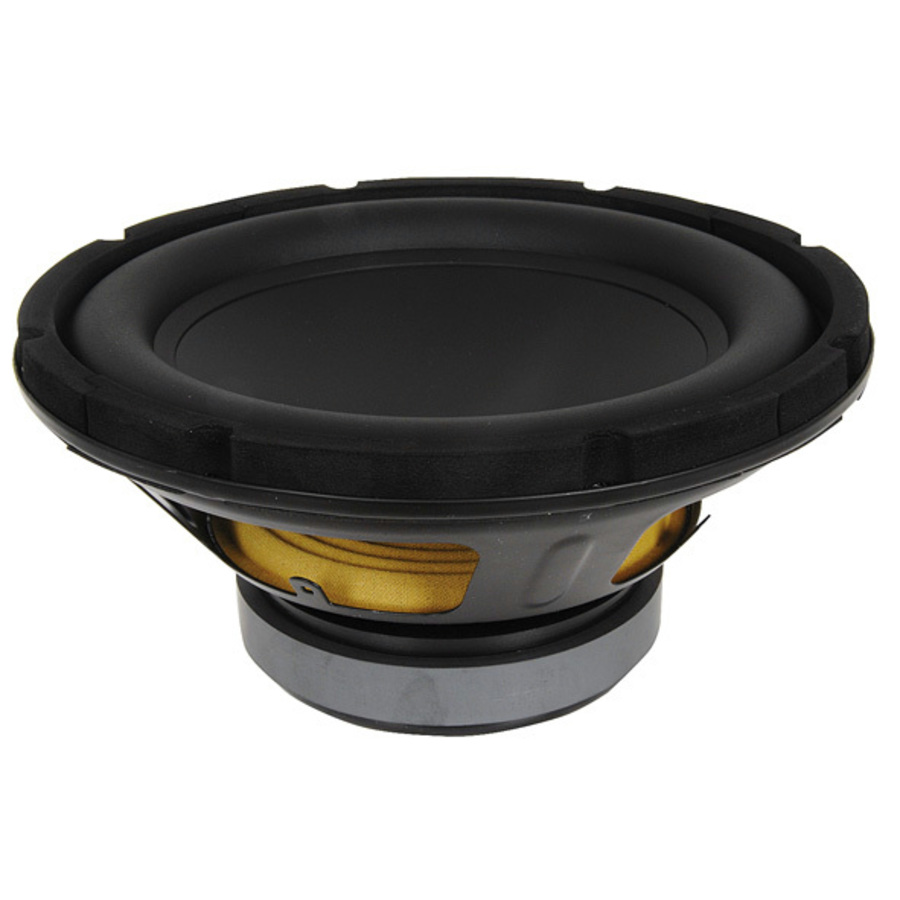

Woofer Speaker Driver - 10 Inch
Woofer Speaker Driver - 10 Inch
Woofer Speaker Driver - 10 Inch
Woofer Speaker Driver - 10 Inch

CAT. No. CW2198

Woofer Speaker Driver - 10 Inch
product image thumb
product image thumb
product image thumb

Woofer Speaker Driver - 10 Inch

$79.95
Response speaker drivers are excellent for replacement or for new speaker design constructions Available in multiple sizes Coated paper cone

Out of Stock

Description

1 Year Warranty

These Response woofers are excellent for replacement or for new speaker design constructions. Not only are they price competitive and perform very well, but they also look fantastic!

The concave treated paper cone matched with rubber surround provides smooth overall response. Equipped strong steel frame baskets, high power magnet and voice coils, these drivers will produce massive quantities of clean bass output for any musical application.

    Specifications

    Speaker Specifications

    Resonant Frequency
    		 59.8Hz
    Nominal Impedance
    		 8?
    Mounting Hole Diameter (B)
    		 245mm
    Recommended Speaker Box Volume
    		 80l
    Driver Material
    		 Coated Paper
    Mechanical Q (Q<sub>ms</sub>)
    		 1.01&nbsp;
    Speaker Type
    		 Woofer Driver
    Driver Channels
    		 Single Driver
    Total Q (Q<sub>ts</sub>)
    		 0.32&nbsp;
    Electrical Q Factor (Q<sub>es</sub>)
    		 0.47&nbsp;
    RMS Power Rating
    		 225W
    Equivalent Volume (V<sub>as</sub>)
    		 21.76l
    Frequency Response
    		 40Hz-1kHz
    Side-to-Side Diameter (A)
    		 258mm
    DC Coil Resistance (R<sub>e</sub>)
    		 5.41?
    Sensitivity (SPL@1W
    1m)
    Cutout Diameter (C)
    		 235mm
    Insert Depth (D)
    		 110mm

    Cutout Required

    Cutout shape
    		 Round

    Product Mounting

    Attachment / Securing Method
    		 Screw Down
    Mounting Method
    		 Front of Panel

    Product Dimensions

    Diameter
    		 258mm

    Packaged Dimensions

    Packaged Length
    		 27.3cm
    Packaged Width
    		 27.6cm
    Packaged Weight
    		 3.92kg
    Packaged Volume
    		 11.3022l
    Packaged Height
    		 15cm

    Power Rating

    Maximum Power
    		 450W

    Product Availability

    Availability
    		 Stocked item
    Warranty: 12 Months

    Downloads

    CW2198-dataSheetMain.pdf
