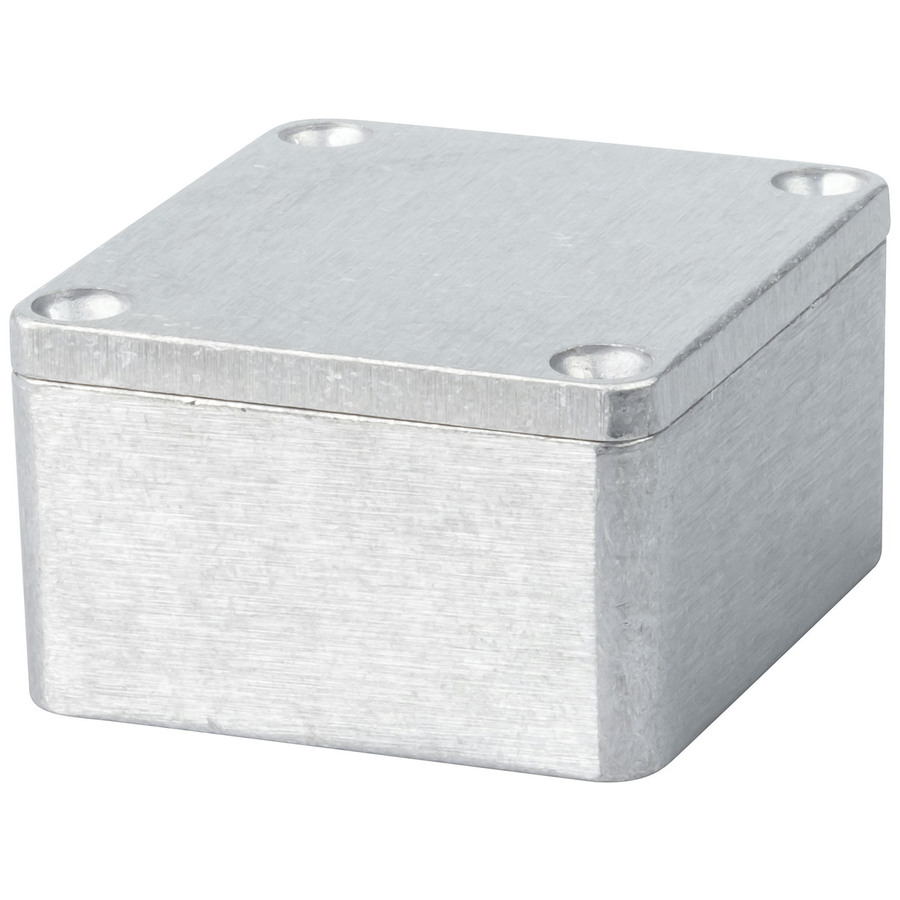

Sealed Diecast Aluminum Enclosure - 64 x 58 x 35
Sealed Diecast Aluminum Enclosure - 64 x 58 x 35
Sealed Diecast Aluminum Enclosure - 64 x 58 x 35

CAT. No. HB5030

Sealed Diecast Aluminum Enclosure - 64 x 58 x 35
product image thumb
product image thumb

Sealed Diecast Aluminum Enclosure - 64 x 58 x 35

$15.95
Ideal for housing sensitive electronic assemblies
Available

Description

Ideal for housing sensitive electronic assemblies, pnumatic, hydraulic and electronic devices in

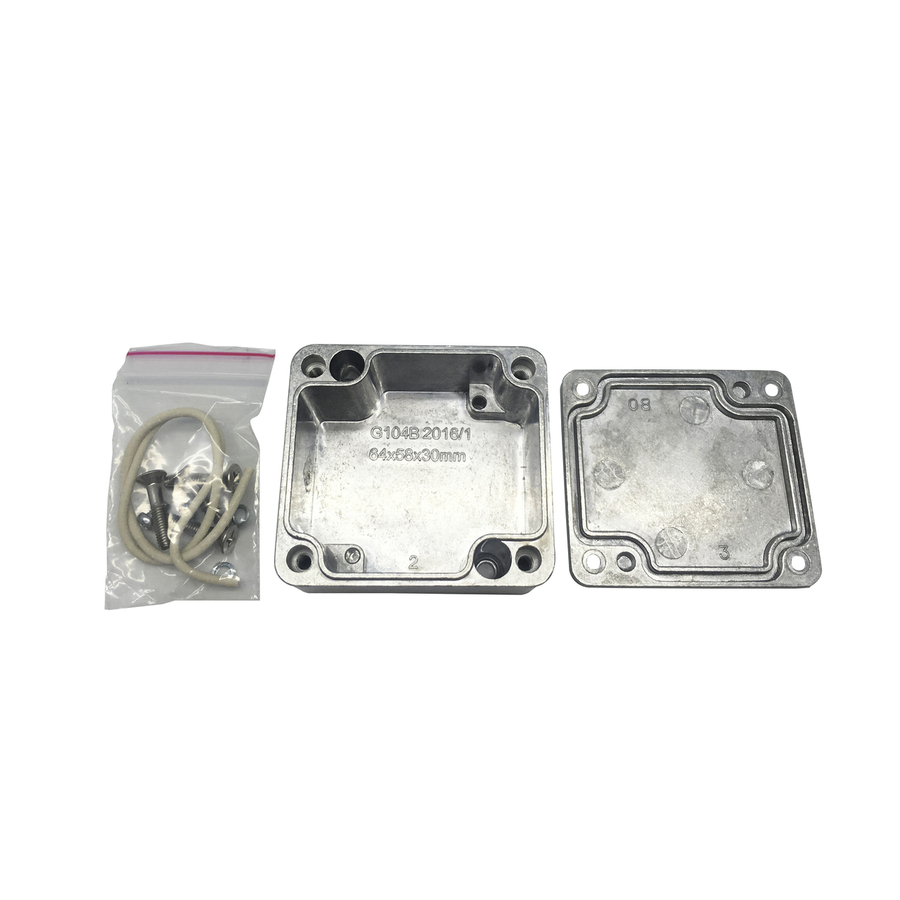

commercial and industrial environments providing effective shielding of EMI and RFI. Designed to IP65 of IEC529 anf NEMA 4 (dust and hoseproof). Internal guide slots for mounting PCB assemblies vertically. Box and lid are made in Aluminium alloy ADC- 10 to Japan Industrial Standard (JIS) in natural finish.

    Specifications

    Product Dimensions

    Height
    		 35mm
    Width
    		 64mm
    Depth
    		 58mm

    Packaged Dimensions

    Packaged Length
    		 6.1cm
    Packaged Width
    		 9.2cm
    Packaged Weight
    		 0.132kg
    Packaged Volume
    		 0.22448l
    Packaged Height
    		 4cm

    Enclosures and Boxes

    Material
    		 Aluminium

    Ingress Protection Rating

    IP Rating
    		 65

    Product Availability

    Availability
    		 Stocked item
