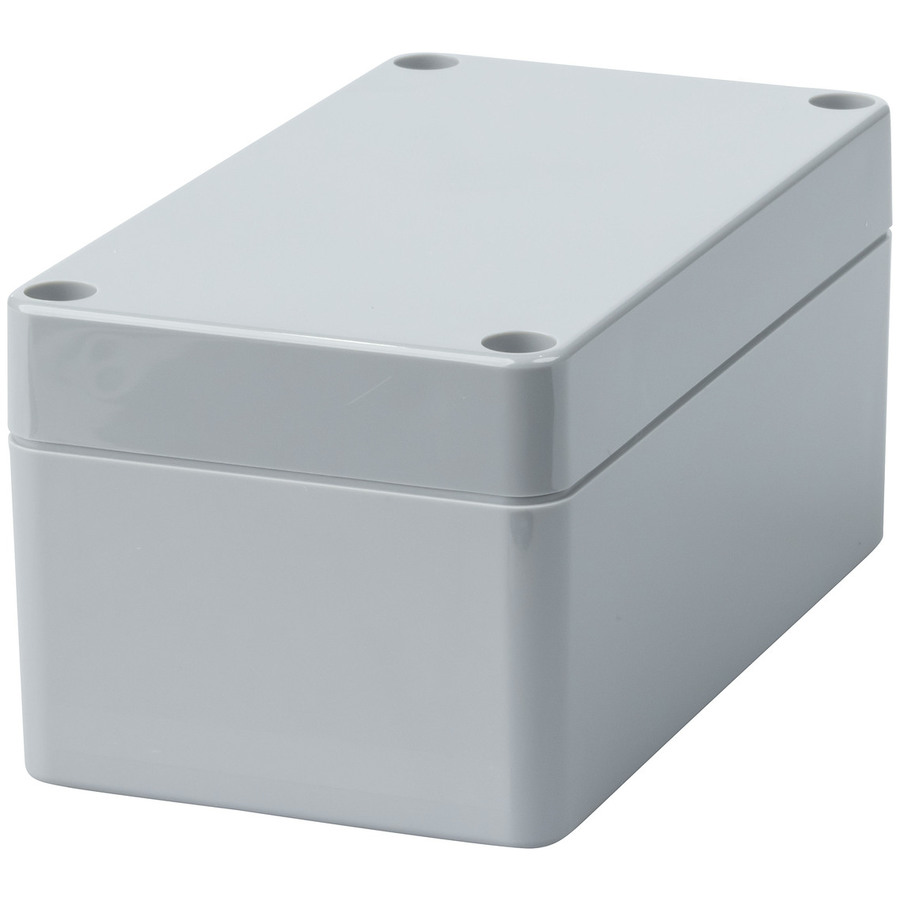

Sealed ABS Enclosure - 115 x 65 x 55mm
Sealed ABS Enclosure - 115 x 65 x 55mm
Sealed ABS Enclosure - 115 x 65 x 55mm

CAT. No. HB6124

Sealed ABS Enclosure - 115 x 65 x 55mm
product image thumb
product image thumb

Sealed ABS Enclosure - 115 x 65 x 55mm

$16.95
Gainta enclosure, made with ABS, moulded in dark grey
Available

Description

Features:
- Operating temperature: -20 to 100 degrees

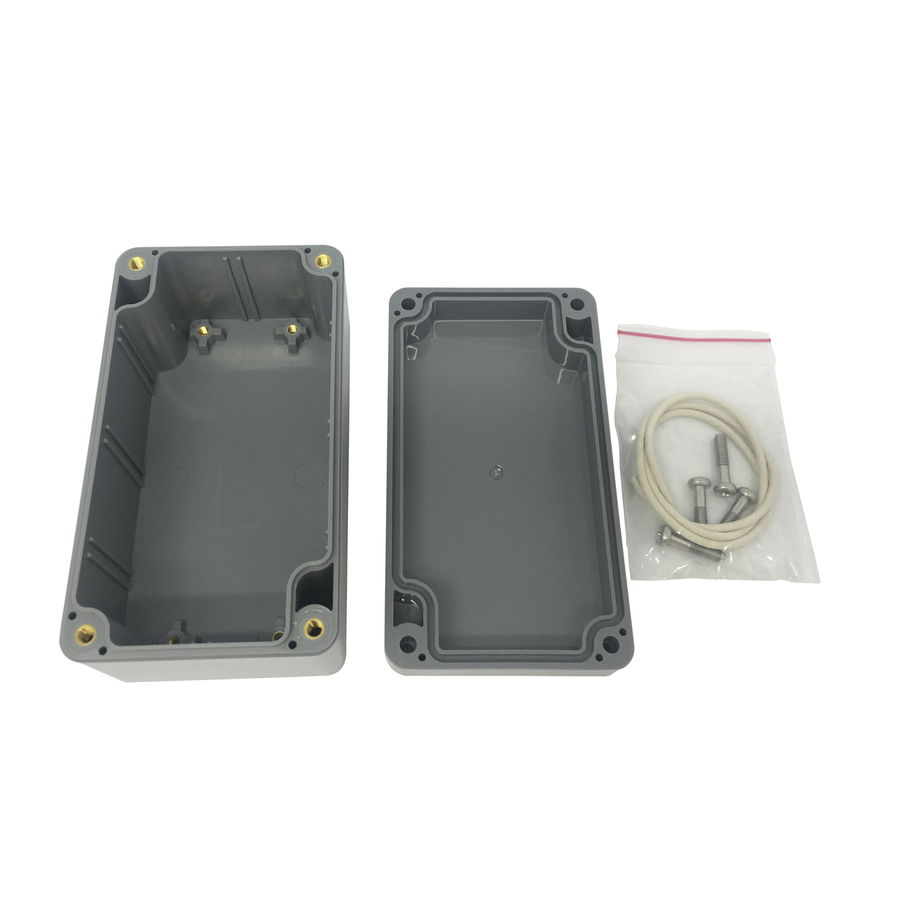

- Bosses on internal base allow fixing of PCBs horizontally, or connection of terminals etc.
- The lid and base incorporate a tongue and groove sealing system with a EPDM gasket- Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts
- Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture and dust
- Internal guide slots for mounting PCB assemblies vertically

    Specifications

    Product Dimensions

    Height
    		 55mm
    Width
    		 115mm
    Depth
    		 65mm

    Packaged Dimensions

    Packaged Length
    		 14.8cm
    Packaged Width
    		 7.2cm
    Packaged Weight
    		 0.13kg
    Packaged Volume
    		 0.650016l
    Packaged Height
    		 6.1cm

    Enclosures and Boxes

    Gasket sealing system
    PCB Internal Guide Slots
    Ventilation Holes
    Material
    		 ABS Plastic (Acrylonitrile Butadiene Styrene)
    Gasket Material
    		 Neoprene
    Internal Mounting Posts
    Lid Screws
    		 4pc

    Product colour

    Colour
    		 Dark Grey

    Ingress Protection Rating

    IP Rating
    		 IP65
    Dust/Particle Ingress Protection
    		 6 - Dust tight, no ingress of dust
    Liquid/Moisture Ingress Protection
    		 5 - Water jets

    Product Availability

    Availability
    		 Stocked item
