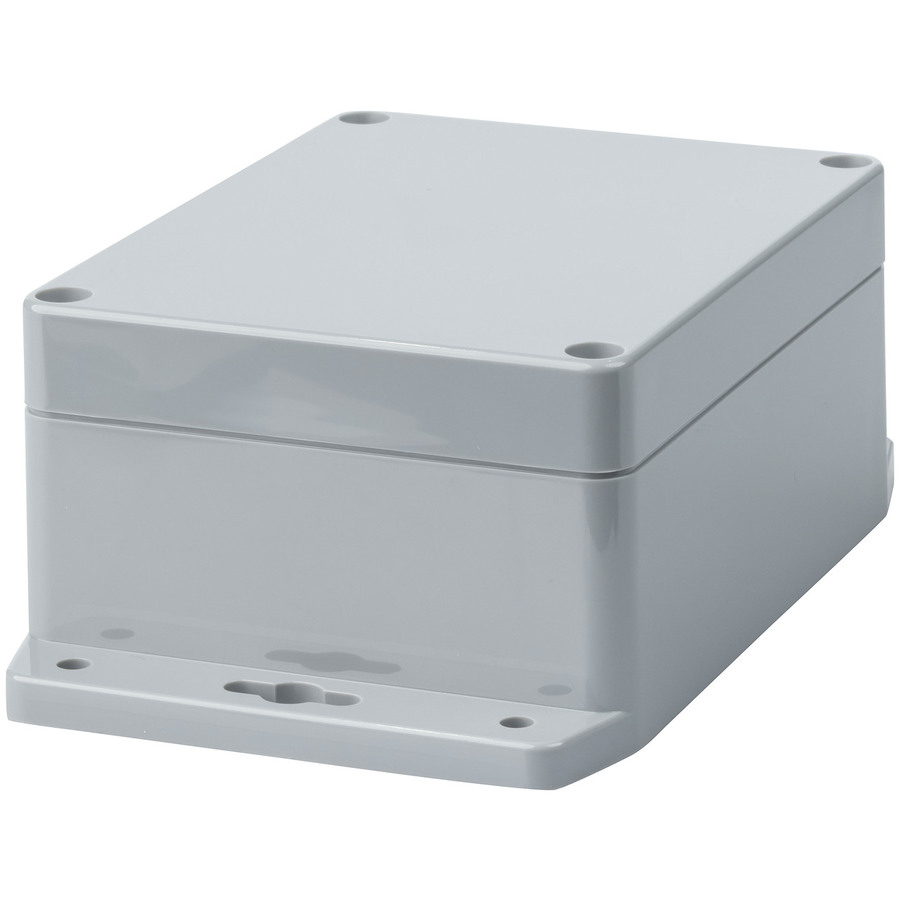

Dark Grey Enclosure with Mounting Flange - 115(W) x 90(D) x 55(H)mm
Dark Grey Enclosure with Mounting Flange - 115(W) x 90(D) x 55(H)mm

CAT. No. HB6127

Dark Grey Enclosure with Mounting Flange - 115(W) x 90(D) x 55(H)mm
product image thumb

Dark Grey Enclosure with Mounting Flange - 115(W) x 90(D) x 55(H)mm

$21.95
Gainta enclosure, made with ABS, moulded in dark grey
Available

Description

5 Year Warranty

Features:

• Operating temperature: -20 to 80 degrees
• Bosses on internal base allow fixing of PCBs horizontally, or connection of terminals etc.
• The lid and base incorporate a tongue and groove sealing system with a EPDM gasket
• Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts
• Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture and dust


    Specifications

    Product Dimensions

    Height
    		 55mm
    Width
    		 115mm, 145mm
    Depth
    		 90mm, 90mm

    Packaged Dimensions

    Packaged Length
    		 14.8cm
    Packaged Width
    		 9.7cm
    Packaged Weight
    		 0.182kg
    Packaged Volume
    		 0.847004l
    Packaged Height
    		 5.9cm

    Additional Dimensions

    Dimensions details
    		 Base Dimensions
    Width
    		 115mm, 145mm
    Depth
    		 90mm, 90mm

    Enclosures and Boxes

    Gasket sealing system
    PCB Internal Guide Slots
    Ventilation Holes
    Material
    		 ABS Plastic (Acrylonitrile Butadiene Styrene)
    Internal Mounting Posts
    Lid Screws
    		 4pc

    Product colour

    Colour
    		 Dark Grey

    Ingress Protection Rating

    IP Rating
    		 IP65
    Dust/Particle Ingress Protection
    		 6 - Dust tight, no ingress of dust
    Liquid/Moisture Ingress Protection
    		 5 - Water jets

    Product Availability

    Availability
    		 Stocked item
    Warranty: 60 Months

    Downloads

    HB6127-dataSheetMain.pdf
