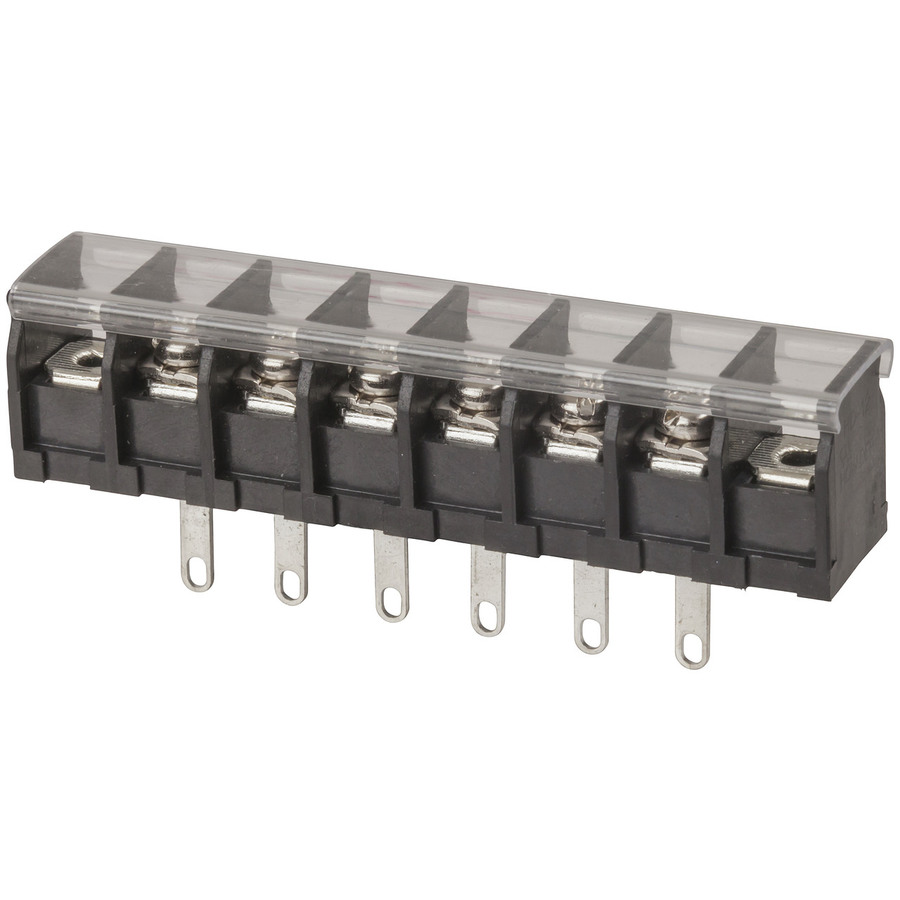

TERMINAL BARRIER PANEL WITH CLEAR COVER 6WAY
TERMINAL BARRIER PANEL WITH CLEAR COVER 6WAY

CAT. No. HM3168

TERMINAL BARRIER PANEL WITH CLEAR COVER 6WAY
product image thumb

TERMINAL BARRIER PANEL WITH CLEAR COVER 6WAY

$8.95
Pitch: 9.5mmBarrier Material: Thermoplastic (UL94V-0), BlackTerminals: Tint Plated Brass (Standard)Screws: Nickel Plated SteelWire Range AWG: 12-22 S...
Available

Description

Barrier Material: Thermoplastic (UL=94V-0), Black
Terminals: Tint Plated Brass (Standard)
Screws: Nickel Plated Steel
Wire Range AWG: 12-22 STR
Cover Material: PC
Insulation withstands voltage AC 2000V/Min
Pole HD-12-? P HD-12-? PH
A (Px9.5)+1.4 (P+2)*9.5+1.4
B (P-1)*9.5 (P+1)*9.5

    Specifications

    Terminal Strip

    Terminal Spacing
    		 9.5mm
    Type
    		 Screw Terminal
    Device
    		 Terminal
    Insulation Dielectric Voltage Rating
    		 2V
    Number of Contacts
    		 6pc
    Attachment Method
    		 Solder Tag
    Insulation Resistance
    		 500M?

    AC Current Rating

    AC current rating
    		 25A

    Product Mounting

    Mounting Method
    		 Panel

    Packaged Dimensions

    Packaged Length
    		 7.6cm
    Packaged Width
    		 2.7cm
    Packaged Weight
    		 0.024kg
    Packaged Volume
    		 0.032832l
    Packaged Height
    		 1.6cm

    Product Availability

    Availability
    		 Stocked item
