3 Way PCB Mount Screw Terminal - 5mm Pitch
3 Way PCB Mount Screw Terminal - 5mm Pitch

CAT. No. HM3173

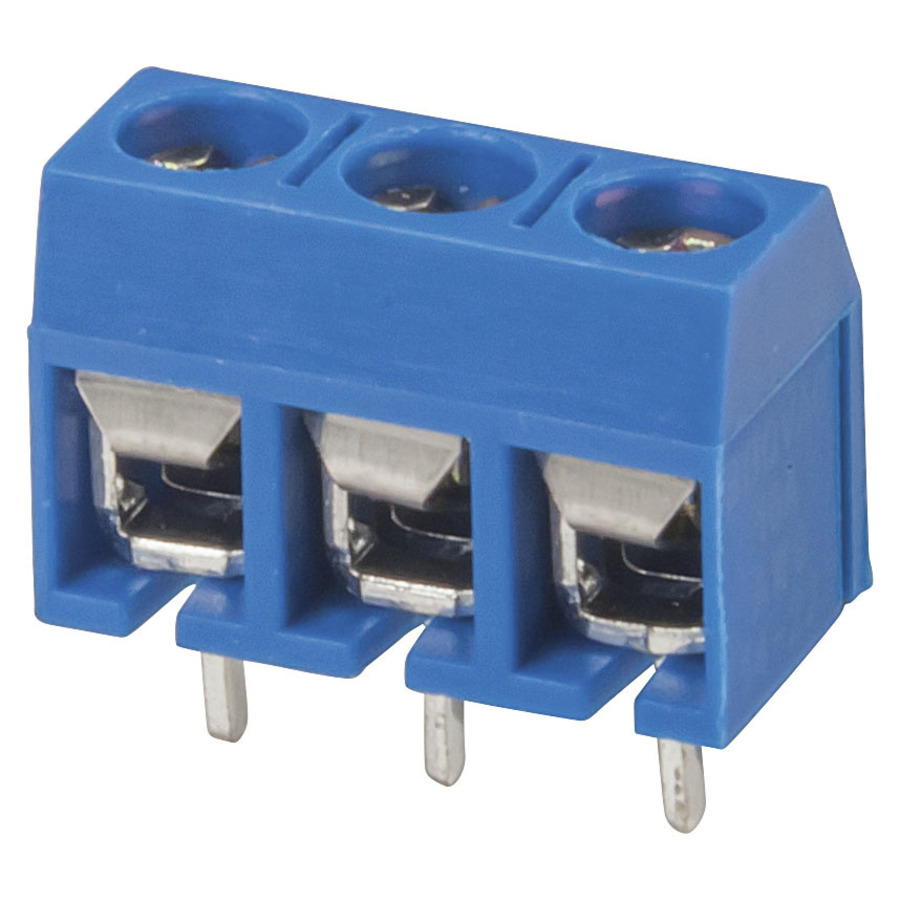

3 Way PCB Mount Screw Terminal - 5mm Pitch
product image thumb

3 Way PCB Mount Screw Terminal - 5mm Pitch

$2.5
Ideal for those situations where wires leave a PCB. Just solder the terminal strip to the PCB and connect wires. 2 way (HM- 3172) and 3 way (HM- 3173)...
Available

Description

Ideal for those situations where wires leave a PCB. Just solder the terminal strip to the PCB and connect wires.

2 way (HM- 3172) and 3 way (HM- 3173) are interlocking, so you can make up whatever size you require using these - see 6 way pictured.


- 3 WAY


    Specifications

    Terminal Strip

    Terminal Spacing
    		 5mm
    Type
    		 Screw Terminal
    Device
    		 Terminal
    Number of Contacts
    		 3pc
    Attachment Method
    		 Screw Terminals

    Product Mounting

    Mounting Method
    		 PCB

    Product colour

    Colour
    		 Blue

    Packaged Dimensions

    Packaged Length
    		 7cm
    Packaged Width
    		 1.5cm
    Packaged Weight
    		 0.003kg
    Packaged Volume
    		 0.01575l
    Packaged Height
    		 1.5cm

    Product Availability

    Availability
    		 Stocked item
