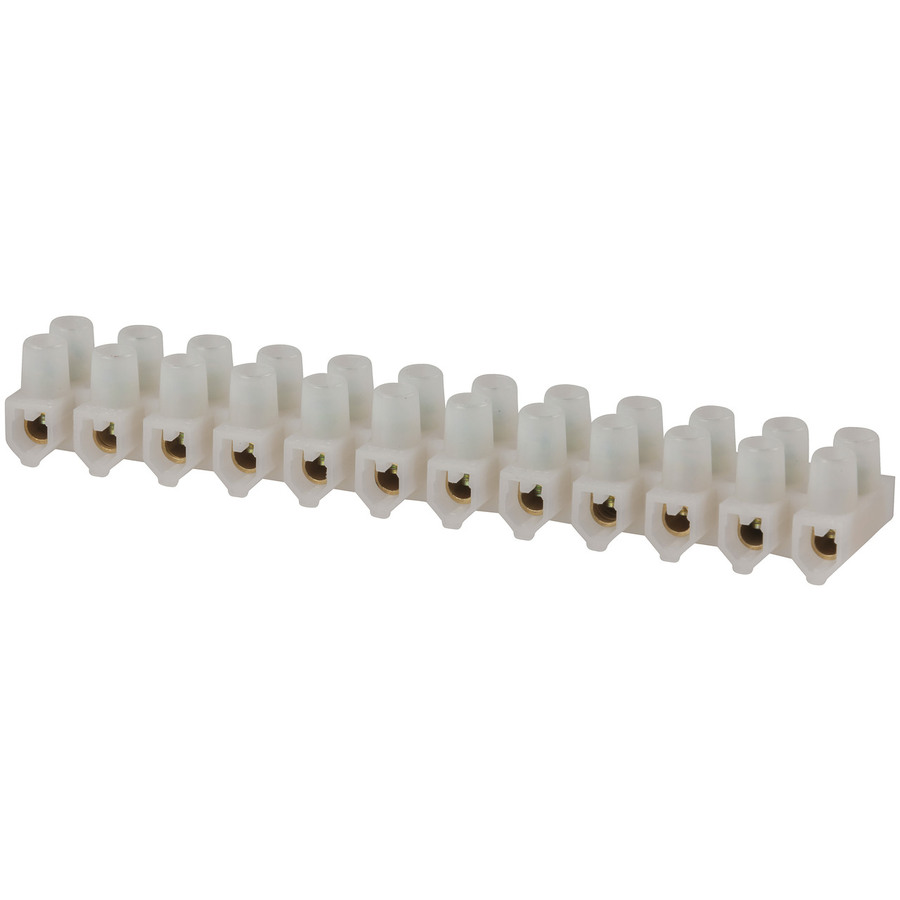

15 Amp 12-way Screw Terminal Strip
15 Amp 12-way Screw Terminal Strip

CAT. No. HM3200

15 Amp 12-way Screw Terminal Strip
product image thumb

15 Amp 12-way Screw Terminal Strip

$4.25
A straightforward joining solution for your wire coupling needs. No soldering required!
Available

Description

12 way & capable of being divided with a sharp knife. Each terminal block has a sturdy mounting hole on a fixed pitch.

Temperature: -35°C ~ 110°C

CurrentCable dia.LengthPitchCat No.
6A3.3mm114.5mm10mmHM-3194
10A4.2mm128.8mm11mmHM-3196
15A4.5mm136.8mm12mmHM-3200
30A5.6mm164.5mm15mmHM-3198
60A6.6mm193mm16.3mmHM-3204


    Specifications

    Terminal Strip

    Terminal Spacing
    		 12mm
    Type
    		 Screw Terminal
    Body Material
    		 Nylon
    Device
    		 Joining Terminal
    Cable Entry Diameter
    		 4.5mm
    Number of Contacts
    		 12pc
    Attachment Method
    		 Screw Terminals

    AC Voltage Rating

    AC Voltage rating
    		 250V

    AC Current Rating

    AC current rating
    		 15A

    Product Dimensions

    Length
    		 136.8mm

    Packaged Dimensions

    Packaged Length
    		 14cm
    Packaged Width
    		 2.4cm
    Packaged Weight
    		 0.056kg
    Packaged Volume
    		 0.07056l
    Packaged Height
    		 2.1cm

    Product Availability

    Availability
    		 Stocked item
