8mm Nylon PCB Standoff - Pk.8
8mm Nylon PCB Standoff - Pk.8

CAT. No. HP0770

8mm Nylon PCB Standoff - Pk.8
product image thumb

8mm Nylon PCB Standoff - Pk.8

$2.95
Saves using nuts, bolts and spacers.Size 8mm. Requires 3mm hole each end...
Available

Description

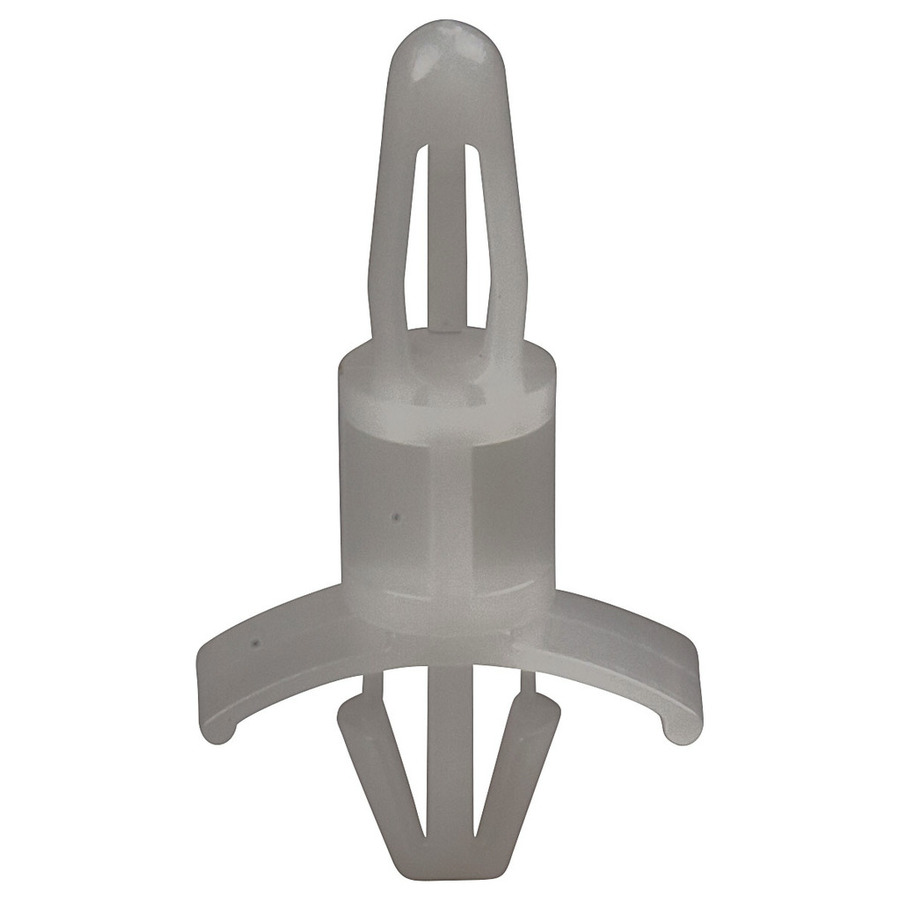

This handy press-in spacer will provide 7.9mm spacing between the top and bottom surfaces. If needed the mounting lock mechanisms can be released to allow the removal of the attached items.

Fastener:
Fastener Type: Stand-off
Length: 7.9mm
Top Hole Size - 4.0mm
Top PCB Thickness - 1.2mm to 1.7mm
Bottom Hole Size - 4.8mm to 5.0mm
Bottom Material Thickness - 0.8mm to 2.0mm
Material - Nylon
Pack Size - 8pc


    Specifications

    Spacers and Standoffs

    Type
    		 Snap-in Spacer

    Fastener

    Pack Quantity
    		 8pc
    Fastener Type
    		 Standoff
    Fastener Length
    		 7.9mm
    Material
    		 Nylon

    Packaged Dimensions

    Packaged Length
    		 6cm
    Packaged Width
    		 5cm
    Packaged Weight
    		 0.01kg
    Packaged Volume
    		 0.03l
    Packaged Height
    		 1cm

    Product Availability

    Availability
    		 Stocked item
