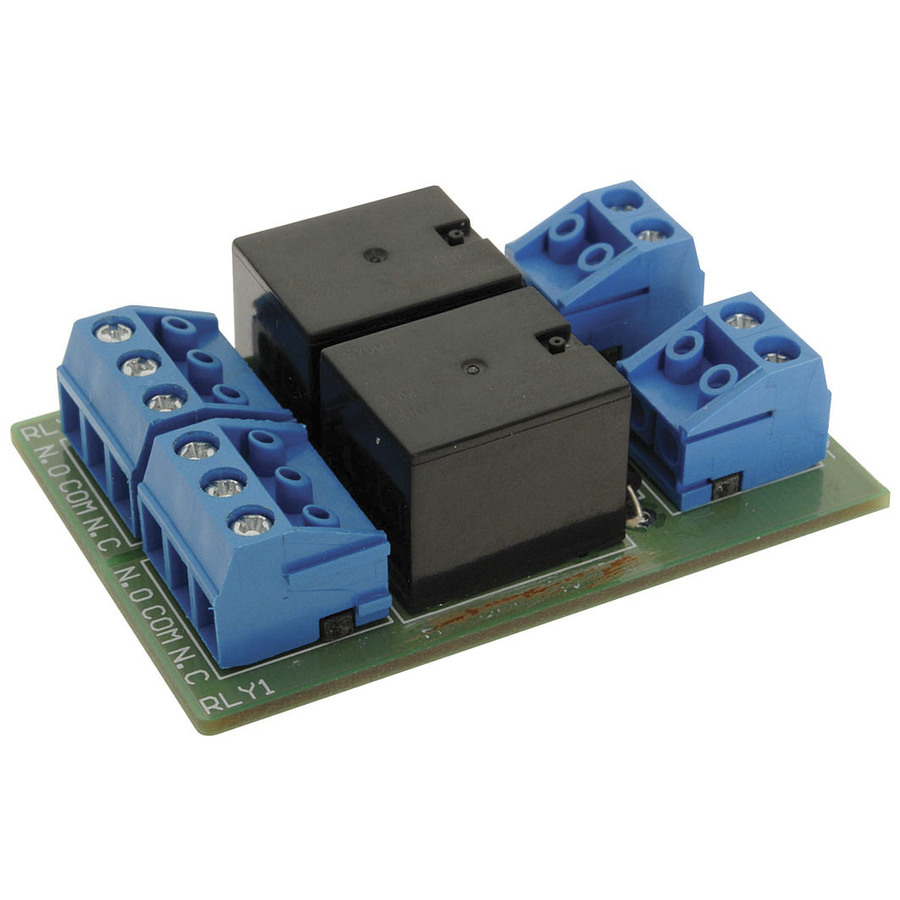

Alarm Relay Module 2 x 15A
Alarm Relay Module 2 x 15A

CAT. No. LA5558

Alarm Relay Module 2 x 15A
product image thumb

Alarm Relay Module 2 x 15A

$29.95
When it comes to large alarm installations, there is often a requirement to have several sirens and strobe lights.
Available

Description

When it comes to large alarm installations, there is often a requirement to have several sirens and strobe lights. In order to do this safely, the best way is to use an isolated relay module. This enables you to supply an external power source so as not to overload the power supply on the alarm panel and switch high currents to multiple sirens and strobe lights.

Features:
* 12VDC Coil
* 15A Switching current at 12VDC (10A at 24VDC)
* Easy connection via wire terminals
* NO and NC contacts
* Isolated to protect the alarm panel
* Relay coil protection for spike free operation


    Specifications

    Packaged Dimensions

    Packaged Length
    		 6.5cm
    Packaged Width
    		 4.5cm
    Packaged Weight
    		 0.044kg
    Packaged Volume
    		 0.067275l
    Packaged Height
    		 2.3cm

    Relay

    Input
    		 DC
    Nominal Voltage
    		 12V
    Device Type
    		 Standard Coil Relay
    DC Switching Current (Closing)
    		 15A
    Contact format
    		 SPDT

    Product Availability

    Availability
    		 Stocked item
