CAT. No. LA9036

GPS Speedometer Head Up Display with OBDII Data
product image thumb
product image thumb
product image thumb

GPS Speedometer Head Up Display with OBDII Data

$99.95
Keep your eyes on the road and read all the important driving info, such as speed, from a head up display reflected off the windscreen.

Out of Stock

Description

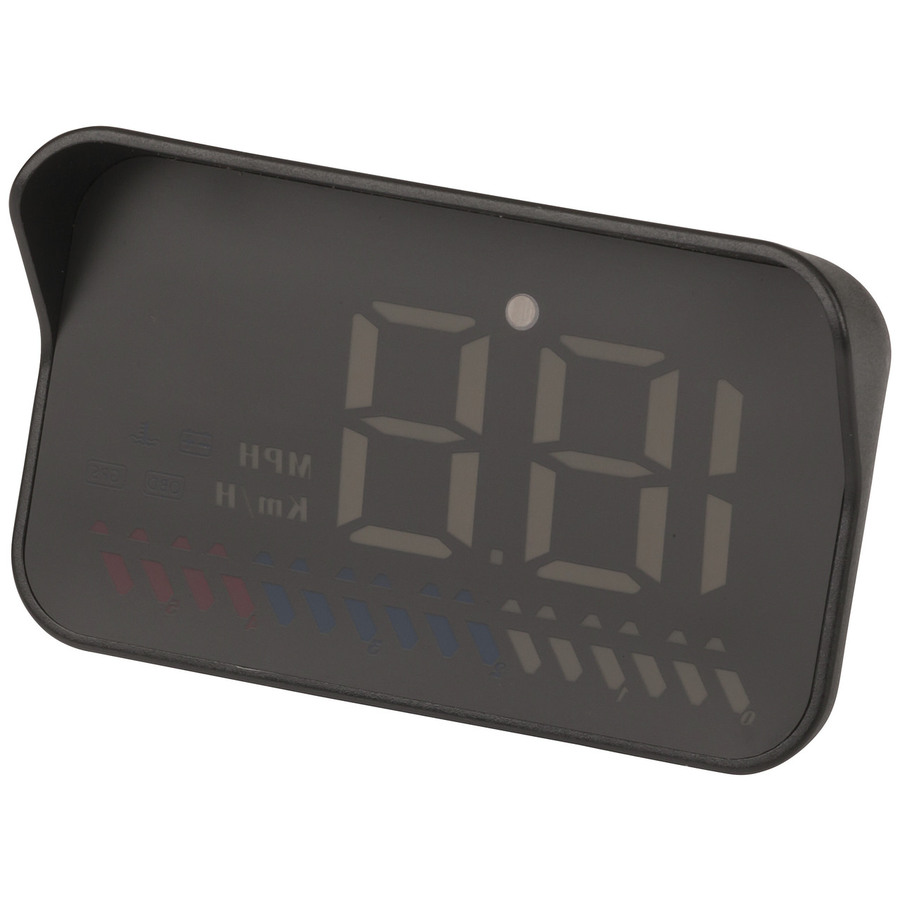

Keep your eyes on the road and read all the important driving info, such as speed, from a head up display reflected off the windscreen. At the touch of the built-in scroll button, you can switch between GPS and OBD II modes. In GPS mode, the display will show your speed, battery voltage, and the number of connected satellites. Switch over to OBD II mode to display speed, engine RPM, water temperature, battery voltage, and distance traveled. The main unit has a glare hood and features auto dimming for night time operation, While the OBD II mode is limited for use in 12V vehicles only, it will happily operate in GPS mode in 24V vehicles.
Note: Check local regulations regarding installation position. Compliant installation requires the position to be within fixed distances from the dashboard for some locations.

Features:
- OBD II or GPS Operation
- Auto Brightness Adjustment

    Specifications

    Automotive Diagnostics


    Battery Voltage
    Engine Speed
    Water Temperature

    Vehicle or Vessel Powered


    Current Draw
    200mA
    Required Voltage
    11V-18V

    Product Dimensions


    Height
    52mm
    Width
    90mm
    Depth
    26mm

    Product Availability


    Availability
    Stocked item

    Packaged Dimensions


    Packaged Length
    14.4cm
    Packaged Width
    9.2cm
    Packaged Weight
    0.23kg
    Packaged Volume
    0.702144l
    Packaged Height
    5.3cm

    Downloads
