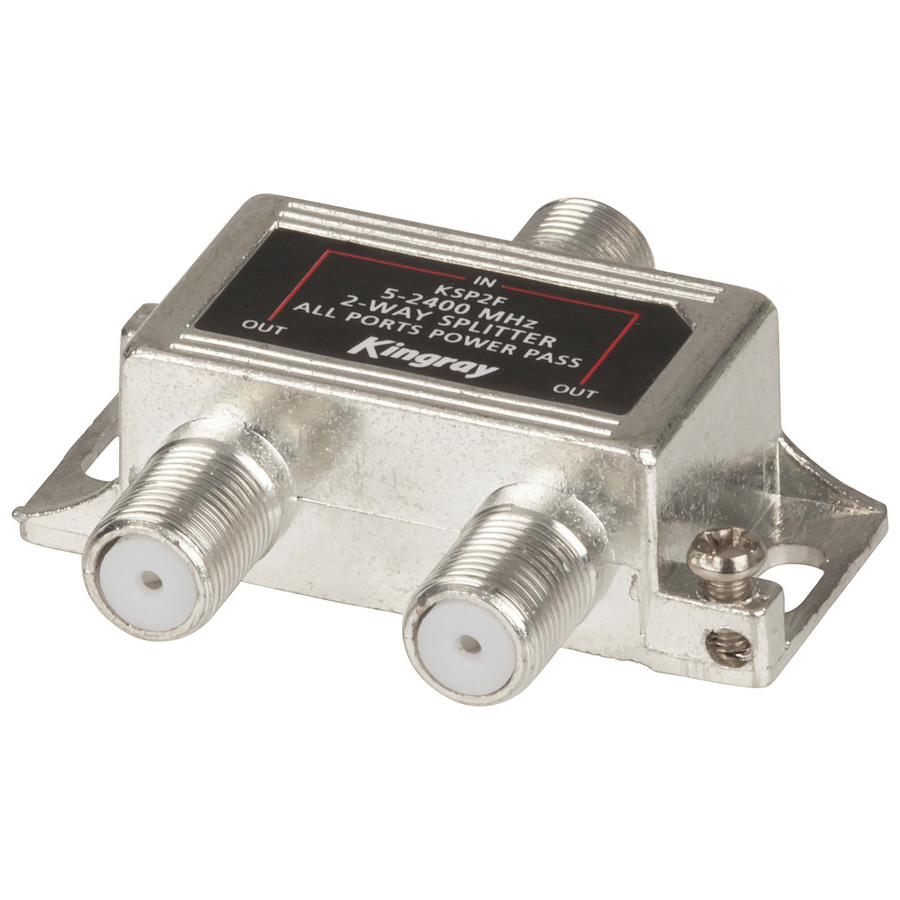

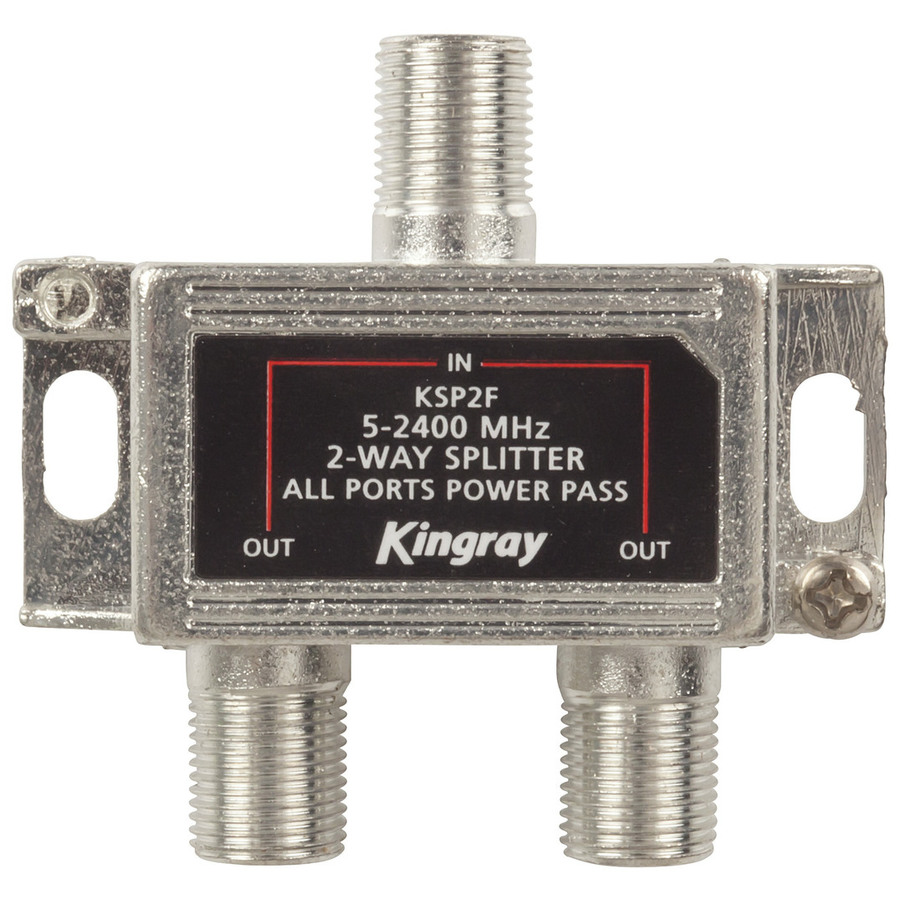

Kingray 2-Way Foxtel® Approved Splitter

$10.25
RF screening to reduce interference. Foxtel® Approval F30950 with 100dB RF Shielding.
Available

Description

3 Year Warranty

This class A digital ready F-type splitter is designed for peak performance across the entire terrestrial and satellite bands up to 2400MHz. It is compact in size and has excellent RF screening to reduce interference. Power pass on all ports allows power to pass through to a masthead amplifier or satellite dish LNA. 1 x F-type input to 2 x F-type outputs.

Features:
• Foxtel® Approval: F30950
• Power-Pass
• Can be Wall Mounted
• >100dB RF Shielding

    Specifications

    TV Antenna Splitters

    Insertion Loss
    		 4dB
    Type of Plugs/Sockets
    		 F Type
    Housing Material
    		 Metal
    Weather Proof
    Frequency Bandwidth
    		 5MHz-2400MHz
    Power Pass
    Number of Outputs
    		 2ch
    RF Screening

    Product Dimensions

    Height
    		 50mm
    Width
    		 84mm
    Depth
    		 13mm
    Weight
    		 32g

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 7.4cm
    Packaged Width
    		 5.5cm
    Packaged Weight
    		 0.04kg
    Packaged Volume
    		 0.08547l
    Packaged Height
    		 2.1cm
    Warranty: 36 Months
