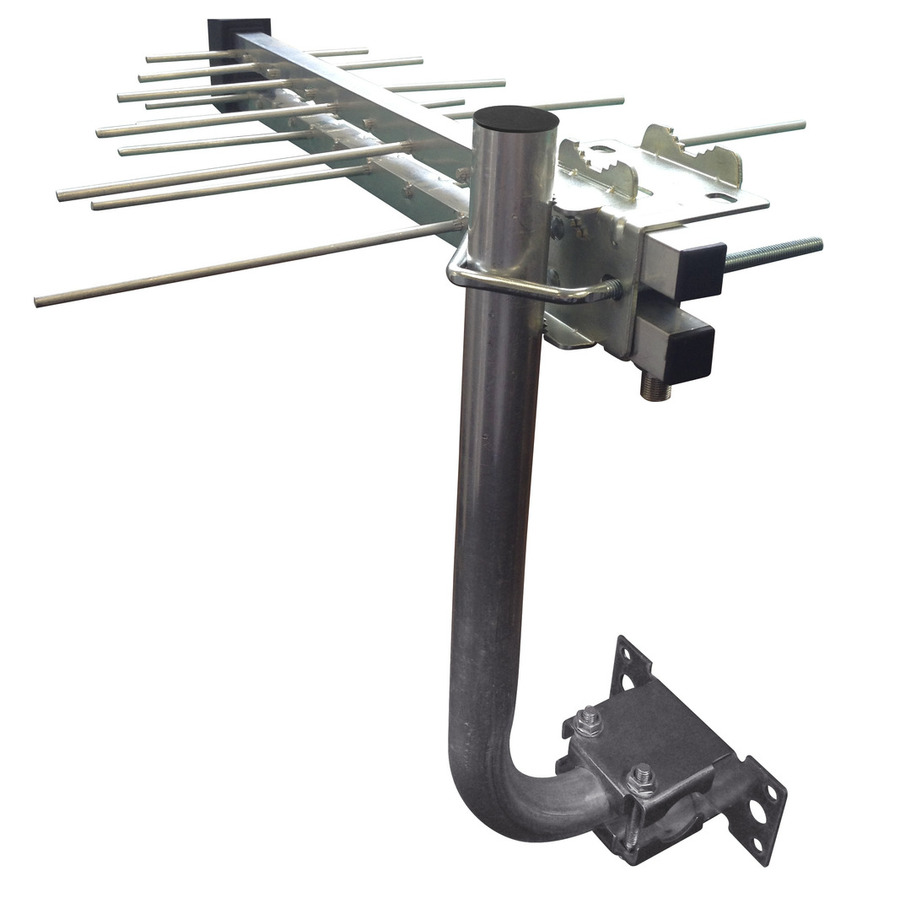

Mini UHF Log Periodic Antenna
Mini UHF Log Periodic Antenna

CAT. No. LT3151

Mini UHF Log Periodic Antenna
product image thumb

Mini UHF Log Periodic Antenna

$69.95
Ideal reception solution for areas with medium levels of signal.

Out of Stock

Description

1 Year Warranty

This UHF mini log periodic antenna has been specifically designed for Digital TV reception. It is supplied with an easy to install mounting bracket and “J” mast. Compact in size the antenna is capable of being installed vertically or horizontally and with 7.5dB of gain is the ideal reception solution for areas with medium levels of signal.

Specifications:
Element: 20
Band: 4-5
Channels: 21-69
Frequency: 470-862MHz
Gain: 7.5dB
F/B Ratio: 21dB
Overall Length: 400mm
Maximum Width: 311mm



For More info on Kingray TV antenna products selection guide.


    Specifications

    Terrestrial and Satellite TV Antennas

    Usage Location
    		 Outdoor
    UHF Gain
    		 7.5dB
    Number of elements
    		 20pc
    Antenna Type
    		 Log Periodic
    Reception Bands
    		 TV Band 4: 526-582MHz, TV Band 5: 582-694MHz
    Antenna Assembly
    		 Bolt Together
    UHF Frequency Range
    		 470MHz-862MHz
    UHF Channel Range
    		 21ch-69ch

    Product Mounting

    Attachment / Securing Method
    		 U-Bolt
    Mounting Method
    		 Pole Mount

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 39.3cm
    Packaged Width
    		 30.7cm
    Packaged Weight
    		 0.914kg
    Packaged Volume
    		 8.807523l
    Packaged Height
    		 7.3cm
    Warranty: 12 Months
