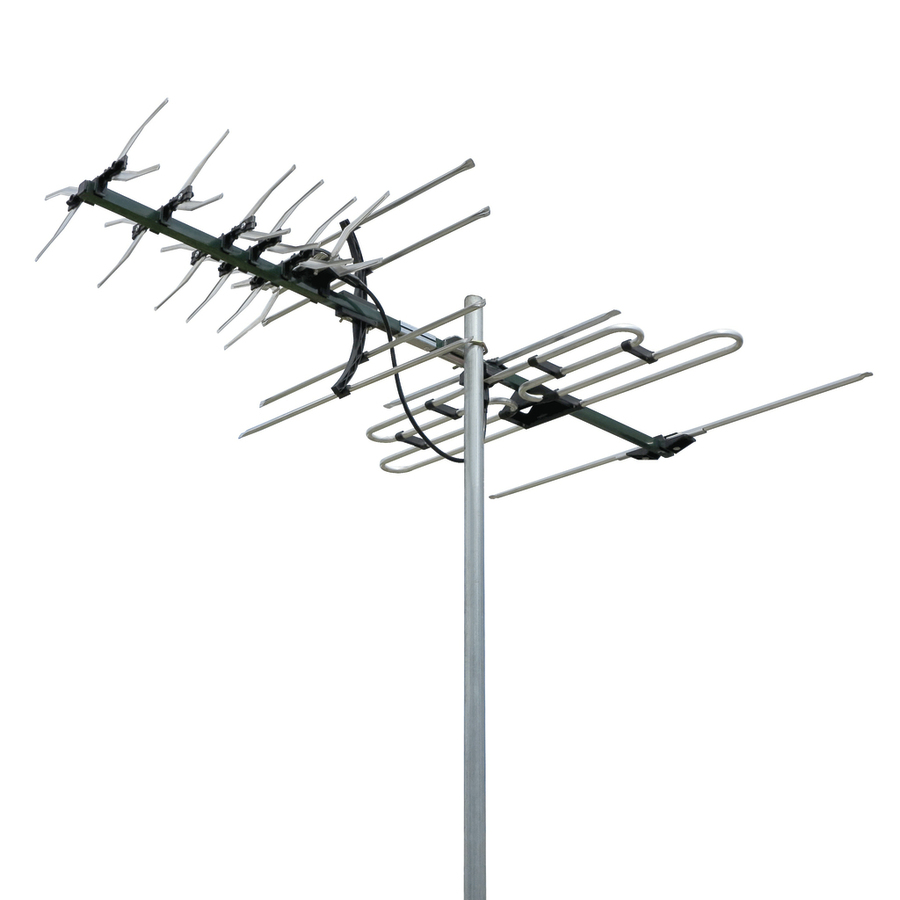

Digimatch VHFUHF X-type Colinear 27 Element Receives Band 3, 4, and 5 (Channel 6-12 and 28-46)
Digimatch VHFUHF X-type Colinear 27 Element Receives Band 3, 4, and 5 (Channel 6-12 and 28-46)

CAT. No. LT3195

Digimatch VHFUHF X-type Colinear 27 Element Receives Band 3, 4, and 5 (Channel 6-12 and 28-46)
product image thumb

Digimatch VHFUHF X-type Colinear 27 Element Receives Band 3, 4, and 5 (Channel 6-12 and 28-46)

$169
An outdoor Colinear aerial for free-to-air television reception.

Out of Stock

Description

1 Year Warranty

Features:

• Gain - VHF 7dB, UHF 11dB
• Avg. VSWR - 1.9:1
• Avg. F/B Ratio - VHF 12dB, UHF 18dB
• Channels - 6-12, 28-46 (Now includes 4G Filter)
• Boom Length - 1320mm




For More info on TV Antennas.


    Specifications

    Terrestrial and Satellite TV Antennas

    Usage Location
    		 Outdoor
    UHF Gain
    		 11dB
    Number of elements
    		 27pc
    Antenna Type
    		 Yagi
    Reception Bands
    		 TV Band 3: 174-230MHz, TV Band 4: 526-582MHz, TV Band 5: 582-694MHz
    Antenna Assembly
    		 Bolt Together
    VHF Gain
    		 7dB
    VHF Channels Covered
    		 6ch-12ch
    UHF Channel Range
    		 21ch-46ch
    Boom Length
    		 1305mm

    Product Mounting

    Attachment / Securing Method
    		 U-Bolt
    Mounting Method
    		 Pole Mount, Exterior Roof

    Product Dimensions

    Width
    		 900mm

    Packaged Dimensions

    Packaged Length
    		 100cm
    Packaged Width
    		 25cm
    Packaged Weight
    		 2kg
    Packaged Volume
    		 22.5l
    Packaged Height
    		 9cm

    Product Availability

    Availability
    		 Stocked item
    Warranty: 12 Months
