CAT. No. MB3633

Universal Professional Balance ChargerDischarger
product image thumb
product image thumb
product image thumb
product image thumb
product image thumb
product image thumb

Universal Professional Balance ChargerDischarger

$169
A professional battery charger suitable for a variety of batteries with charging current of up to 6A.

Out of Stock

Description

1 Year Warranty

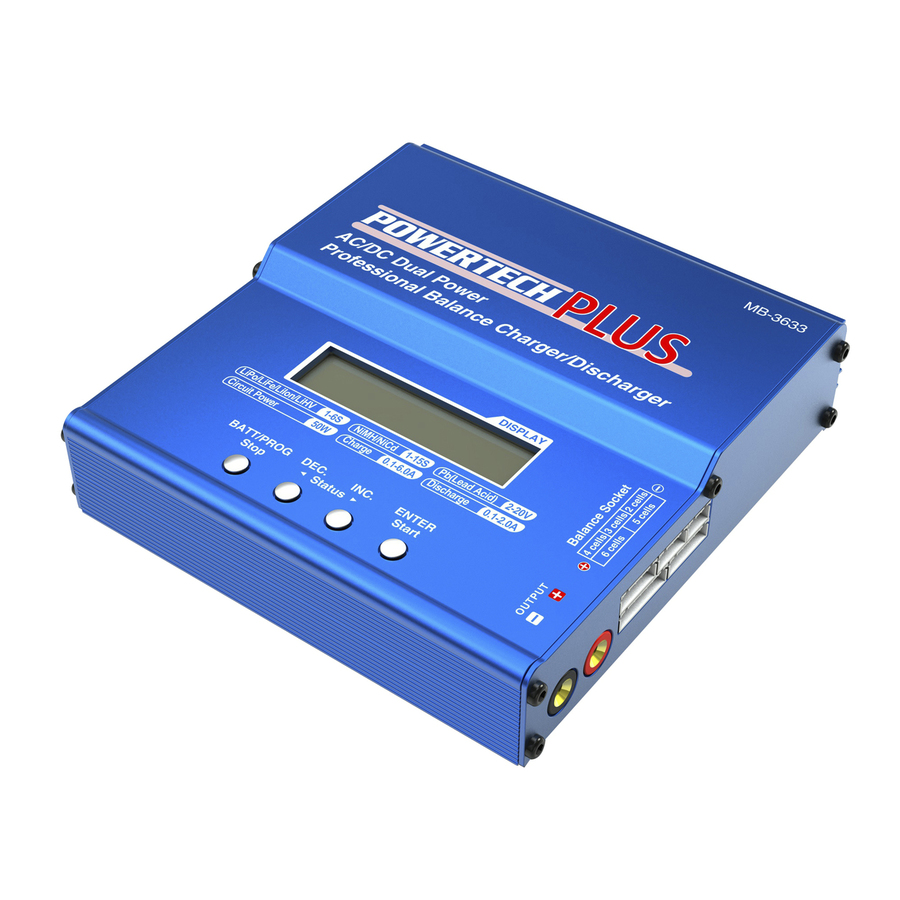

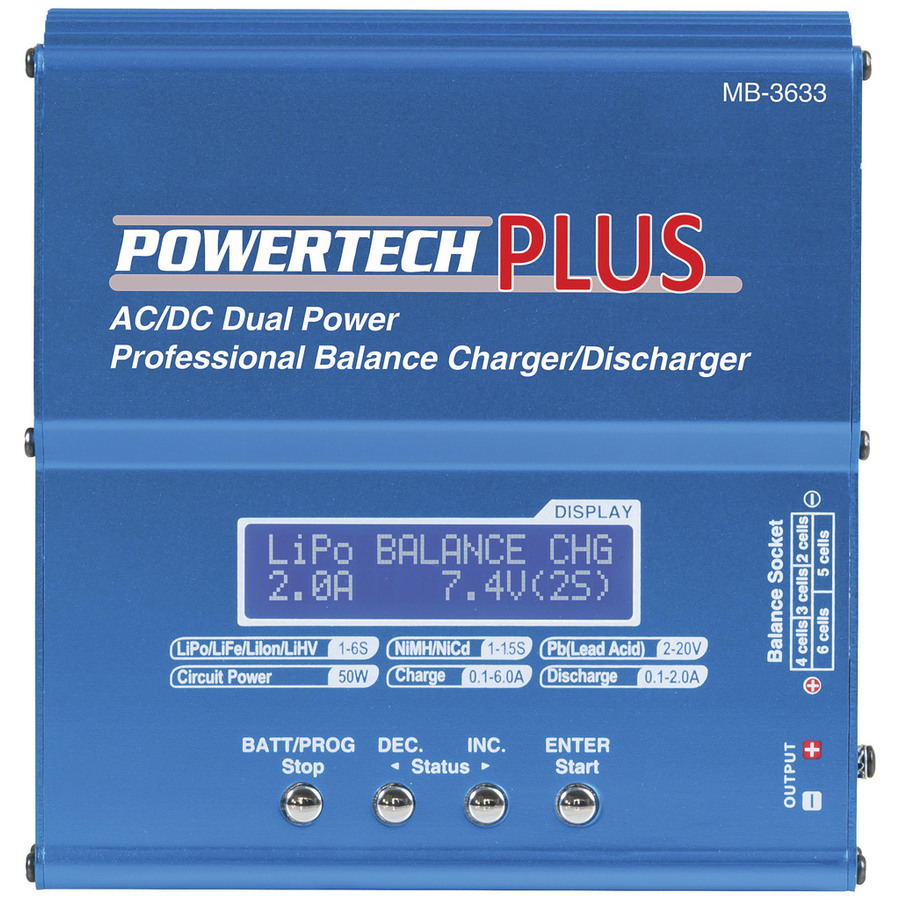

With intuitive on-board controls, this professional balance charger provides up to 6A charge current for fast recharging, with the convenience of mains or car power. Balance charging is the ultimate way to monitor individual cells in battery packs, providing more accurate charging, improving the life of your battery packs. The charger includes PC connectivity and temperature sensing, in addition to the large LCD and pushbutton controls. Suitable for Li-Po, Li-Fe, Li-ion lithium packs, as well as NiMH/NiCd packs. An integrated discharge function can also perform as an auto charge/discharge cycle to help condition your batteries (especially useful for NiCd packs). It truly provides some of the most advanced charging around for multi-cell battery packs with balance charging capability.

Features:
- Optional PC control
- Memory to save 10 charge/discharge profiles
- Max Charge Power: 50W
- Max Discharge Power: 5W
- Charge Current Range: 0.1-6A
- Discharge Current Range: 0.1-2A
- Cell Count:
LiPo/LiFe/LiIon: 1-6 cells
NiCD/NiMH:      1-15 cells
- Pb (Lead) Battery Voltage: 2-20V

    Specifications

    Battery Charger


    Number of Cells
    15pc
    Type of Batteries
    Lithium Polymer, Lithium Ferrous Phosphate (LiFePO4), Lithium Ion, Nickel Metal Hydride (Ni-MH), Nickel Cadmium (Ni-Cad), Lead Acid

    Mains powered


    Mains Item connection
    Mains AU/NZ 3 Pin
    Mains lead included
    Frequency
    50Hz-60Hz
    Mains Voltage Range
    100V
    Rated for AU Mains

    Power from Plugpack


    DC Plugpack Voltage
    11V-18V
    PSU Powers
    Main Product

    Product Dimensions


    Height
    36mm
    Width
    138mm
    Depth
    144mm
    Weight
    632g

    Product Availability


    Availability
    Stocked item

    Packaged Dimensions


    Packaged Length
    21cm
    Packaged Width
    20.5cm
    Packaged Weight
    1.038kg
    Packaged Volume
    2.583l
    Packaged Height
    6cm
    Warranty: 12 Months
