5W Line Speaker Transformer

$12.95
Designed to tap 100V (or 70V 1/2 power) public address amplifier lines to use an 8 ohm speaker.
Available

Description

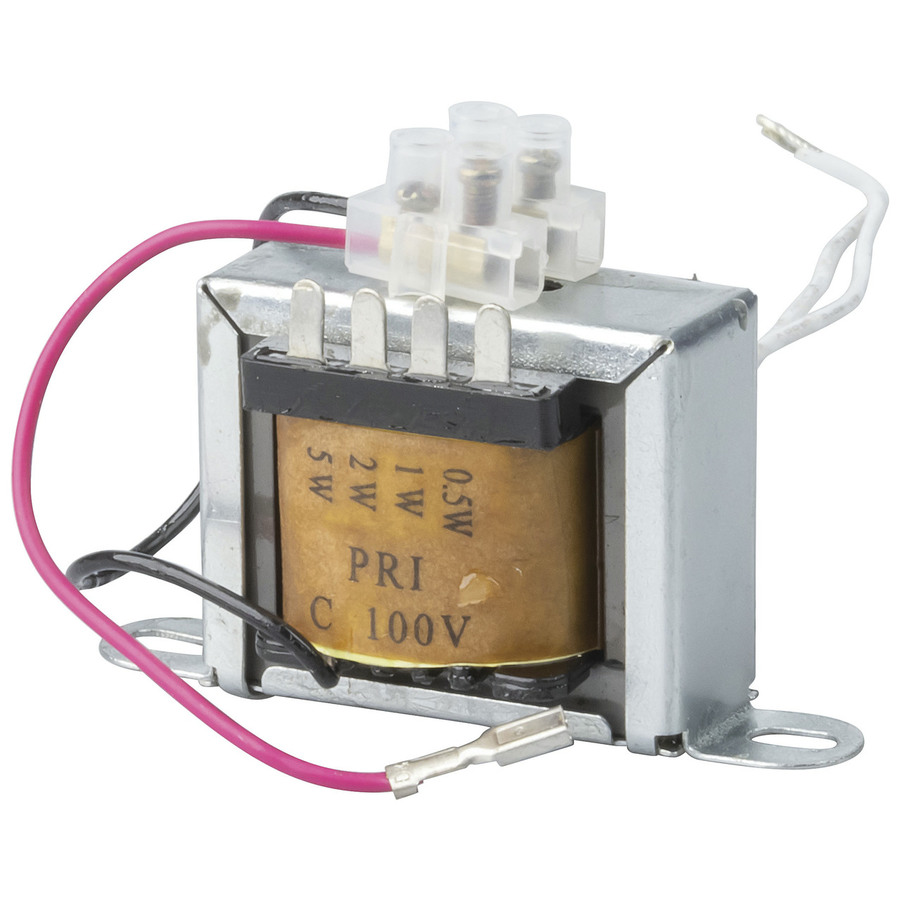

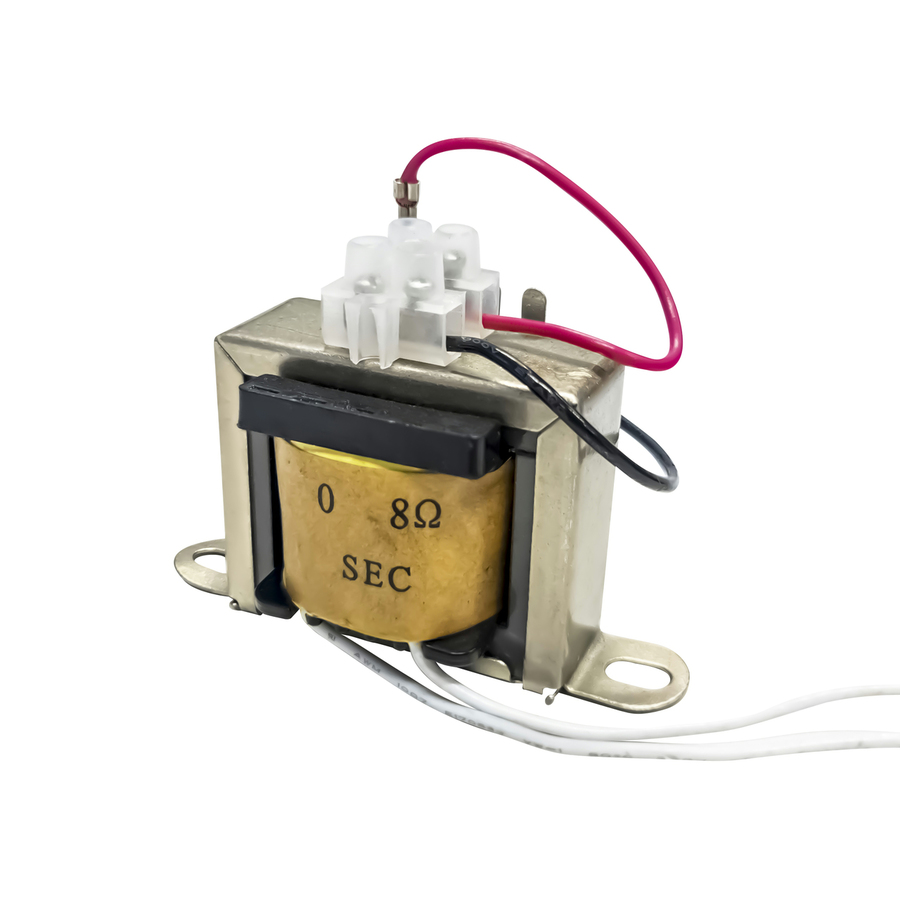

Designed to tap 100V (or 70V 1/2 power) public address amplifier lines to use an 8speaker. Made with grain oriented steel for good frequency response. Good dynamic range. Primary taps enable you to select power level for 8speaker. Connect primary to C (100V) and tap for whatever sound level is required from 0.5-5W rms.
Supplied with terminal block mounted on top of transformer.
Mounting hole centres 53mm
Primary Power
20K 0.5W
10K 1W
5K 2W
2.5K 5W

    Specifications

    Transformers

    Type of Transformer
    		 Line Isolation
    Output Impedance
    		 8?
    Secondary Winding Configuration
    		 Multi-tapped

    Power Rating

    Maximum Power
    		 5W

    Product Mounting

    Screw Spacing from Centre Line (H)
    		 53mm

    Packaged Dimensions

    Packaged Length
    		 6.5cm
    Packaged Width
    		 5cm
    Packaged Weight
    		 0.162kg
    Packaged Volume
    		 0.11375l
    Packaged Height
    		 3.5cm

    Product Availability

    Availability
    		 Stocked item
