CAT. No. MM2006

12.6V CT, 150mA, 1.9VA Centre Tapped Transformer Type 2851
product image thumb
product image thumb
product image thumb

12.6V CT, 150mA, 1.9VA Centre Tapped Transformer Type 2851

$8.5
Versatile 1.9VA iron core mains transformer with centre-tap output 6.3V to 12.6V output Maximum current output of 150mA

Out of Stock

Description

240V Mains Power

Traditional laminated iron core transformers suitable for new projects, hobby projects or as a  replacement in existing equipment. They have a thermal fuse built into the primary winding for added safety and a wide variety is available to suit your specific needs.

 • Primary Connection: 200mm Fly Leads
 • Conforms to AS/NZ 61558.2.6

    Specifications

    Transformers

    Type of Transformer
    		 Laminated Core
    Case Type
    		 2851

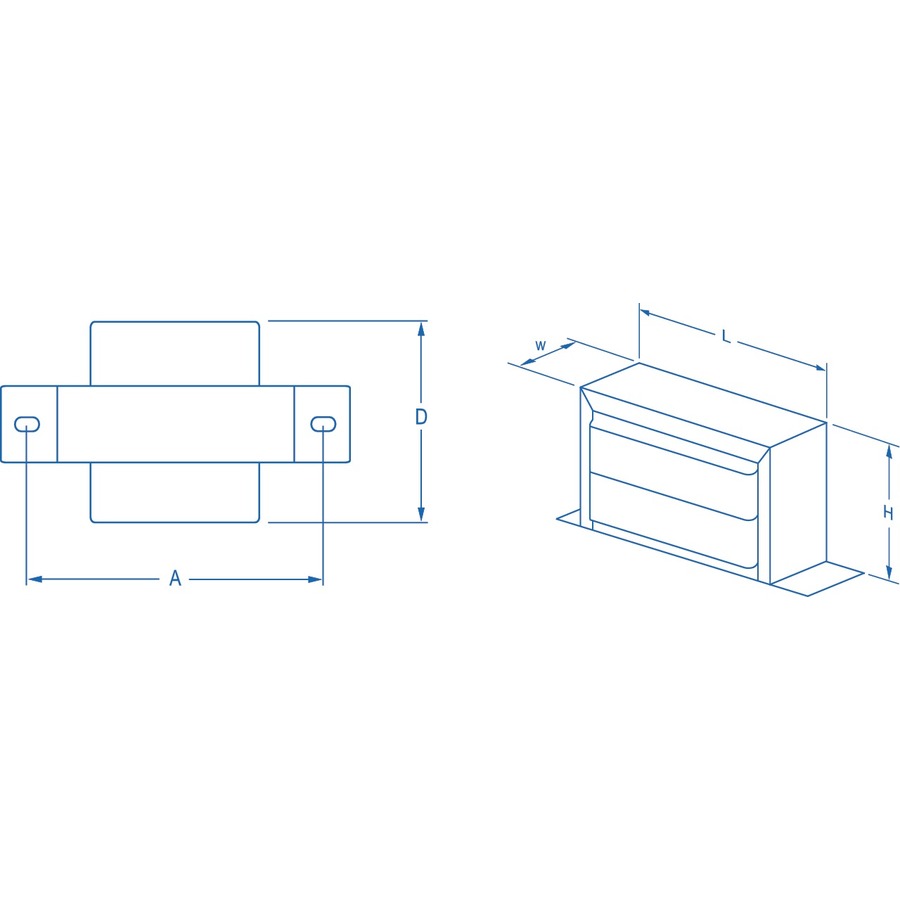

    Core Winding Depth (D)
    		 32mm
    Mount Spacing (A)
    		 46mm
    Primary Winding Connection
    		 Flyleads
    Case Height (H)
    		 32mm
    Temperature Rise Above Ambient at Rated Power
    		 40°C
    Case Length (L)
    		 37mm
    Magnetising Current
    		 15mA
    Core Material
    		 Laminated Iron
    Thermal Fuse
    Secondary Winding Connection
    		 Flyleads

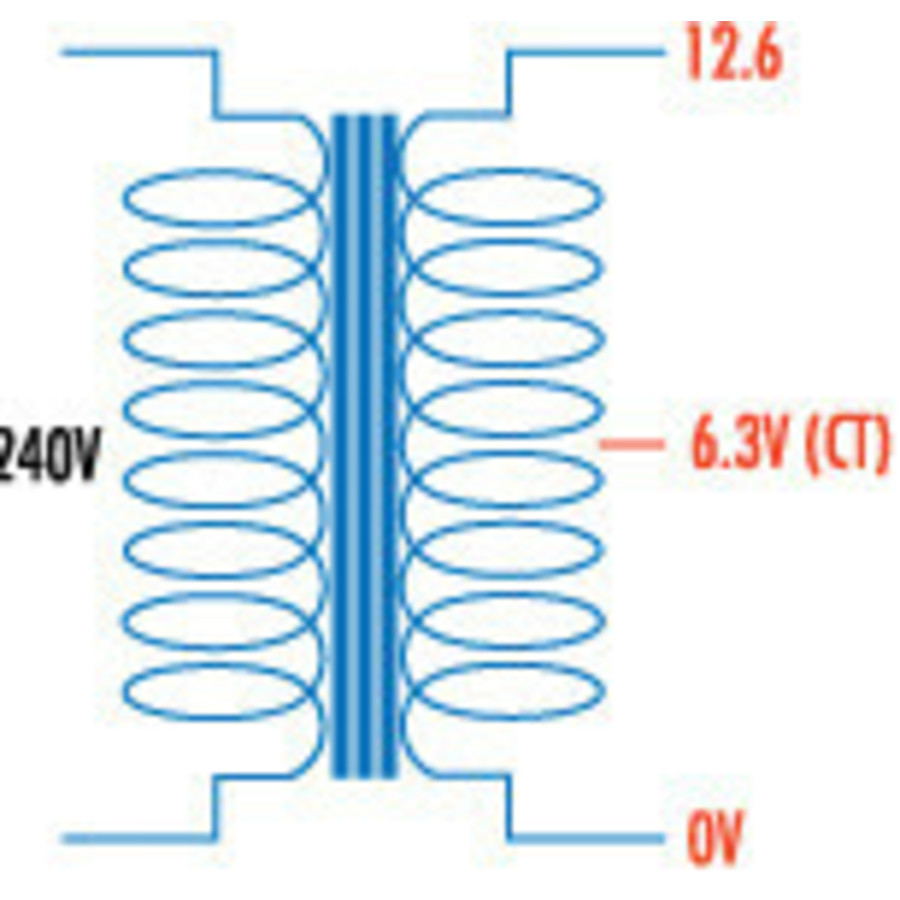

    Secondary Winding Configuration
    		 Centre Tapped
    Regulation
    		 8%
    Case Width (W)
    		 16mm

    Power Conversion and Transformation

    Type of converter or transformer
    		 laminated/toroidal transformer

    Mains powered

    Max Input Power
    		 1.9VA
    Mains Voltage Range
    		 240V
    Rated for AU Mains

    AC Voltage Rating

    AC Voltage rating
    		 12.6V, 6.3V

    AC Current Rating

    AC current rating
    		 150mA

    Product Dimensions

    Weight
    		 112g

    Packaged Dimensions

    Packaged Length
    		 5.8cm
    Packaged Width
    		 3.8cm
    Packaged Weight
    		 0.135kg
    Packaged Volume
    		 0.08375l
    Packaged Height
    		 3.8cm

    Product Availability

    Availability
    		 Stocked item
