30V CT, 4.5VA 150mA Centre Tapped - Type 2855 Transformer

$11.95

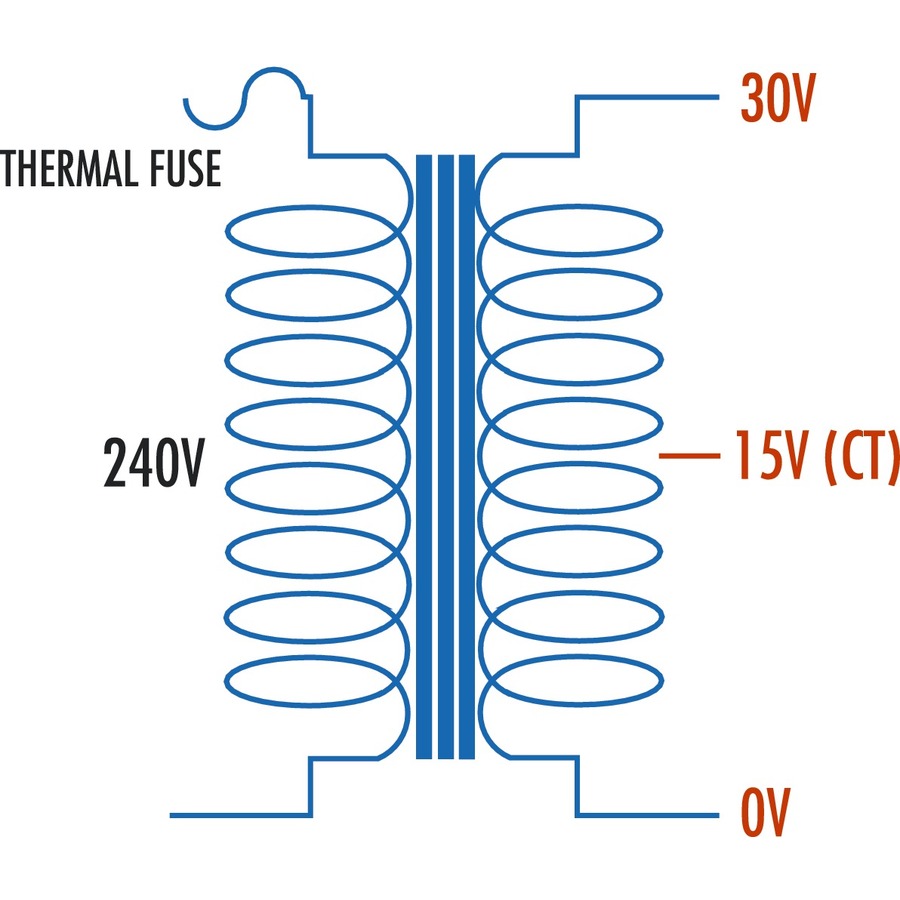

Versatile 4.5VA iron core mains transformer with centre-tap output 15V to 30V output Maximum current output of 150mA

Out of Stock

Description

240V Mains Power

Traditional laminated iron core transformers suitable for new projects, hobby projects or as a  replacement in existing equipment. They have a thermal fuse built into the primary winding for added safety and a wide variety is available to suit your specific needs.

 • Primary Connection: 200mm Fly Leads
 • Conforms to AS/NZ 61558.2.6

    Specifications

    Transformers

    Type of Transformer
    		 Laminated Core
    Case Type
    		 2855

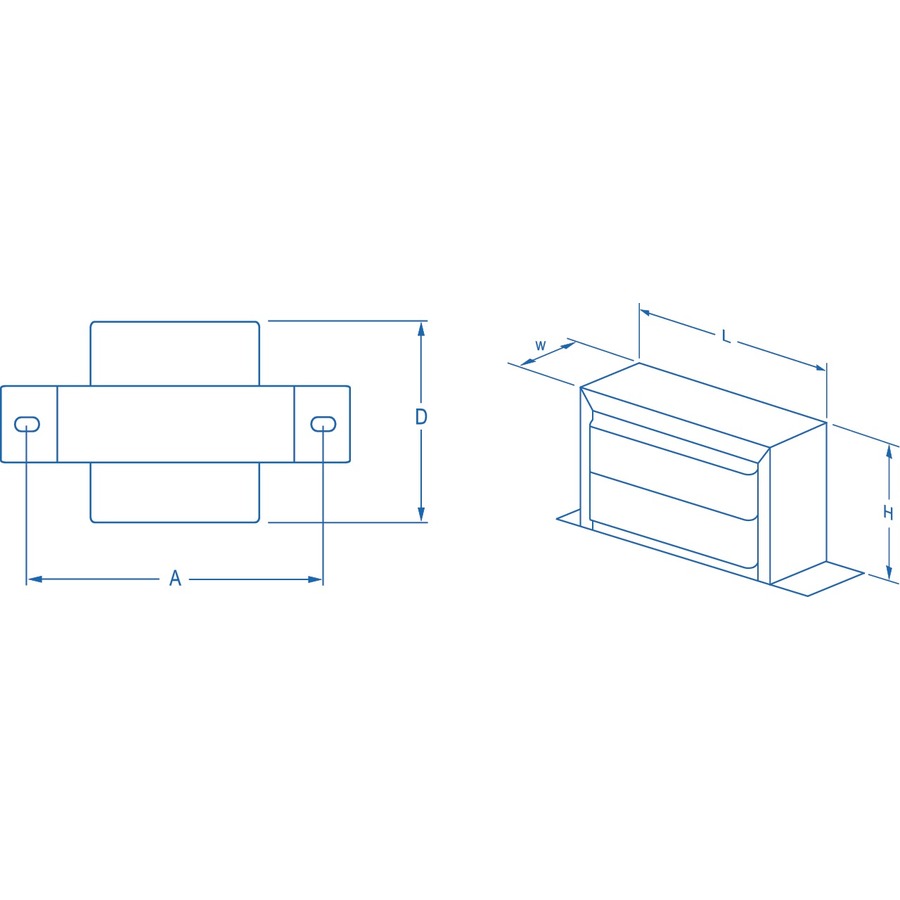

    Core Winding Depth (D)
    		 44mm
    Mount Spacing (A)
    		 53mm
    Primary Winding Connection
    		 Flyleads
    Case Height (H)
    		 36mm
    Temperature Rise Above Ambient at Rated Power
    		 40°C
    Case Length (L)
    		 43mm
    Magnetising Current
    		 40mA
    Core Material
    		 Laminated Iron
    Thermal Fuse
    Secondary Winding Connection
    		 Flyleads
    Secondary Winding Configuration
    		 Centre Tapped
    Regulation
    		 8%
    Case Width (W)
    		 28mm

    Power Conversion and Transformation

    Type of converter or transformer
    		 laminated/toroidal transformer

    Mains powered

    Max Input Power
    		 4.5VA
    Mains Voltage Range
    		 240V
    Rated for AU Mains

    AC Voltage Rating

    AC Voltage rating
    		 15V, 30V

    AC Current Rating

    AC current rating
    		 150mA

    Product Dimensions

    Weight
    		 280g

    Packaged Dimensions

    Packaged Length
    		 5.2cm
    Packaged Width
    		 6.6cm
    Packaged Weight
    		 0.29kg
    Packaged Volume
    		 0.15101l
    Packaged Height
    		 4.4cm
