12.6V CT, 7VA 500mA Centre Tapped - Type 2853 Transformer
12.6V CT, 7VA 500mA Centre Tapped - Type 2853 Transformer
12.6V CT, 7VA 500mA Centre Tapped - Type 2853 Transformer
12.6V CT, 7VA 500mA Centre Tapped - Type 2853 Transformer

CAT. No. MM2013

12.6V CT, 7VA 500mA Centre Tapped - Type 2853 Transformer
product image thumb
product image thumb
product image thumb

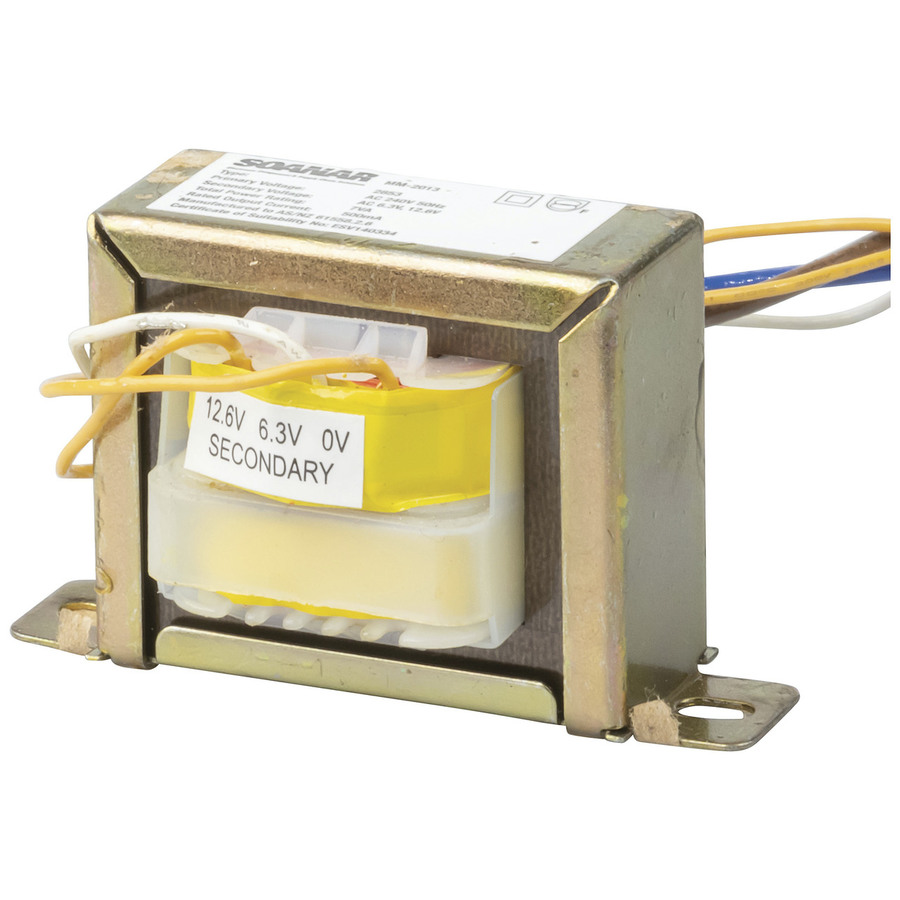

12.6V CT, 7VA 500mA Centre Tapped - Type 2853 Transformer

$11.95
Versatile 7VA iron core mains transformer with centre-tap 6.30V to 12.6V output. Maximum current output of 500mA.

Out of Stock

Description

240V Mains Power

Traditional laminated iron core transformers suitable for new projects, hobby projects or as a  replacement in existing equipment. They have a thermal fuse built into the primary winding for added safety and a wide variety is available to suit your specific needs.

 • Primary Connection: 200mm Fly Leads
 • Conforms to AS/NZ 61558.2.6


    Specifications

    Transformers

    Type of Transformer
    		 Laminated Core
    Case Type
    		 2853
    Core Winding Depth (D)
    		 38mm
    Mount Spacing (A)
    		 61mm
    Primary Winding Connection
    		 Flyleads
    Case Height (H)
    		 43mm
    Temperature Rise Above Ambient at Rated Power
    		 40°C
    Case Length (L)
    		 51mm
    Magnetising Current
    		 40mA
    Core Material
    		 Laminated Iron
    Thermal Fuse
    Secondary Winding Connection
    		 Flyleads
    Secondary Winding Configuration
    		 Centre Tapped
    Regulation
    		 10%
    Case Width (W)
    		 20mm

    Power Conversion and Transformation

    Type of converter or transformer
    		 laminated/toroidal transformer

    Mains powered

    Max Input Power
    		 7VA
    Mains Voltage Range
    		 240V
    Rated for AU Mains

    AC Voltage Rating

    AC Voltage rating
    		 12.6V, 6.3V

    AC Current Rating

    AC current rating
    		 500mA

    Product Dimensions

    Weight
    		 310g

    Packaged Dimensions

    Packaged Length
    		 4.4cm
    Packaged Width
    		 7.6cm
    Packaged Weight
    		 0.32kg
    Packaged Volume
    		 0.16051l
    Packaged Height
    		 4.8cm

    Product Availability

    Availability
    		 Stocked item
