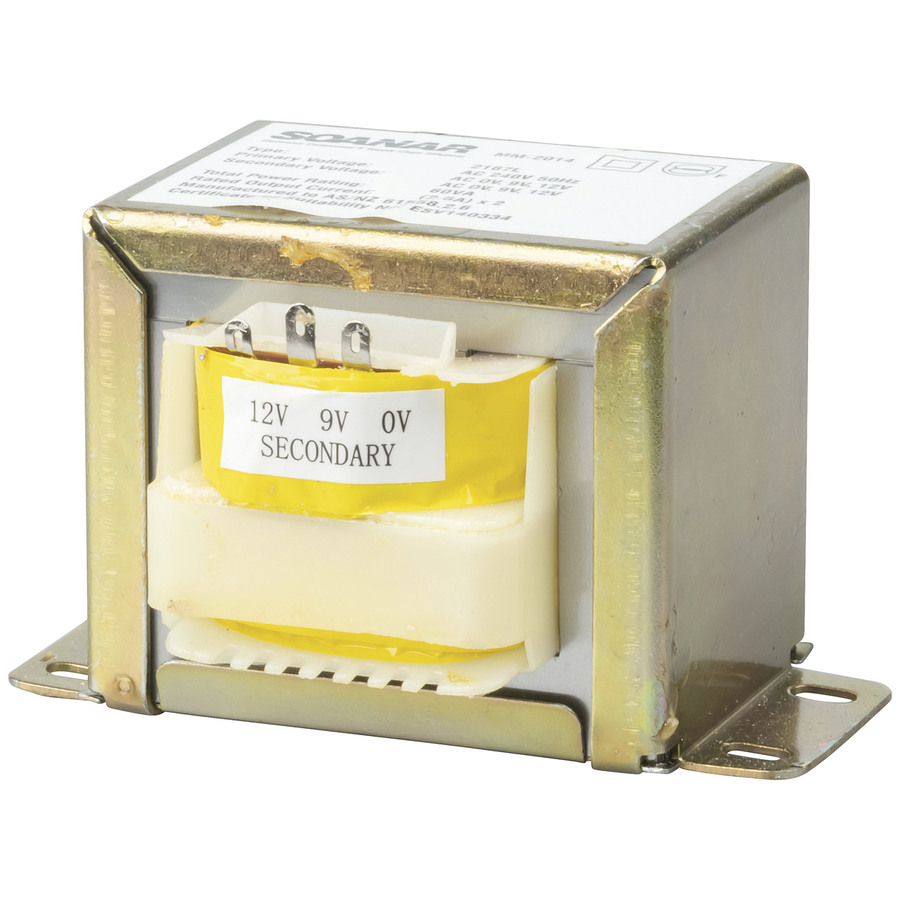

9V - 24V, 60VA, 5A Multi-Tapped Dual Output Type 2167 Transformer

$33.95
Versatile 60VA iron core mains transformer with multi-tap output Dual 9V and 12V output Maximum current output of 2.5A (x2)

Out of Stock

Description

240V Mains Power

Traditional laminated iron core transformers suitable for new projects, hobby projects or as a  replacement in existing equipment. They have a thermal fuse built into the primary winding for added safety and a wide variety is available to suit your specific needs.

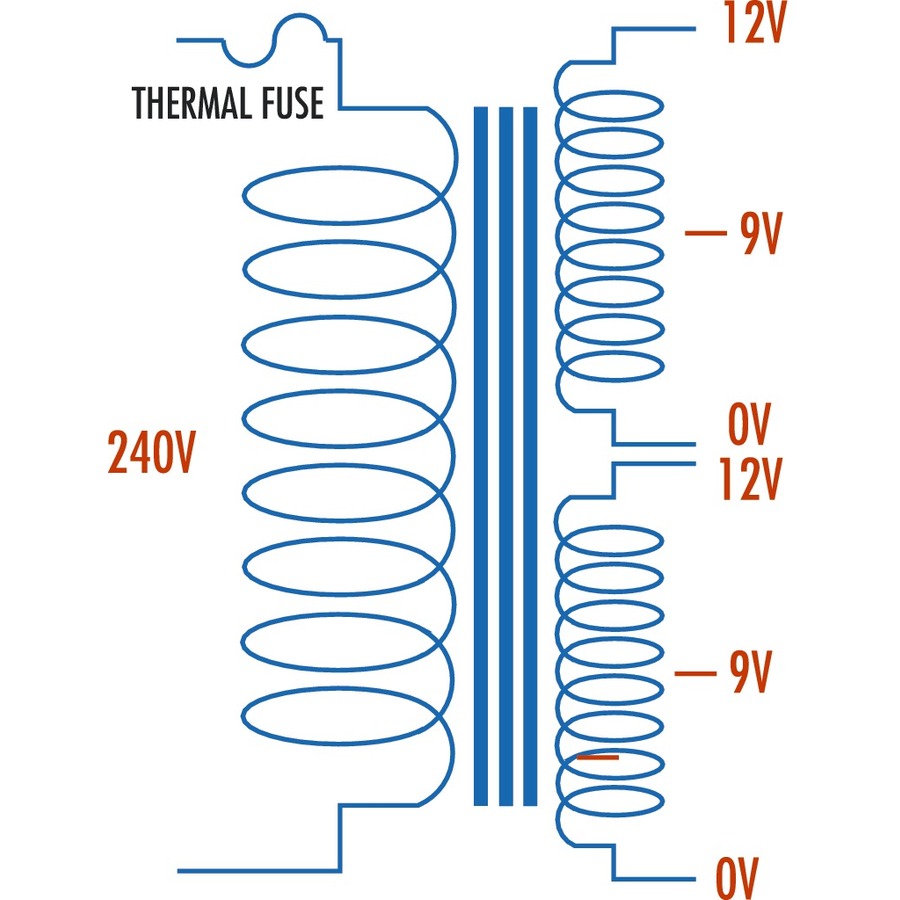

Twin outputs may be wired in series to increase voltage or in parallel (in phase only) to increase current.

 • Primary Connection: 200mm Fly Leads
 • Conforms to AS/NZ 61558.2.6

    Specifications

    Transformers

    Type of Transformer
    		 Laminated Core
    Case Type
    		 2167

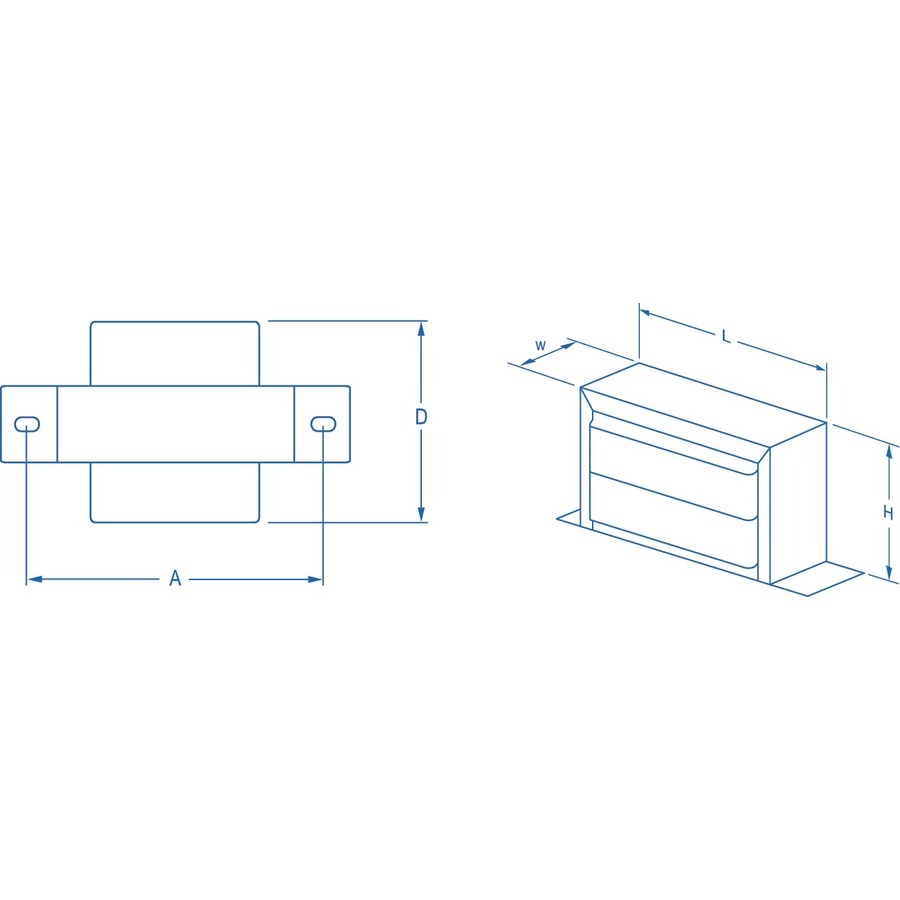

    Core Winding Depth (D)
    		 76mm
    Mount Spacing (A)
    		 82mm
    Primary Winding Connection
    		 Flyleads
    Case Height (H)
    		 59mm
    Temperature Rise Above Ambient at Rated Power
    		 65°C
    Case Length (L)
    		 69mm
    Magnetising Current
    		 65mA
    Core Material
    		 Laminated Iron
    Thermal Fuse
    Secondary Winding Connection
    		 Solder Tags
    Secondary Winding Configuration
    		 Multi-tapped
    Regulation
    		 10%
    Case Width (W)
    		 48mm

    Power Conversion and Transformation

    Type of converter or transformer
    		 laminated/toroidal transformer

    Mains powered

    Max Input Power
    		 60VA
    Mains Voltage Range
    		 240V
    Rated for AU Mains

    AC Voltage Rating

    AC Voltage rating
    		 9V, 12V

    AC Current Rating

    AC current rating
    		 2.5A

    Product Dimensions

    Weight
    		 1300g

    Packaged Dimensions

    Packaged Length
    		 10cm
    Packaged Width
    		 7.5cm
    Packaged Weight
    		 1.293kg
    Packaged Volume
    		 0.45l
    Packaged Height
    		 6cm
