CAT. No. MM2018

24V, 3.6VA 150mA Centre Tapped - Type 2854 Transformer
product image thumb
product image thumb
product image thumb

24V, 3.6VA 150mA Centre Tapped - Type 2854 Transformer

$11.95

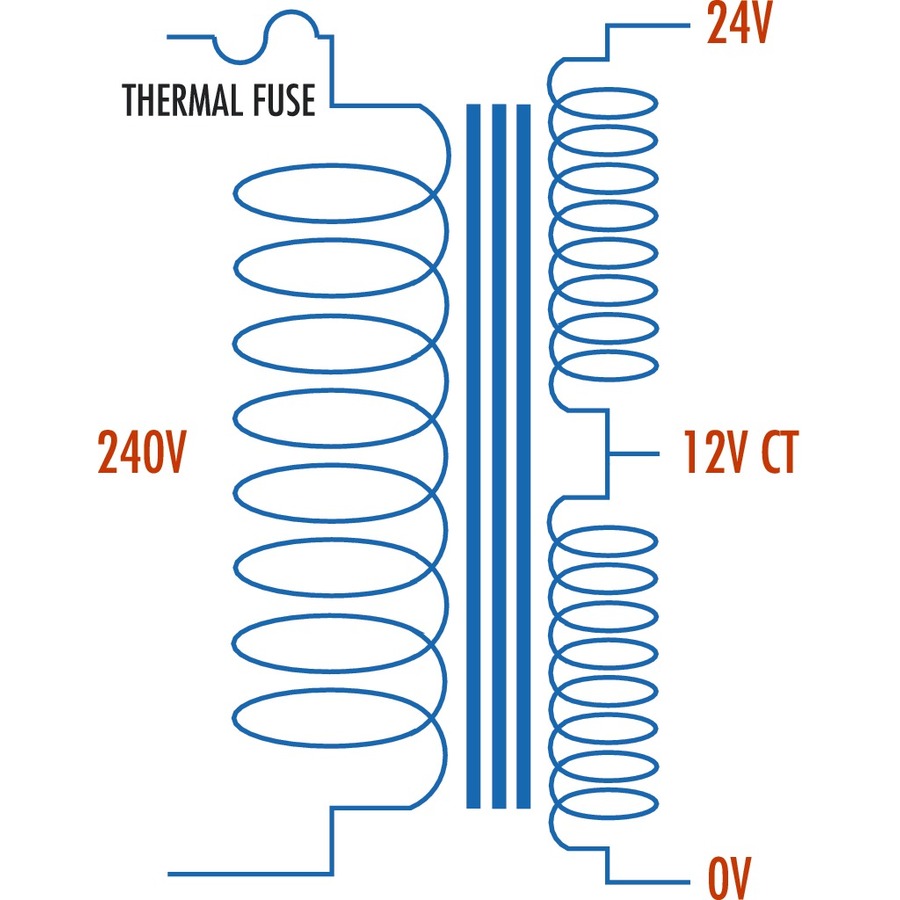

Versatile 3.6VA iron core mains transformer with centre-tap output of 12V, 24V or 24V (12V per side).

Out of Stock

Description

240V Mains Power

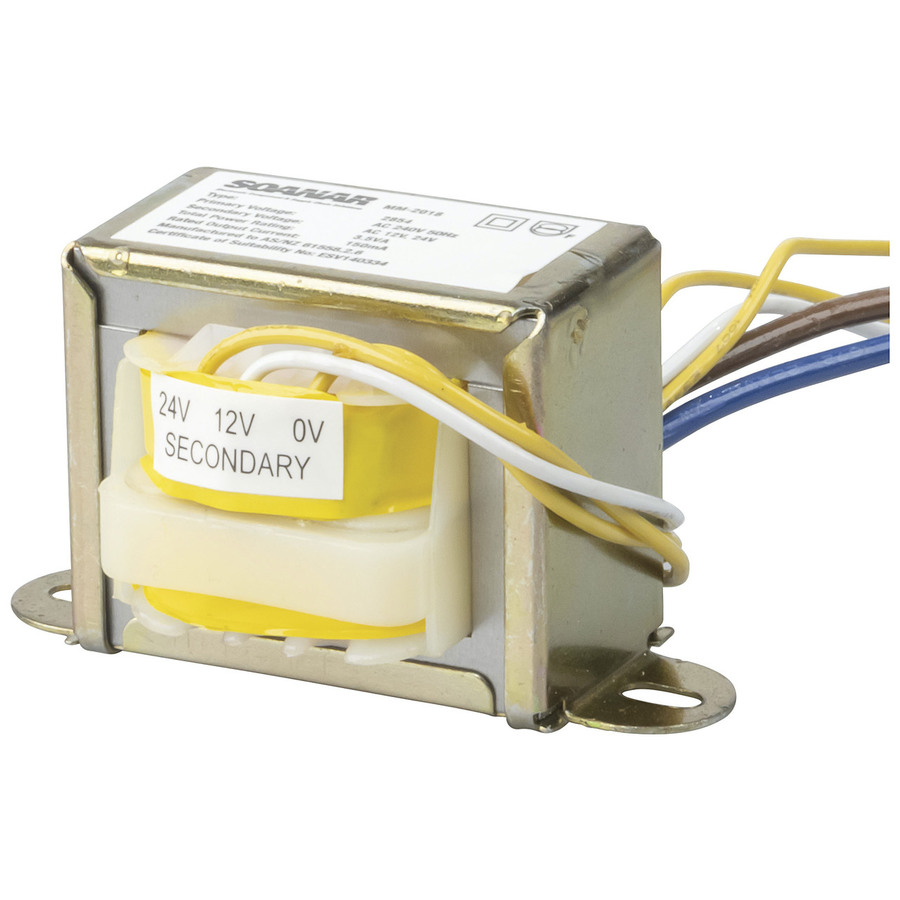

Traditional laminated iron core transformers suitable for new projects, hobby projects or as a  replacement in existing equipment. They have a thermal fuse built into the primary winding for added safety and a wide variety is available to suit your specific needs.

 • Primary Connection: 200mm Fly Leads
 • Conforms to AS/NZ 61558.2.6

    Specifications

    Transformers

    Type of Transformer
    		 Laminated Core

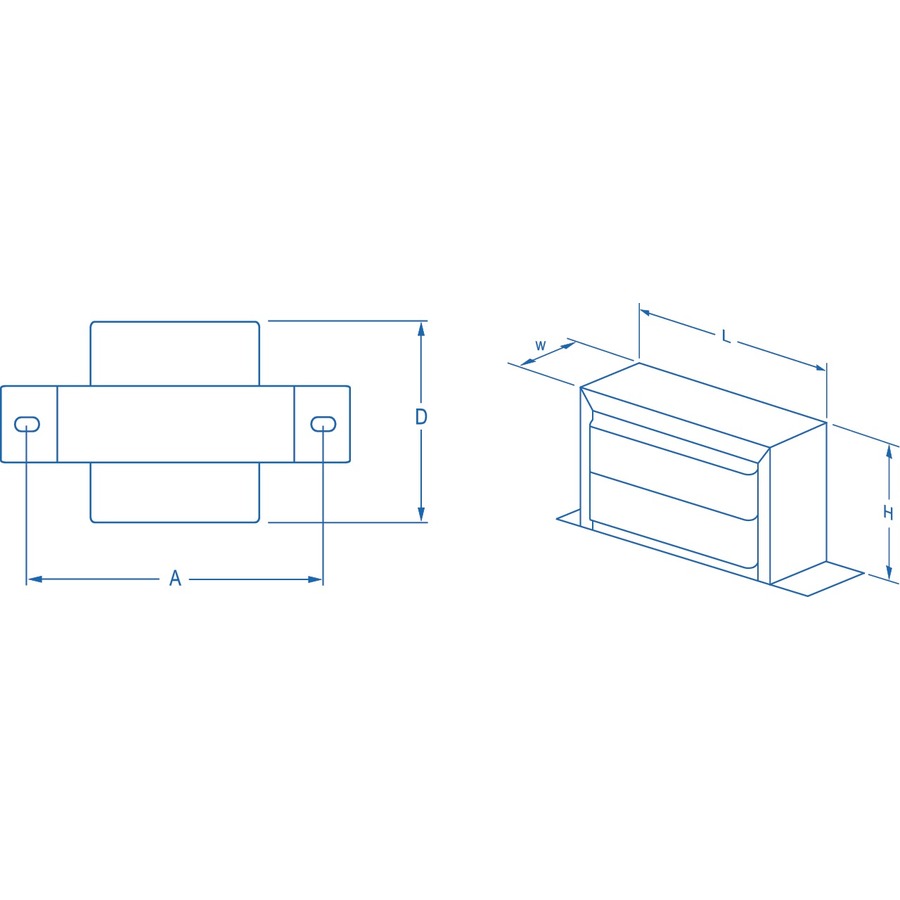

    Core Winding Depth (D)
    		 41mm
    Mount Spacing (A)
    		 53mm
    Primary Winding Connection
    		 Flyleads
    Case Height (H)
    		 36mm
    Temperature Rise Above Ambient at Rated Power
    		 65°C
    Case Length (L)
    		 43mm
    Magnetising Current
    		 40mA
    Core Material
    		 Laminated Iron
    Thermal Fuse
    Secondary Winding Connection
    		 Flyleads
    Secondary Winding Configuration
    		 Centre Tapped
    Regulation
    		 12%
    Case Width (W)
    		 22mm

    Power Conversion and Transformation

    Type of converter or transformer
    		 laminated/toroidal transformer

    Mains powered

    Max Input Power
    		 3.6VA
    Rated for AU Mains

    AC Voltage Rating

    AC Voltage rating
    		 24V, 12V

    AC Current Rating

    AC current rating
    		 150mA

    Product Dimensions

    Weight
    		 230g

    Packaged Dimensions

    Packaged Length
    		 6.7cm
    Packaged Width
    		 5cm
    Packaged Weight
    		 0.231kg
    Packaged Volume
    		 0.15075l
    Packaged Height
    		 4.5cm
