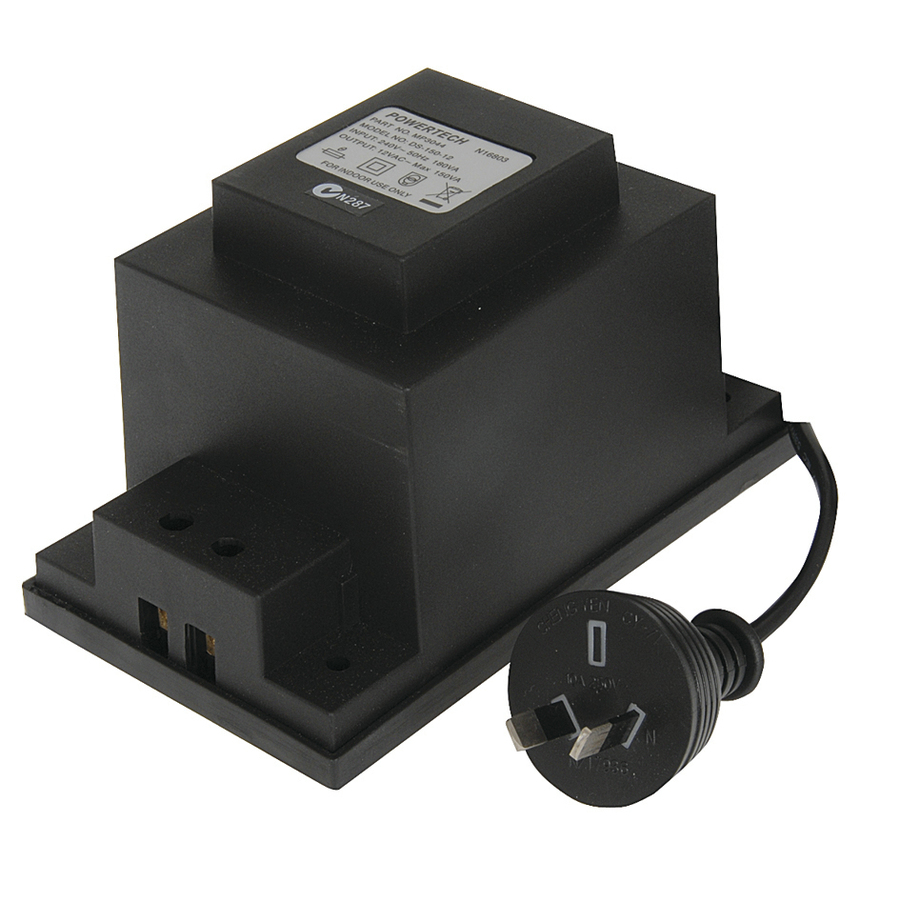

240V to 24VAC 150VA Lighting Transformer
240V to 24VAC 150VA Lighting Transformer

CAT. No. MP3045

240V to 24VAC 150VA Lighting Transformer
product image thumb

240V to 24VAC 150VA Lighting Transformer

$79.95
Delivers 150W at 24VAC.Enough to run 3 x 50W, or 5 x 20W and one 50W, or 7 x 20W, all of these must be 24V rated. - Transformer is not waterproof and must be kept indoors.
Available

Description

1 Year Warranty

Enough to run 3 x 50 Watt, or 5 x 20 Watt and one 50 Watt, or 7 x 20 Watt, all of these must be 24V rated.
- Transformer must be mounted inside.
- Output is via screw terminals.
- Includes 4 holes for easy screw mounting.
- Safety approved number N16803.

Handy Tip Stepdown Transformers

A word on isolation. This means that:The primary (240V) & secondary (115V) are totally electrically isolated (Dieletric isolation). This is the safest way of making a mains voltage conversion. We recommend this type of transformer whenever the application is medical or medically related or where the secondary equipment is to be operated in or near water or high moisture environments. Note the 240V earth is carried through to the 115V socket earth. As a further safety measure we now supply the ISOLATED units with resettable circuit breakers.

    Specifications

    Power Supply Units

    Special Application
    		 Outdoor/Garden Lighting

    AC Current Rating

    AC current rating
    		 6.25A

    AC Voltage Rating

    AC Voltage rating
    		 24V

    Mains powered

    Max Input Power
    		 150W

    Product Dimensions

    Length
    		 145mm
    Height
    		 88mm
    Width
    		 87mm

    Packaged Dimensions

    Packaged Length
    		 21cm
    Packaged Width
    		 14cm
    Packaged Weight
    		 2.876kg
    Packaged Volume
    		 3.381l
    Packaged Height
    		 11.5cm

    Product Availability

    Availability
    		 Stocked item
    Warranty: 12 Months
