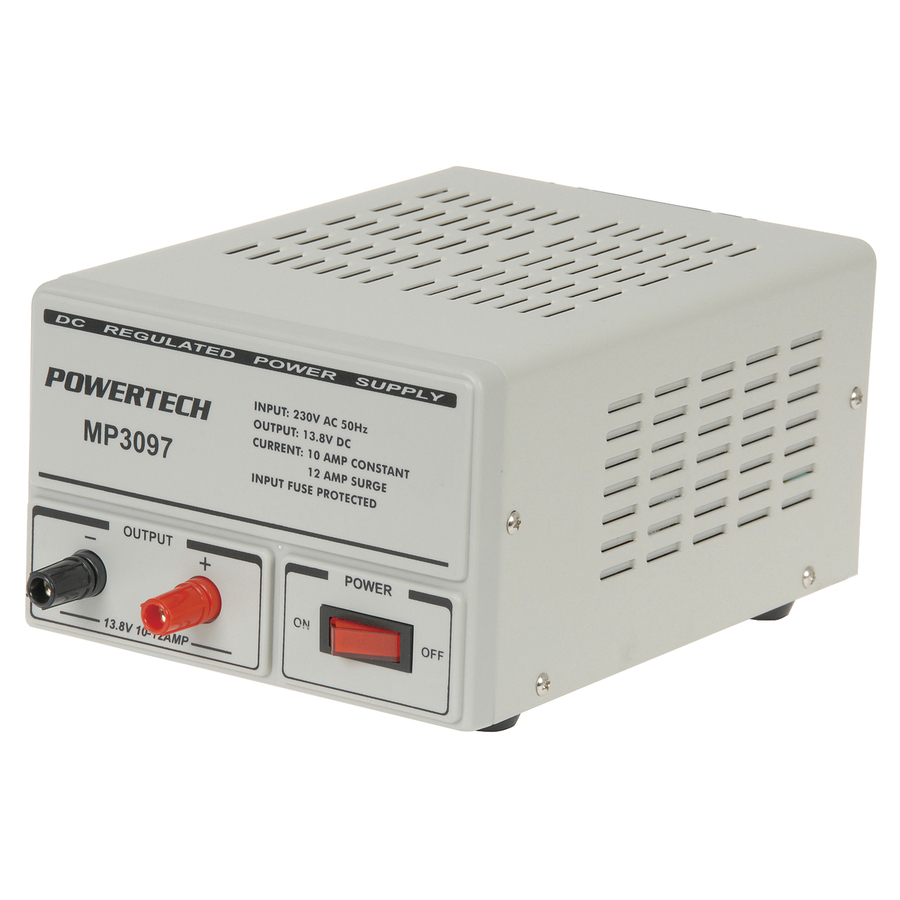

Power Supply 13.8 Volt 10 Amp DC
Power Supply 13.8 Volt 10 Amp DC
Power Supply 13.8 Volt 10 Amp DC

CAT. No. MP3097

Power Supply 13.8 Volt 10 Amp DC
product image thumb
product image thumb

Power Supply 13.8 Volt 10 Amp DC

$189
A cost effective range of 13.8VDC bench/Lab power supplies. These power supplies are available in 3 current capacities of 5 Amps and 20 Amps. Short cicuit protectionon the output and the input is fused.
Available

Description

1 Year Warranty

We have been looking for a cost effective range of 13.8VDC bench/Lab power supplies for some time and are happy that we have finally found them. These good looking power supplies are available in three current capacities of 5 amp, 10 amp, and 20 amp. They use proven technology and are designed to give long service life in workshop situations. The range features short circuit protection on the output and a fused input. Voltage regulation: <5%


    Specifications

    Power Supply Units

    Type of Power Supply
    		 laboratory
    Regulation Type
    		 Regulated
    Ripple Voltage
    		 120mV
    Output Connection
    		 Banana 4mm (standard), Binding Post Terminals
    Number of Outputs
    		 1pc

    AC Voltage Rating

    AC Frequency
    		 50Hz
    AC Voltage rating
    		 230V

    DC Voltage Rating

    DC Voltage
    		 13.8V

    DC Current Rating

    DC Current Surge Rating
    		 12A
    DC current rating
    		 10A

    Mains powered

    Frequency
    		 50Hz
    Mains Voltage Range
    		 230V-50V

    Packaged Dimensions

    Packaged Length
    		 30.2cm
    Packaged Width
    		 18.1cm
    Packaged Weight
    		 4.588kg
    Packaged Volume
    		 7.324708l
    Packaged Height
    		 13.4cm

    Product Availability

    Availability
    		 Stocked item
    Warranty: 12 Months

    Downloads

    MP3097-manualMain.pdf
