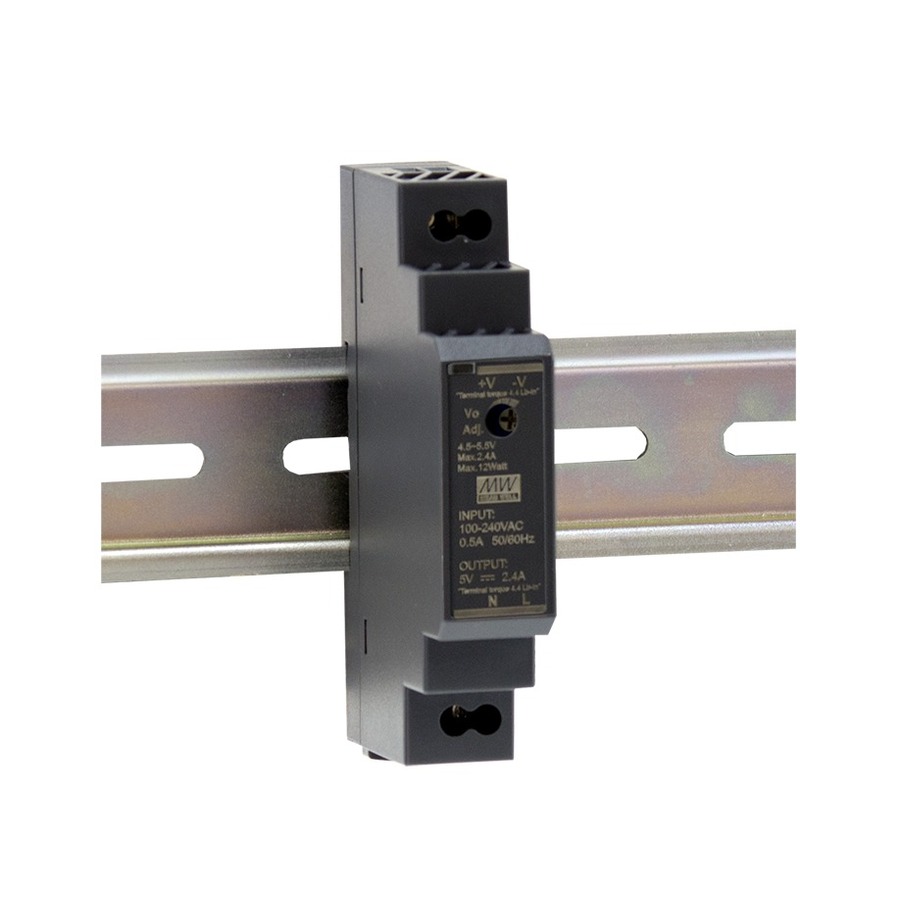

Mean Well HDR DIN Rail power supplies are available in 15W, 30W, or 60W and feature an ultra-slim, step shape plastic housing. The HDR family specially adopts the European Union standard DIN EN43880 and slim design with a height of 90mm and the width are only 1SU to 3SU (17.5mm/35mm/52.5mm). They also feature efficiencies up to 91%, adjustable (±10%) DC output voltage, and a working temperature range of -30ºC to +70ºC. Typical applications include building automation, household control system, industrial control system, factory automation and electro-mechanical apparatus.

Features:
• Ultra slim design with 17.5mm(1SU) / 35mm(2SU) / 52.5mm(3SU) width

• Universal input 85~264VAC

• No load power consumption < 0.3W

• Isolation class II

• Pass LPS (limited power source)

• DC output voltage adjustable

• Short circuit / overload / over voltage protections

• Cooling by free air convection (working temperature: -30~+70°C)

• DIN rail TS-35/7.5 or 15 mountable

• LED indicator for power on
