CAT. No. MP3748

Remote Status Display with cable for Solar Regulator
product image thumb
product image thumb
product image thumb
product image thumb

Remote Status Display with cable for Solar Regulator

$79.95

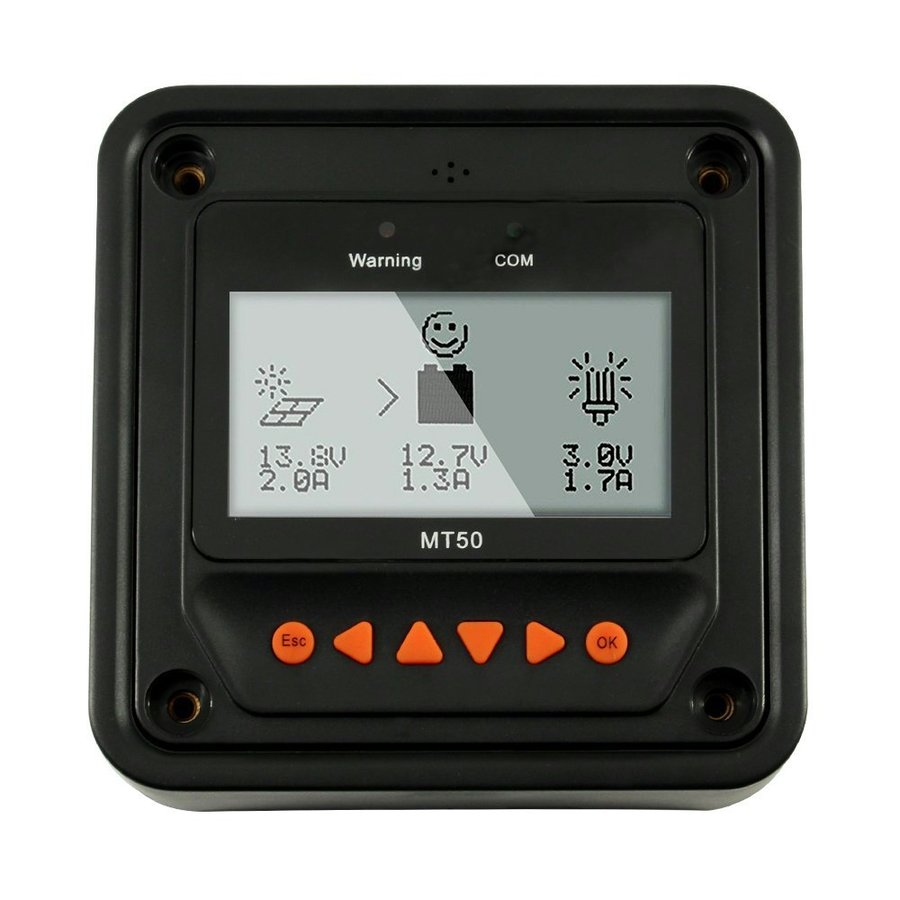

The remote Monitor provides an informative, user friendly display for compatible PowerTech solar controllers letting you easily monitor your system.

Out of Stock

Description

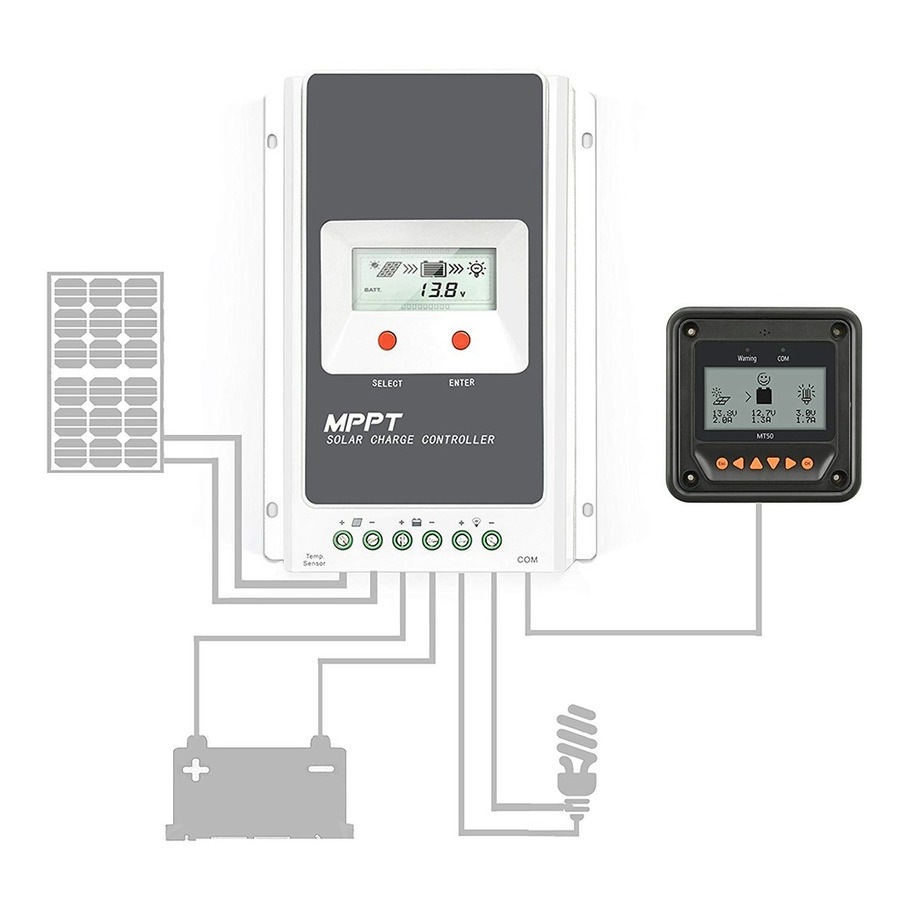

This remote meter connects to the RS485 port on selected Powertech Solar Charge Controllers to conveniently display controller status away from the main module. The display also allows you to remote control the controller unit which ensures the most efficient charging of your battery at all times.

Compatible with:
• MP3741 20A 12/24V SLA/Lithium MPPT Solar Charge Controller
• MP3749 60A 12/24V SLA/Lithium MPPT Solar Charge Controller
• MP3764 Flush Mount 30A 12/24V SLA/Lithium PWM Solar Charge Controller
• MP3768 30A 12/24V SLA/Lithium MPPT Solar Charge Controller


NOTE: This is a special order line which is not stocked in all retail stores but can be ordered. Please call your local store to check if they have stock on hand.


    Specifications

    DC Current Rating


    DC current rating
    65mA

    Operating Temperature


    Operating Temperature
    -20°C-70°C

    Internal or Sub-part Dimensions


    Height
    98mm, 114mm
    Width
    98mm
    Dimension details
    Faceplate Dimensions, Frame Dimensions

    Product Dimensions


    Height
    98mm, 114mm
    Dimension details
    Faceplate Dimensions, Frame Dimensions
    Depth
    114mm
    Weight
    230g

    Product Availability


    Availability
    Special Order

    Packaged Dimensions


    Packaged Length
    13cm
    Packaged Width
    13cm
    Packaged Weight
    0.35kg
    Packaged Volume
    1.352l
    Packaged Height
    8cm
