CAT. No. MP5224

Line InterActive UPS - 600VA
product image thumb
product image thumb
product image thumb
product image thumb
product image thumb
product image thumb

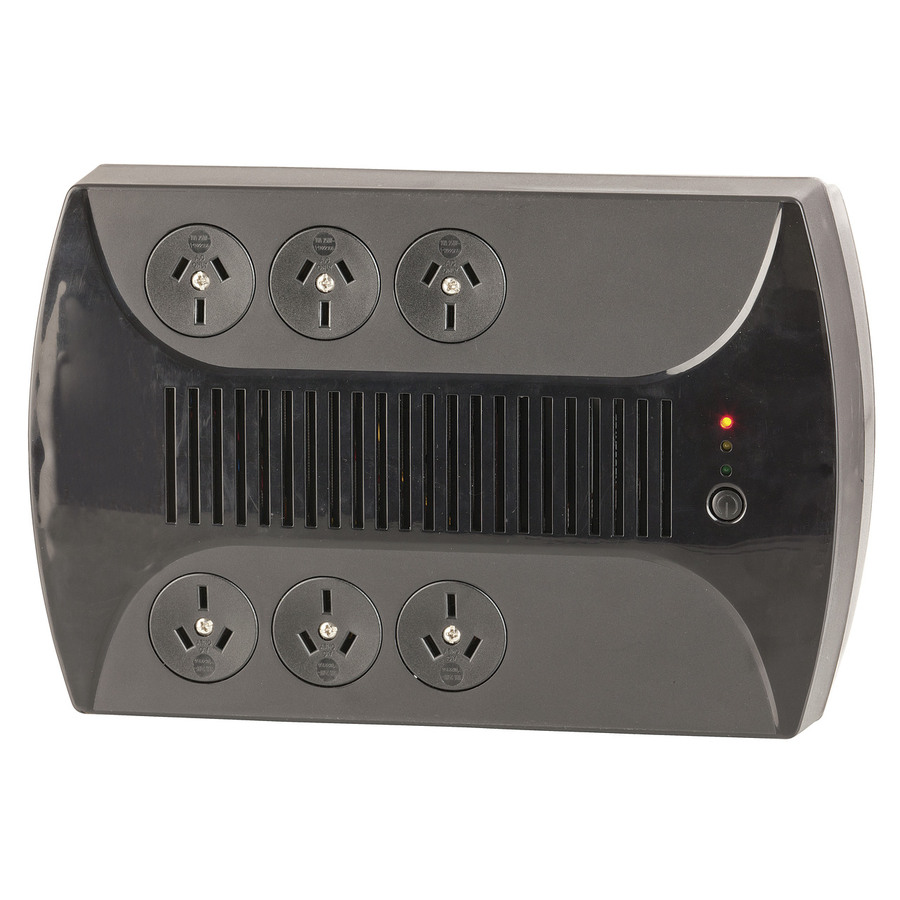

Line InterActive UPS - 600VA

$199
Keep your devices running when the grid goes down or give yourself enough time to power down safely.

Out of Stock

Description

1 Year Warranty
240V Mains Power

Keep your devices running when the grid goes down or give yourself enough time to power down safely. This self contained UPS is ideal for the home PC, point of sale machines, or workstations and peripherals. Features include intelligent CPU control, highly synchronous transfer (less than 6ms), automatic battery charging in UPS off mode, surge protection, voltage overload/low voltage protection and much more. There is a USB socket for connecting to your PC and software is provided to enable automated shut down, as well as RJ12 sockets for telephone protection.

Features:
• Noise: <45db (at 1 metre)
• Power outlets: 3 UPS, 3 Mains (all surge protected)

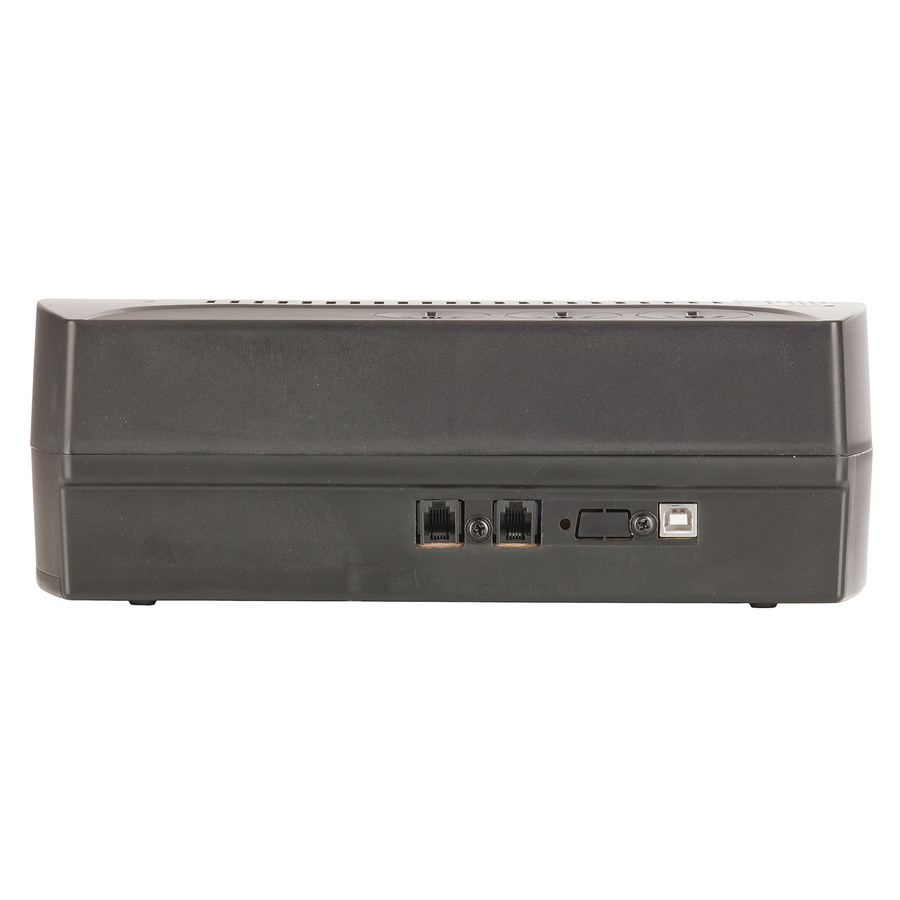

• RJ12 input & Output: 1
• Note: Must be powered from the mains or a pure sinewave source (inverter,etc)

For all software compatibility check the installation disk.


Software Compatibility: 32-bit 64-bit
? ?
? ?
? ?
? ?
? ?
? ?
?
?
?

    Specifications

    UPS


    Backup Time - Standard Load (~200W)
    4.5min
    Backup Time - Moderate Load (~140W)
    11min
    Data/Phone Connection
    RJ12
    Nominal Backup Time
    31min
    Recharge Time
    8hr
    Number of Batteries
    1pc
    Switch Over Time
    10ms
    Line Type
    interActive
    Recommended use
    Home PC
    Volt Amps
    600VA
    Computer Interface
    USB 2.0
    Watts
    300W
    Backup Time - Light Load (~70W)
    31min
    Output Waveform
    modified sine wave
    Phone/Data Filter

    Mains powered


    Mains Voltage Range
    100V-240V
    Rated for US Mains
    Rated for AU Mains

    Product Dimensions


    Height
    95mm
    Width
    280mm
    Depth
    185mm

    Packaged Dimensions


    Packaged Length
    33.8cm
    Packaged Width
    24.4cm
    Packaged Weight
    5.072kg
    Packaged Volume
    12.700688l
    Packaged Height
    15.4cm

    Battery Packs and Batteries


    Battery Chemical Composition
    Sealed Lead Acid (SLA)
    Battery usage
    Rechargeable
    Amp Hour Rating
    7Ah

    Product Availability


    Availability
    Stocked item
    Warranty: 12 Months
