3 Pin MaleMale Cannon type Adaptor
3 Pin MaleMale Cannon type Adaptor

CAT. No. PA3684

3 Pin MaleMale Cannon type Adaptor
product image thumb

3 Pin MaleMale Cannon type Adaptor

$21.95
Join two 3 pin Cannon type sockets together with this adapter.
Available

Description

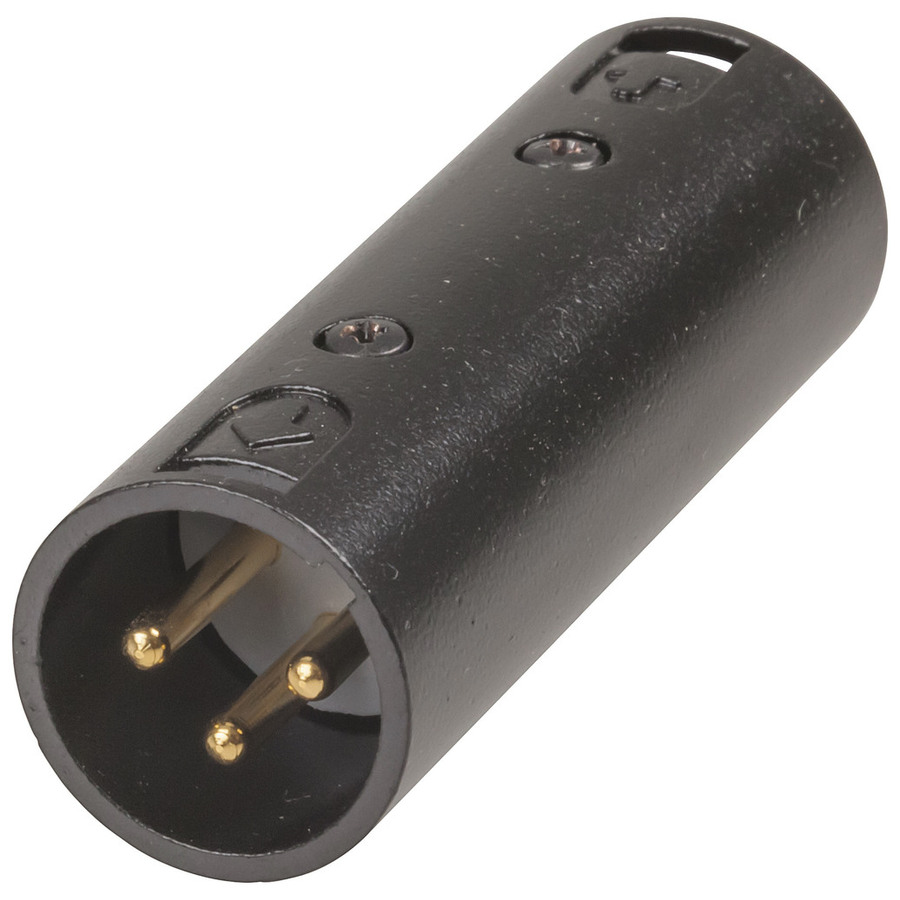

ADAPTOR - 3 PIN MALE/MALE

Handy Tip XLR Wiring

The Standard is defined by the Audio Engineering Society inAES14-1992(r1998)
Pin 1: Shield/Ground
Pin 2: Hot/in Phase / +
Pin 3: Cold / Out of Phase / -
To create an unbalanced connection, pin 1 & pin 3 are connected to ground & pin 2 carries the signal. Note that there is a lot of equipment (particularly in the US) that has pin 2 & pin 3designations reversed (i.e. 3 hot, 2 cold).Manufacturers are adopting the Standard on all new equipment.

    Specifications

    Packaged Dimensions

    Packaged Length
    		 6cm
    Packaged Width
    		 2cm
    Packaged Weight
    		 0.042kg
    Packaged Volume
    		 0.024l
    Packaged Height
    		 2cm

    AV Connection Adaptors

    Signal Type
    		 Audio
    Input Quantity
    		 1pc
    Input Connection
    		 Plug
    Casing Material
    		 Plastic
    Input Type
    		 XLR
    Output Type
    		 XLR
    Output Connection
    		 Plug
    Output Quantity
    		 1pc

    Product Availability

    Availability
    		 Stocked item
