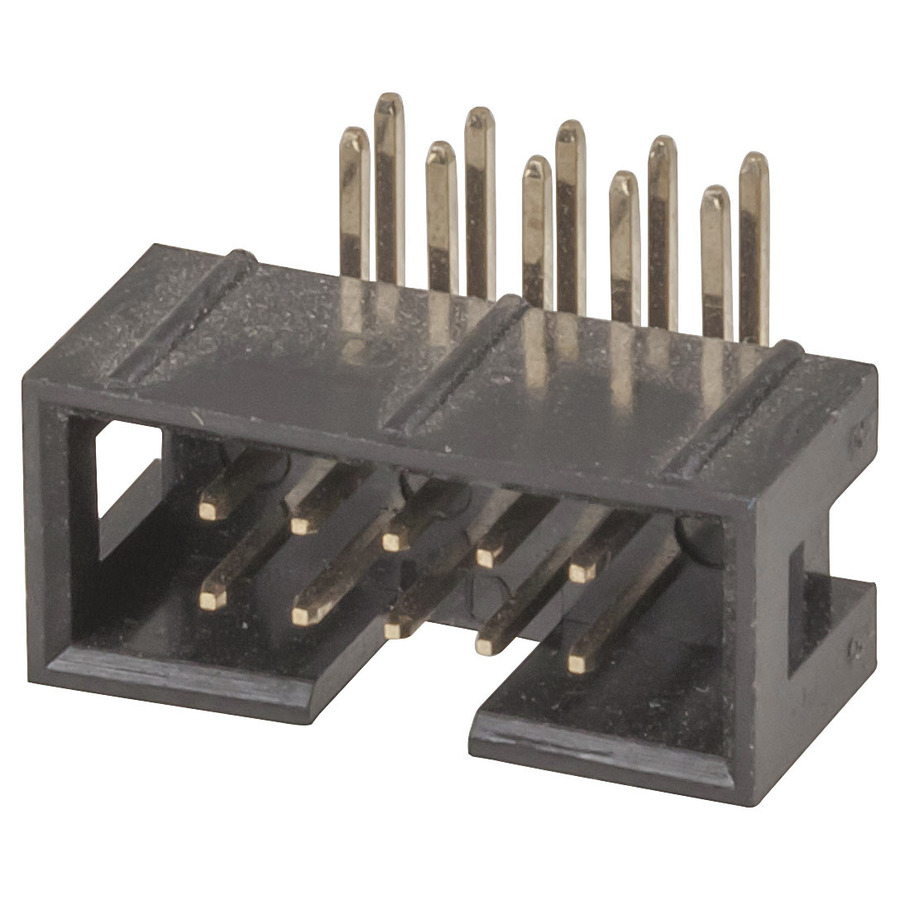

10 Pin IDC Right Angle Header
10 Pin IDC Right Angle Header

CAT. No. PP1118

10 Pin IDC Right Angle Header
product image thumb

10 Pin IDC Right Angle Header

$1.25
From our range of power, audio, data and telecommunication adapters and terminating connectors.
Available

Description

Horizontal facing 10 pin IDC plug, suitable for PCB mounting.

Dimensions(mm)

PINS    A     B     C

10      20    18   10


    Specifications

    Header Connections

    Type
    		 Double Row Header
    Right Angle Mount
    Device
    		 Plug
    Pin Spacing
    		 2.54mm (0.1")
    Number of Pins
    		 10pc
    Attachment Method
    		 IDC

    Packaged Dimensions

    Packaged Length
    		 1.8cm
    Packaged Width
    		 2cm
    Packaged Weight
    		 0.002kg
    Packaged Volume
    		 0.00468l
    Packaged Height
    		 1.3cm
