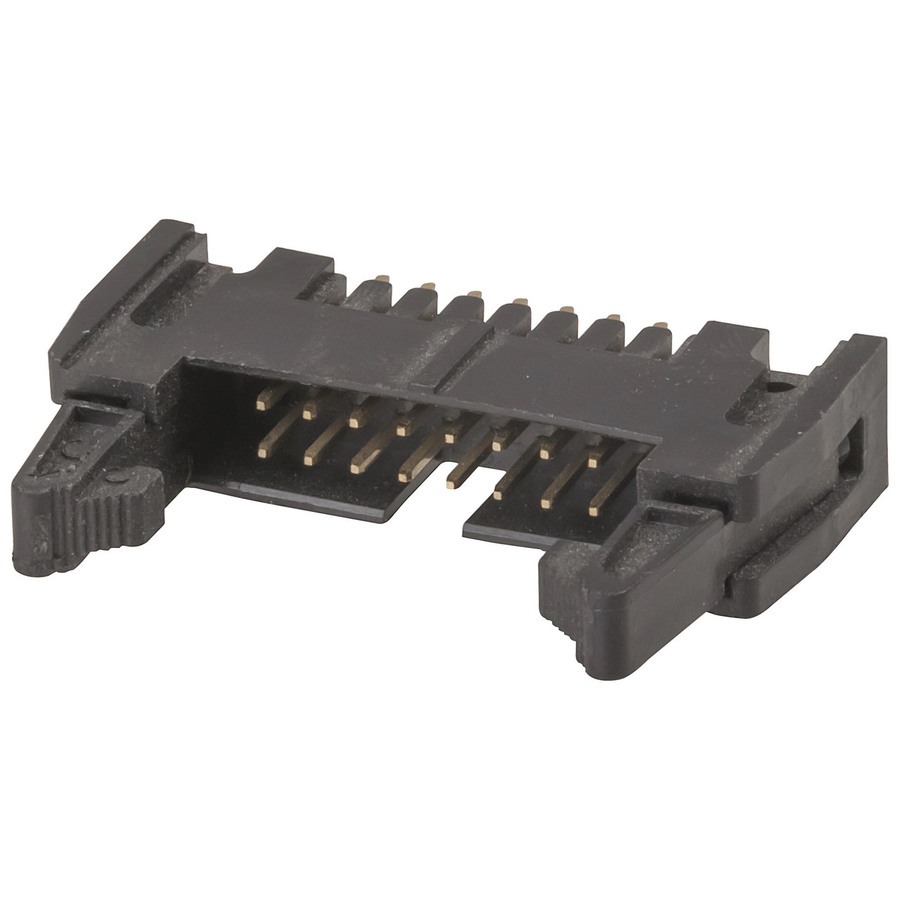

16 Pin IDC Locking Vertical Header
16 Pin IDC Locking Vertical Header

CAT. No. PP1138

16 Pin IDC Locking Vertical Header
product image thumb

16 Pin IDC Locking Vertical Header

$1.95
From our range of power, audio, data and telecommunication adapters and terminating connectors.
Available

Description

Vertical facing 16 pin IDC plug, suitable for PCB mounting. Includes locking mechanism.

Dimensions (mm)

PINS    A     B     C

16     39.5  18 29.5  25.5


    Specifications

    Header Connections

    Type
    		 Double Row Header
    Device
    		 Plug
    Pin Spacing
    		 2.54mm (0.1")
    Number of Pins
    		 16pc
    Pin Material
    		 Gold Plated
    Attachment Method
    		 IDC
    header locking

    Product Mounting

    Mounting Method
    		 PCB

    Packaged Dimensions

    Packaged Length
    		 3cm
    Packaged Width
    		 4cm
    Packaged Weight
    		 0.005kg
    Packaged Volume
    		 0.0096l
    Packaged Height
    		 0.8cm

    Product Availability

    Availability
    		 Stocked item
