26 Pin IDC Locking Vertical Header
26 Pin IDC Locking Vertical Header

CAT. No. PP1142

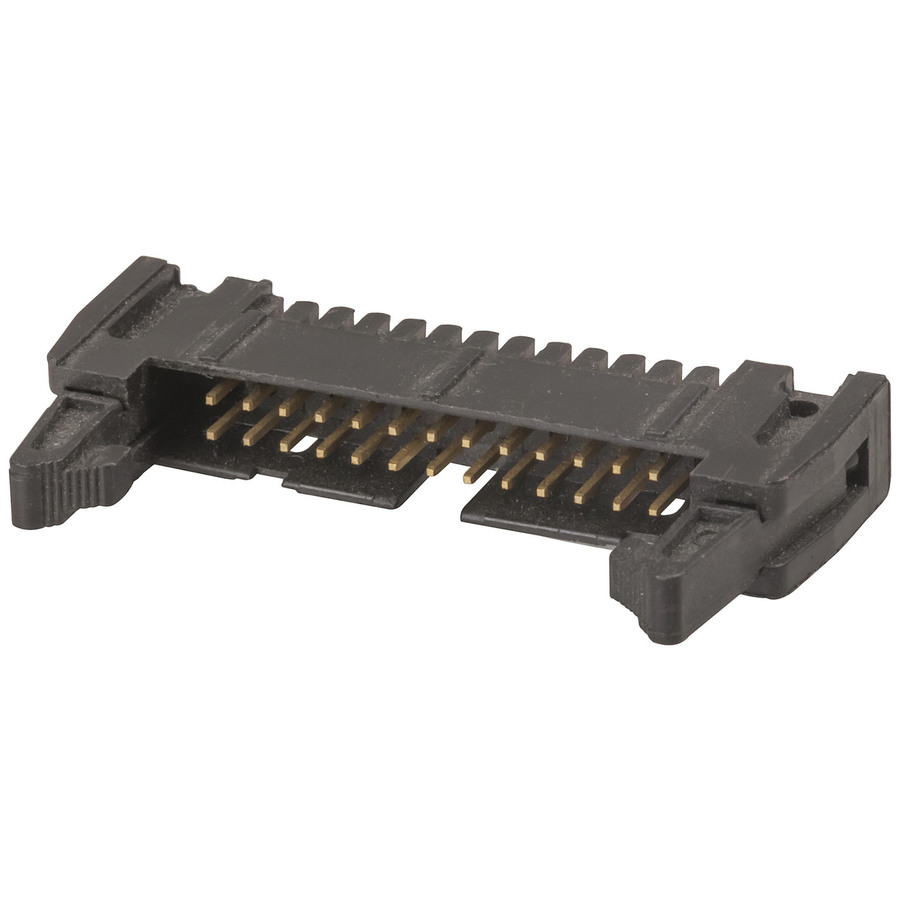

26 Pin IDC Locking Vertical Header
product image thumb

26 Pin IDC Locking Vertical Header

$3.99
From our range of power, audio, data and telecommunication adapters and terminating connectors.
Available

Description

Vertical facing 26 pin IDC plug, suitable for PCB mounting. Includes locking mechanism.

Dimentions (mm)  PINS    A     B     C    D

         PP-1142       26     52   30.5  42  38


    Specifications

    Header Connections

    Type
    		 Double Row Header
    Device
    		 Plug
    Pin Spacing
    		 2.54mm (0.1")
    Number of Pins
    		 26pc
    Pin Material
    		 Gold Plated
    Attachment Method
    		 IDC
    header locking

    Product Mounting

    Mounting Method
    		 PCB

    Packaged Dimensions

    Packaged Length
    		 5.5cm
    Packaged Width
    		 0.8cm
    Packaged Weight
    		 0.007kg
    Packaged Volume
    		 0.0132l
    Packaged Height
    		 3cm

    Product Availability

    Availability
    		 Stocked item
