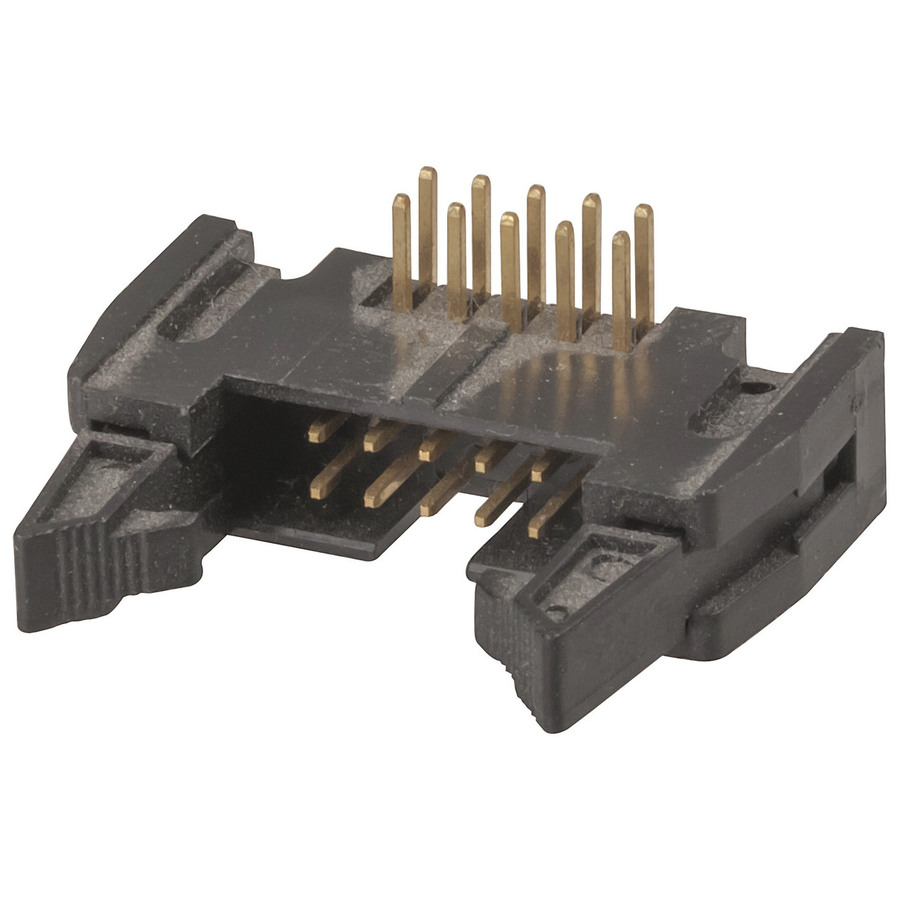

10 Pin IDC Locking Right Angle Header
10 Pin IDC Locking Right Angle Header

CAT. No. PP1150

10 Pin IDC Locking Right Angle Header
product image thumb

10 Pin IDC Locking Right Angle Header

$1.45
Locking right angle 10 pin IDC plug

Out of Stock

Description

Horizontal facing 10 pin IDC plug, suitable for PCB mounting. Includes locking mechanism.

Dimentions (mm)  PINS    A     B     C     D

         PP-1150       10      32    10   22    18


    Specifications

    Header Connections

    Type
    		 Double Row Header
    Right Angle Mount
    Device
    		 Plug
    Pin Spacing
    		 2.54mm (0.1")
    Number of Pins
    		 10pc
    Pin Material
    		 Gold Plated
    Attachment Method
    		 Solder Tag
    header locking

    Packaged Dimensions

    Packaged Length
    		 3cm
    Packaged Width
    		 2.5cm
    Packaged Weight
    		 0.004kg
    Packaged Volume
    		 0.0075l
    Packaged Height
    		 1cm

    Product Availability

    Availability
    		 Stocked item
