2 Pin MULTI Pin Plug Socket
2 Pin MULTI Pin Plug Socket

CAT. No. PP2020

2 Pin MULTI Pin Plug Socket
product image thumb

2 Pin MULTI Pin Plug Socket

$4.95

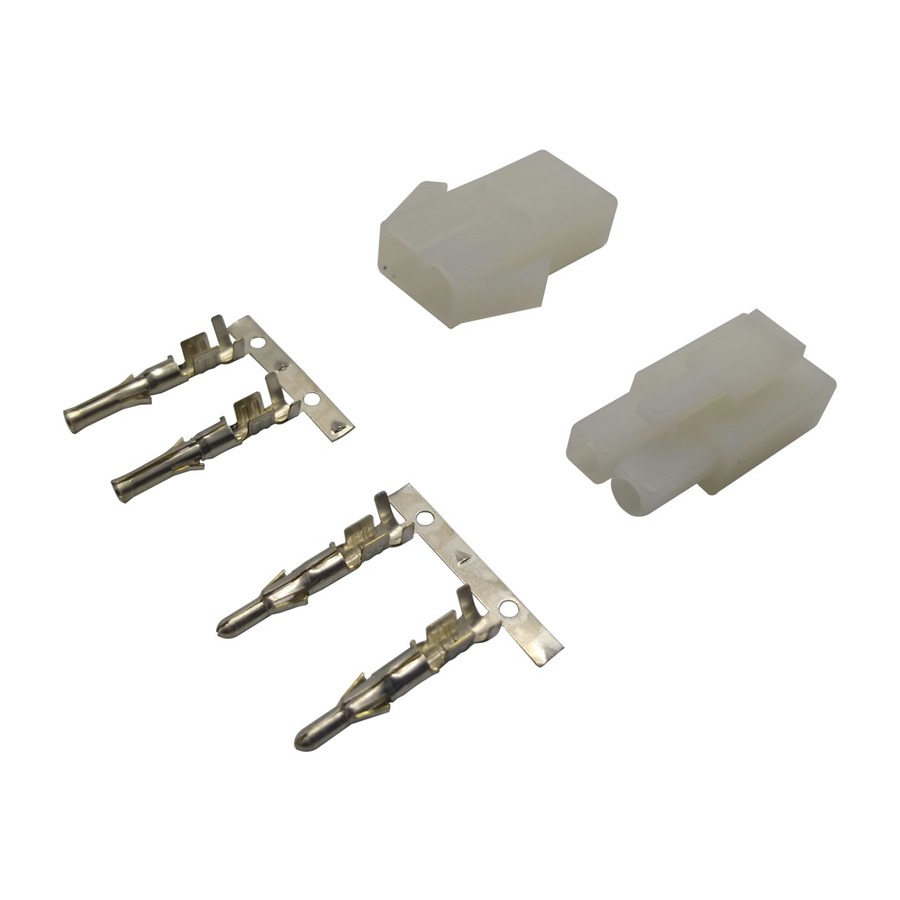

Nylon Line Plug and Socket Assembly. Included in the assembly along with pins of both gender.- 2 PIN... These connectors are similar to the Molex 250 series

Out of Stock

Description

Nylon Line Plug and Socket Assembly. Included in the assembly along with pins of both gender.- 2 PIN

    Specifications

    Plug or Socket

    Contacts / Pins
    		 2pc
    Device
    		 Plug and Socket Set
    Contact Material
    		 Nickel Plated Copper
    Plug or Socket Type
    		 Molex
    Attachment Method
    		 Crimp
    Case Material
    		 Nylon
    Colour Coded
    		 White

    Product Mounting

    Mounting Method
    		 Line

    AC Voltage Rating

    AC Voltage rating
    		 300V

    AC Current Rating

    AC current rating
    		 15A

    DC Voltage Rating

    DC Voltage
    		 300V

    DC Current Rating

    DC current rating
    		 15A

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 14cm
    Packaged Width
    		 8cm
    Packaged Weight
    		 0.009kg
    Packaged Volume
    		 0.168l
    Packaged Height
    		 1.5cm
