CAT. No. PP2120

3-Way Cigarette Lighter with USB Power
product image thumb
product image thumb
product image thumb
product image thumb

3-Way Cigarette Lighter with USB Power

$39.95
Power up to 7 devices across two different connection types plus display your voltage reading in one tidy converter.
Available

Description

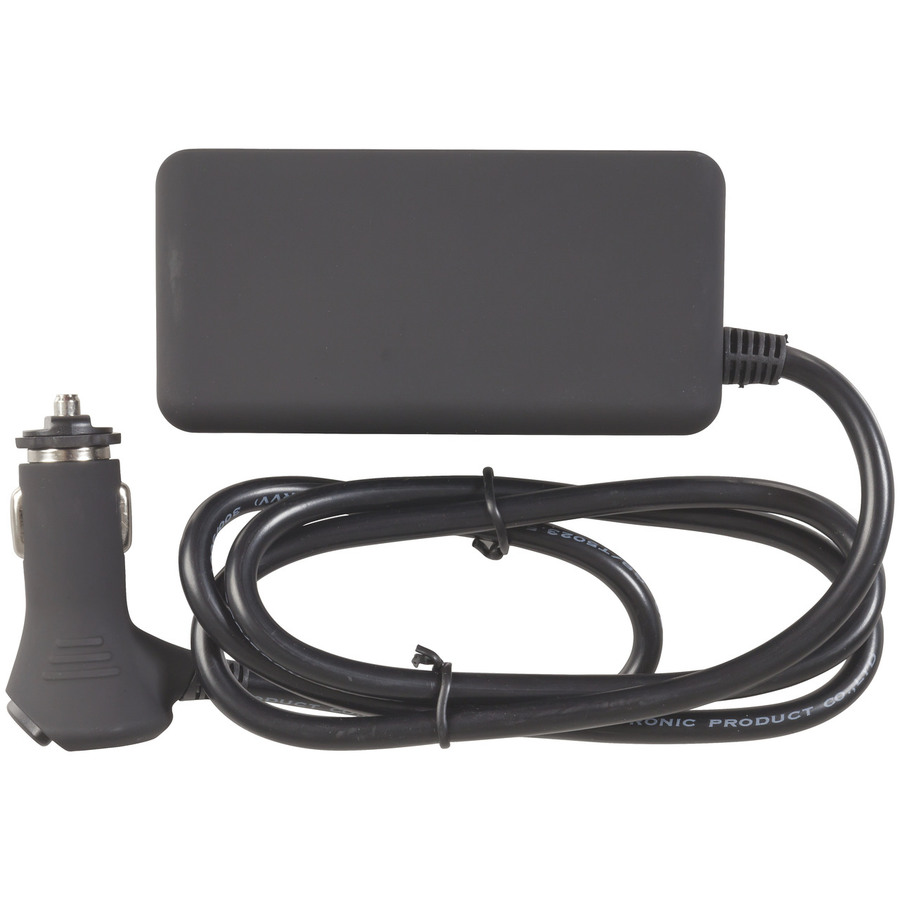

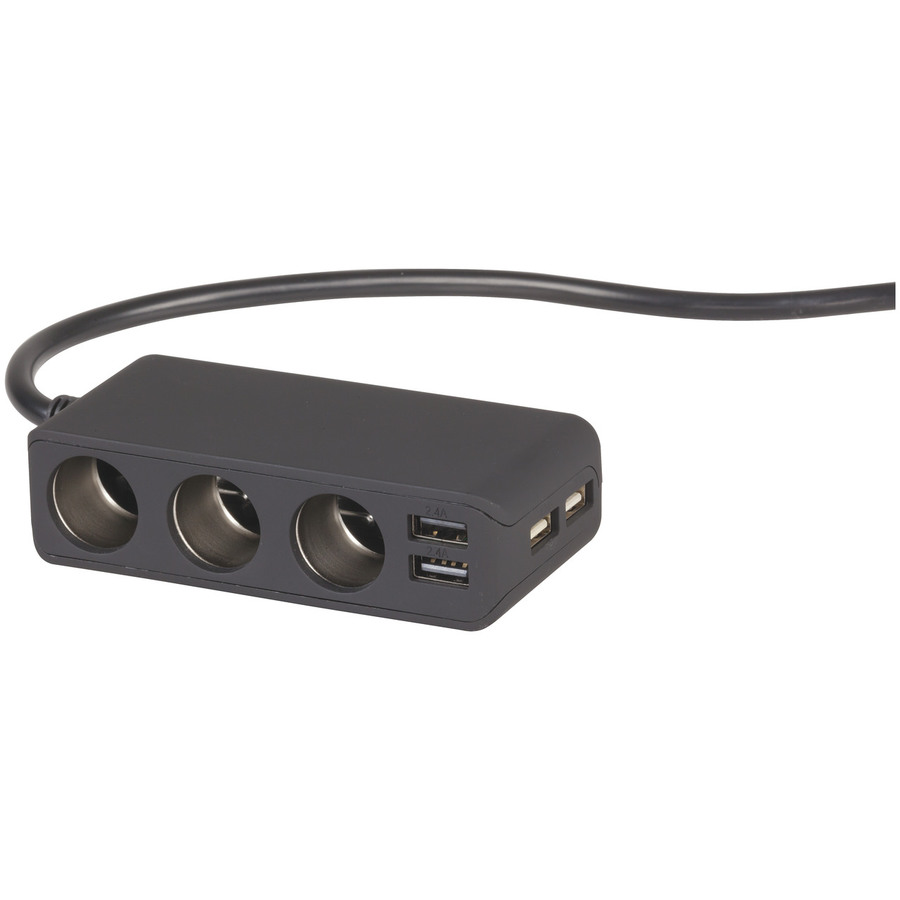

This is the master of in-vehicle power distribution. Take what is probably the only cigarette lighter socket in your dash, and power up to 7 devices! You get three cigarette lighter sockets, two high-current 2.4A USB charging sockets, and two standard 1A USB charging sockets. Of course, a 100W maximum total applies (since that’s the maximum rating of the one in your dash). The three cigarette lighter sockets aren’t voltage regulated, so they’ll output the same voltage as your vehicle, however the USB charging ports are regulated to 5VDC regardless of the input. A thermal cutout will kick in if the the adaptor draws more than 5 amps continuously. Connecting cable is 1m long.

Features:
- Simultaneous Charging

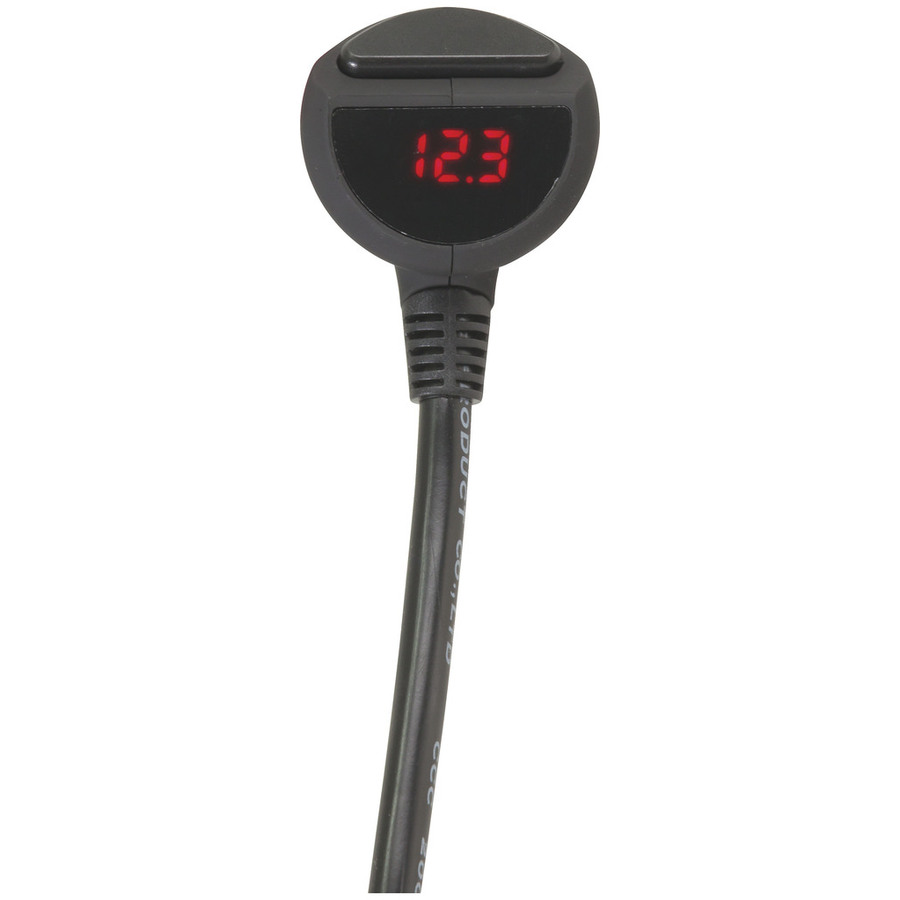

- Voltage Warning
- Overcharge and Overcurrent Safety Protection
- USB Output: 5V, 6.8A Max. (2.4A + 2.4A + 1A + 1A)
- Onboard Fuse: 8A


    Specifications

    Product Dimensions


    Height
    31mm
    Width
    110mm
    Depth
    55mm
    Weight
    0.032kg

    Packaged Dimensions


    Packaged Length
    20.2cm
    Packaged Width
    11.6cm
    Packaged Weight
    0.22kg
    Packaged Volume
    1.077872l
    Packaged Height
    4.6cm

    DC Voltage Rating


    DC Voltage
    12V, 24V

    DC Current Rating


    DC current rating
    10A

    Low Voltage Power / Vehicle Adaptors


    Input Connection
    Plug
    Input Type
    Cigarette Lighter
    Length
    1m
    Output Type
    Cigarette Lighter
    Output Connection
    Socket
    Output Quantity
    3pc

    Vehicle or Vessel Powered


    Current Draw
    6.8A

    Product Availability


    Availability
    Stocked item
