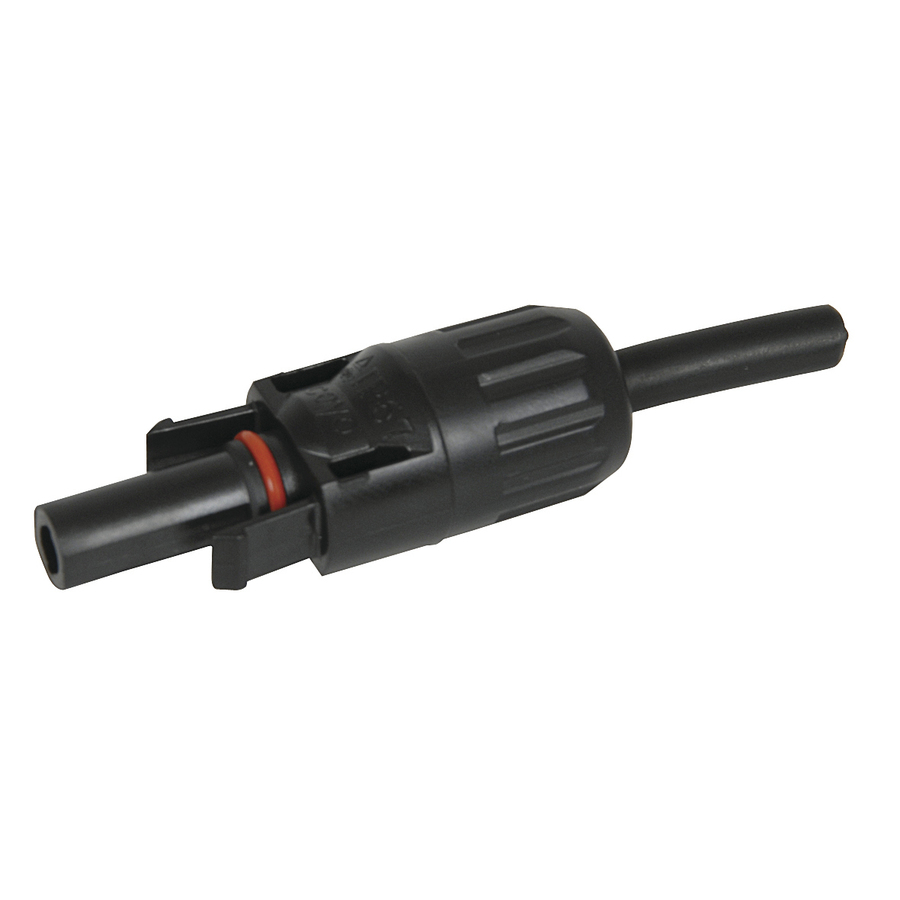

These photovoltaic (PV) system connectors are ideally suited to harsh installations such as solar panel arrays and other permanent outdoor applications. When matched with our solar power cables WH-3120 and WH-3122, you can leave your cabling out in the open with the knowledge that you will never have a bad connection or an oxidised power cable. Both panel mounting and in-line connectors are available to suit a wide range of system applications:
Specifications.
• Rated current: 30A at 70°C, 25A at 85°C
• Contact resistance: <5 milliohms
• Temperature range: -40 - 90°C
• TUV certification: 2 PfG 1161/01.06

Assembly Tool: TH-1930
Suitable crimping tools: TH-1834 or TH-1950
