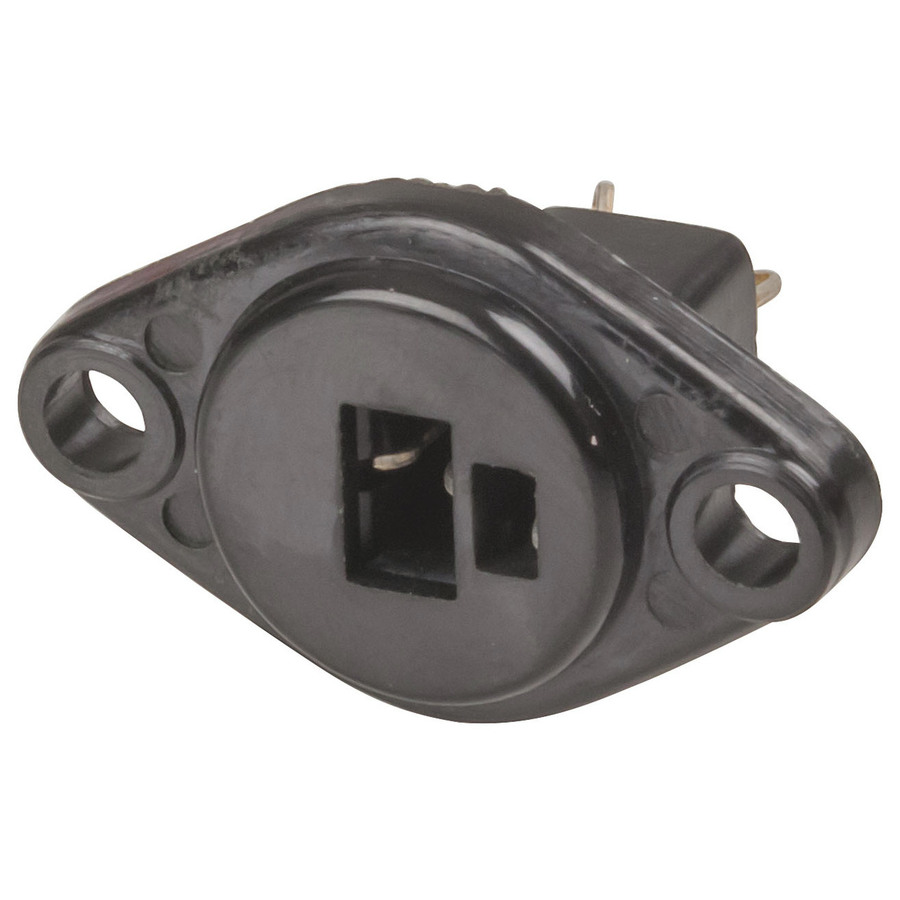

2 Pin DIN PANEL Socket
2 Pin DIN PANEL Socket
2 Pin DIN PANEL Socket

CAT. No. PS0340

2 Pin DIN PANEL Socket
product image thumb
product image thumb

2 Pin DIN PANEL Socket

$1.85
From our range of audio, data and telecommunication terminating connectors.
Available

Description

2 PIN PANEL SOCKET

Handy Tip DIN Plugs and Sockets

Originally a German standard, these connectors are available in versions from 2 to 13 pins. Once widely used, these are now seen less on AV equipment. The 2 pin version is used for some loudspeakers and 5 pin version is still used for connecting MIDI electronic musical instruments &older PC keyboards.

    Specifications

    Plug or Socket

    Contacts / Pins
    		 2pc
    Device
    		 Socket
    Pack Quantity
    		 1pc
    Plug or Socket Type
    		 DIN 2 Pin
    Attachment Method
    		 Solder Tag
    Case Material
    		 Nickel Plated Copper

    Packaged Dimensions

    Packaged Length
    		 2.7cm
    Packaged Width
    		 1.7cm
    Packaged Weight
    		 0.003kg
    Packaged Volume
    		 0.00918l
    Packaged Height
    		 2cm

    Product Availability

    Availability
    		 Stocked item
